(888) 312-8812 Login SignupDELPHI FE0226 Electric Fuel Pump
$23099
Limited availability at this price!
1 Day Lead Time
Get it by Monday, Jun 22

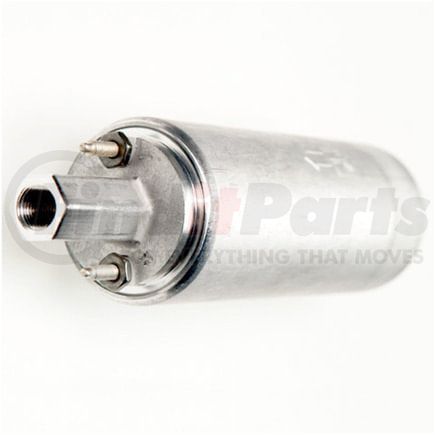

DELPHI FE0226 Part Description
Manufacturer
Product Description
Electric Fuel Pump
Features & Benefits
- Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
- Delphi pumps are designed to operate under extreme temperatures with quick engine starts
- Improved pump performance as a result of Delphi's innovative design and durability
- Restores fast pressure performance and system integrity, translating to better pumping through less energy
- Part is validated, tested and matched to the right vehicle application
- Lower amperage draws less load on vehicle's electrical system
- Always be sure to check and clean fuel tank to avoid unnecessary returns
- Always replace the fuel strainer when doing a fuel pump repair
DELPHI FE0226 Specifications
Product Attributes
| System Pressure | 36 psi |
| Position(s) | In-Line |
| Package Contents | Electric Fuel Pump, Insulating Sleeve, (2) Nuts, (2) Seals, (2) Terminal Rings, (3) Threaded Posts, (2) Washers, Instruction Sheet |
| Item Grade | Standard Replacement |
| Fuel Sending Unit Included | No |
| Negative Ground | No |
| Length | 163.0 MM |
| Fuel Type | Gas |
| Internal Or External | External |
| Regulator Included | No |
| Maximum Pressure | 100.0 PS |
| Terminal Type | Threaded |
| Mounting Hardware Included | Yes |
| Wire Quantity | 0 |
| Gasket Or Seal Included | No |
| Terminal Quantity | 2 |
| Seal And Lock Ring Included | No |
| Connector Gender | Male |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Strainer Included | No |
| Inlet Type | Female Threaded |
| Outlet Type | Female Threaded |
| Outlet Quantity | 1 |
| Inlet Fitting Thread Size | M10 - 1.0 |
| Outlet Fitting Thread Size | M10 - 1.0 |
| Pump Design | Rollevane |
| Mounting Bracket Included | No |
| Voltage | 12.0 2H |
| Average Current Draw | 7.0 68 |
| Average Flow Rating | 37.0 GPH |
| Universal Or Specific Fit | Specific |
| Grade Type | Premium |
| Connector Shape | Terminals |
| Minimum Pressure | 36 PS |
| Maximum Amperage Draw | 7.0 68 |
| Outlet Thread Size | M12 - 1.5 |
| Inlet Thread Size | M10 - 1.0 |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Harmonized Tariff Code (HTS) | 8413309030 |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | CN |
| Warranty Special | Limited Lifetime |
| UPC | 00689604034941 |
| VMRS Code | 044003259 |
| UNSPSC | 40151532 |
DELPHI FE0226 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | EP217 |
| Airtex | E8030, E8149, E8171, E8204, E8309, E8343, E7334, E8002, E8307, E8428 |
| Alfa Romeo | 11354040210, 11646010210, 11646040210, 605183220, 60521992 |
| AutoZone | CFE0226 |
| BorgWarner | EP7278 |
| Bosch | 69412, 69458, 69459, 69467, 69471, 69473, 69483, 69573, 69587, 69593, 69594 |
| Carter | P60422, P72025, P72046, P72100, P72104, P72171, P72172, P72018, P72024, P72039, P72102, P72117 |
| Citroen | 91538807 |
| Datsun/Nissan | 77002-67774 |
| EVO Driveline | AFS0319P |
| FACET FUEL PUMPS | FEP2157 |
| Fiat | 60518322, 7554136, 7597693 |
| Import Direct | E16057, E16133, E16350, E16409, E18501, E22030 |
| N/A | 721565500, 605219920, 7700267774, 145070, 92860810401, 92860810402, 94460810200, 94460810201, 94460810203, 94460810204, 94460810205, 94460810206, 191906091C, 928 608 104 06, 928 608 104 07, P72179, USEP8149, E18523, SP1337, 4020141, 4020166, 4020172 |
| Peugeot | 9151819080, 9153880780, 1450.70 |
| Pierburg distributed by Hella | 7.21565.50.0 |
| Porsche | 928 608 104 01, 928 608 104 02, 944 608 102 00, 944 608 102 01, 944 608 102 03, 944 608 102 04, 944 608 102 05, 944 608 102 06 |
| Precision Fuel | E16057, E16262 |
| SPECTRA PREMIUM | SP1292, SP1337 |
| Spectra Premium | SP1207, SP1246, SP1263, SP1284, SP1336, SP1339 |
| VEMO | V10090831, V45090006 |
| Volkswagen | 191 906 091 C |
| Volvo | 1306932, 1336679, 285211, 9142044, 9142045 |
DELPHI FE0226 Fits Vehicles
- Volkswagen Golf (1986)
- Peugeot 505 (1985-1989)
- Alfa Romeo GTV-6 (1985-1986)
- Alfa Romeo Spider (1985-1989)
- Alfa Romeo Milano (1987-1989)
- Porsche 928 (1981-1988)
- Porsche 924 (1987-1988)
- Porsche 968 (1992-1995)
- Porsche 944 (1983-1991)
- Porsche 911 (1984-1989)
