CHAMPION part description

Product Description

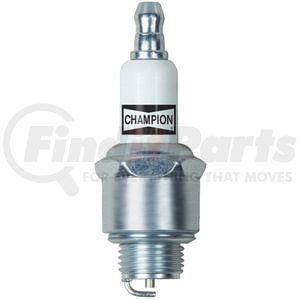

Copper Plus - Single Card - RC12YC

Application Summary

Acura Lt. Trk.: 3.2L V6 (97-96), 3.5L V6 (99-98); Acura Pass. Car: 2.7L V6 (87-87); Aston Martin Pass. Car: 3.2L L6 (98-97), 5.3L V8 (94-90), 6.0L V12 (12-00); Audi Pass. Car: 4.2L V8 (05-01); Bentley Pass. Car: 6.7L V8 (99-00), 6.8L V8 (15-06); BMW Pass

Features & Benefits

  • Copper Plus - Dependable Performance and Durability
  • Copper core center electrode allows for accurate control of heat range for longer life
  • Superior corrosion resistance
  • Built to ISO and SAE standards for proven performance

Product Attributes

Ground Electrode Core Material Nickel
Electrical Terminal Type Non-Removable Nut
Center Electrode Tip Material Nickel
Pre-Gap Size 0.035 IN
Pre-Gap Size 0.89 MM
Ground Electrode Quantity 1
Hex Size 0.625 IN
Hex Size 15.880 MM
Insulator Height 0.06 IN
Manufacturer Heat Range 12
Seat Type Flat
Reach 0.75 IN
Thread Diameter 0.551 IN
Thread Diameter 14.000 MM
Resistor Type Yes
Classification Champion Copper Plus Small Engine
Plug Type RC12YC

Additional Information

Country of Origin (Primary) US
Harmonized Tariff Code (Schedule B) 8511100000
Harmonized Tariff Code (HTS) 8511100000
UPC 00037551011025

Part Interchanges

CHAMPION 711 Cross Reference

We have 2 alternatives for the 711 by CHAMPION:
