(888) 312-8812 Login SignupADVICS AD1354 ADVICS Ultra-Premium Ceramic Brake Pads
Tap to view 5 more
$6449
Limited availability at this price!
1 Day Lead Time
Get it by Friday, Aug 7
ADVICS AD1354 Part Description
Manufacturer
Product Description

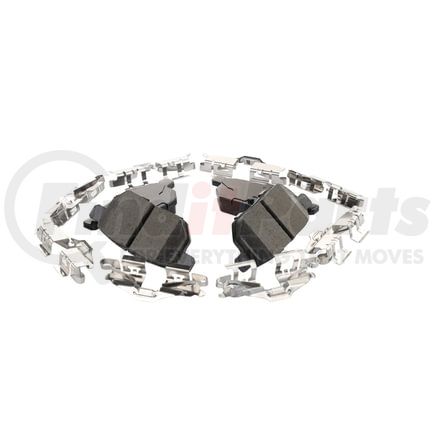

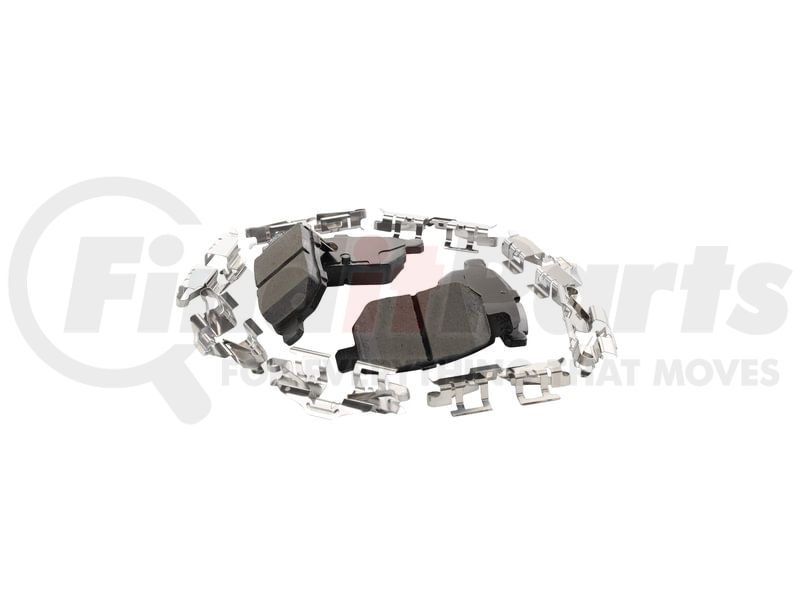

ADVICS Ultra-Premium Ceramic Brake Pads
Features & Benefits
- Leading ceramic friction technology produces quiet, safe and reliable braking. Designed and tested to OEM specifications and feature OEM mirrored slots and chamfers to reduce NVH. Includes Stainless Steel hardware kits (where applicable).
ADVICS AD1354 Specifications
Product Attributes
| Slotted | Yes |
| Friction Material Composition | Ceramic |
| Mounting Hardware Included | Yes |
| Pad Shims Included | Yes |
| Friction Material Attachment | Integrally Molded |
| Abutment Clips Included | No |
| Pad Wear Sensor Type | Mechanical |
| Chamfered Edges | No |
| Wear Indicator Attached | Yes |
| Pad Wear Sensor Included | Yes |
| Grade Type | Premium |
| Backing Material | Fine Blank Steel |
| Brake Lubricant Included | No |
| FMSI Number | 8463-D1354 |
| Pad Quantity | 4 |
| Backing Plate Color | Black |
| Pad Shim Material | Multi Layer |
| ECE-R90 Certified | No |
| Pad Shim Color | Black |
| Adhesive Backed Pad Shim | No |
| Outer Pad Height | 42.7 MM |
| Inner Pad Height | 42.7 MM |
| Outer Pad Width | 98.6 MM |
| Inner Pad Width | 98.6 MM |
| Outer Pad Overall Thickness | 14.4 MM |
| Inner Pad Overall Thickness | 14.4 MM |
Additional Information
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 8708300010 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | JP |
| Harmonized Tariff Code (HTS) | 8708305040 |
| Canadian Harmonizing Tariff Code | 8708301100 |
| UPC | 04562372096884 |
ADVICS AD1354 Cross References
| Brand | Part Number |
|---|---|
| ADVICS | AD1354 |
| AISIN | AD1354 |
| Akebono | ACT1354 |
| Beck/Arnley | 089-1824 |
| Bendix | D1354 |
| Centric Parts | 105.13540, 105.13541 |
| FMSI | D1354 |
| General Motors | 19184919 |
| IMC | AD1354 |
| N/A | ACT1354, PG-D1354C, 04466-47110, GNAD1354, AD1354, 19205534, 19205632, PXD1354H, ACT1354A, ACT1354B |
| Raybestos Brakes | PG-D1354C |
| Toyota | 04466-02210, 04466-02260, 04466-12130, 04466-12140, 04466-12150, 04466-21020, 04466-52140, 04466-52141, 04466-52150 |
| WORLDPAC | AD1354 |
| Wagner Brake | QC1354 |
ADVICS AD1354 Fits Vehicles
- Toyota Prius (2019-2022)
- Toyota Prius AWD-e (2019-2022)
- Toyota Prius Prime (2017-2020)
- Toyota Yaris (2012-2018)
- Scion tC (2011-2016)
- Pontiac Vibe (2009-2010)
- Toyota Matrix (2009-2014)
- Toyota Corolla (2009-2010, 2013-2020)
- Scion xB (2008-2015)
