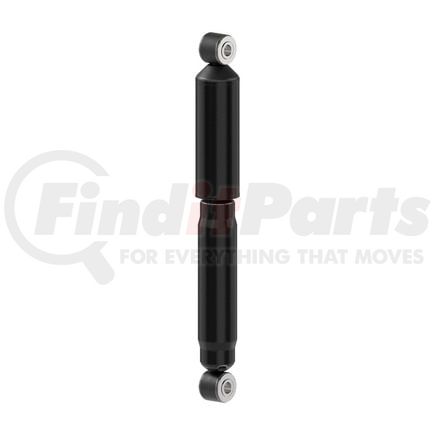

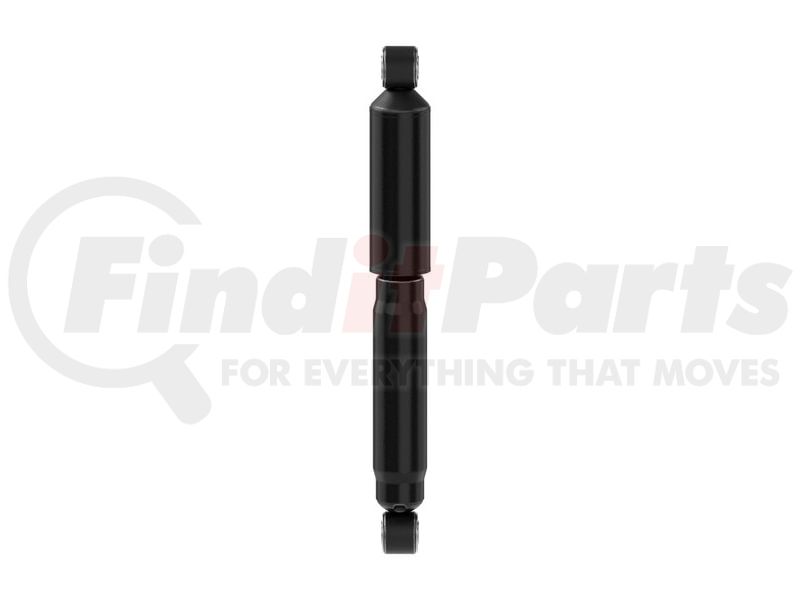

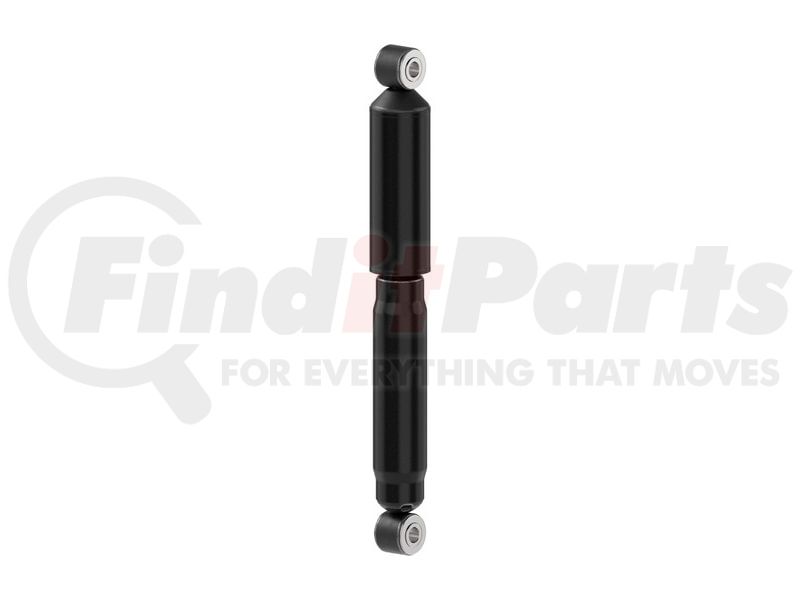

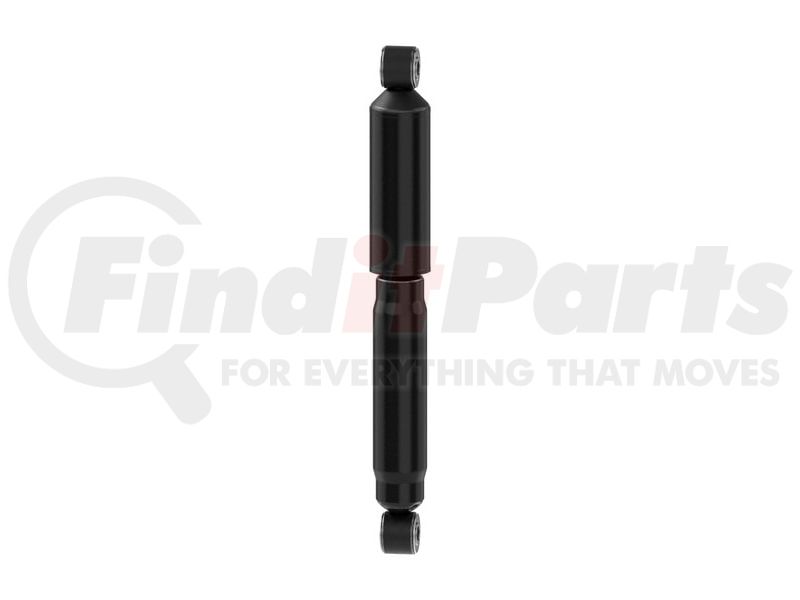

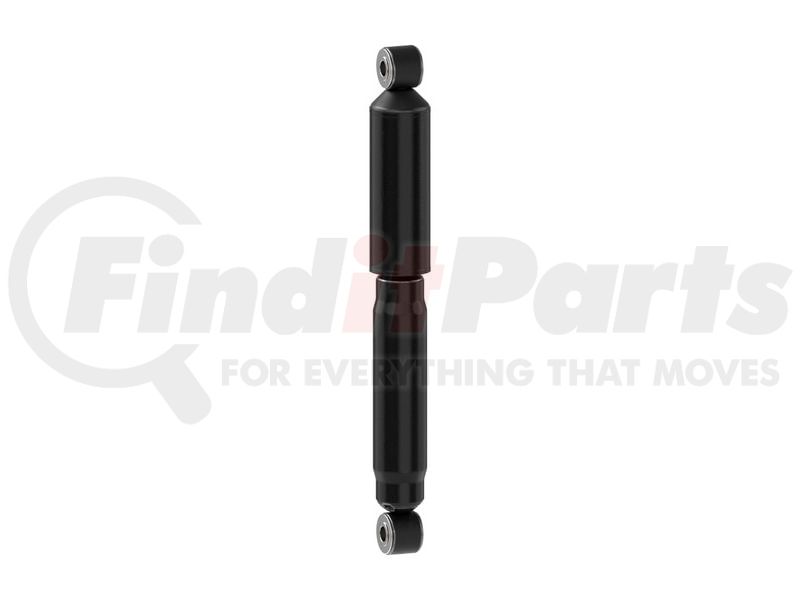

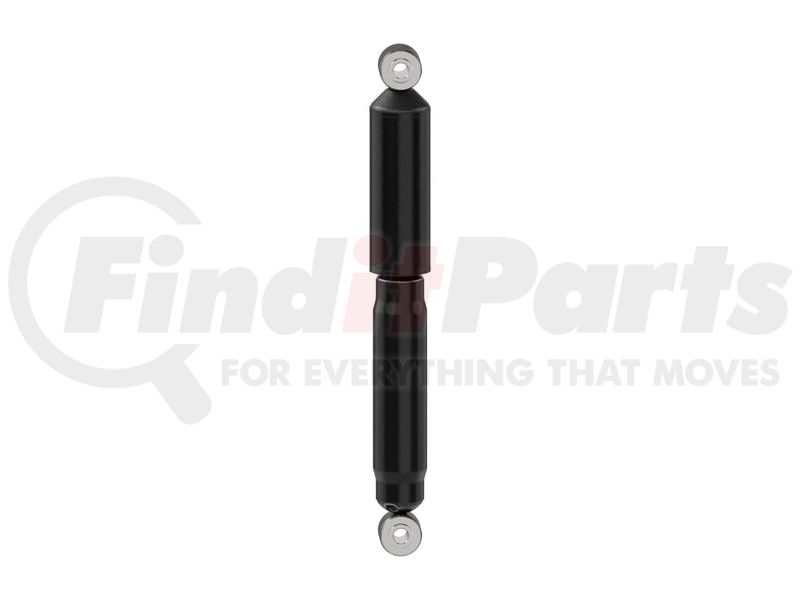

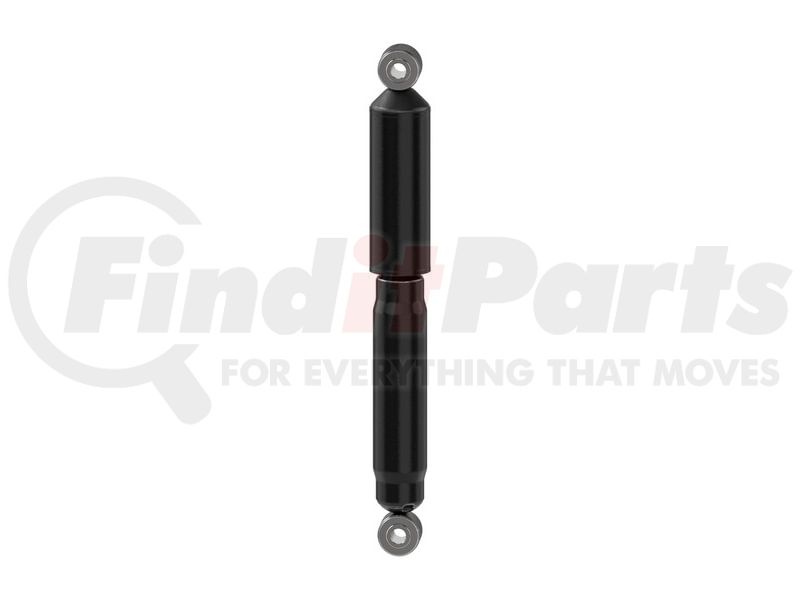

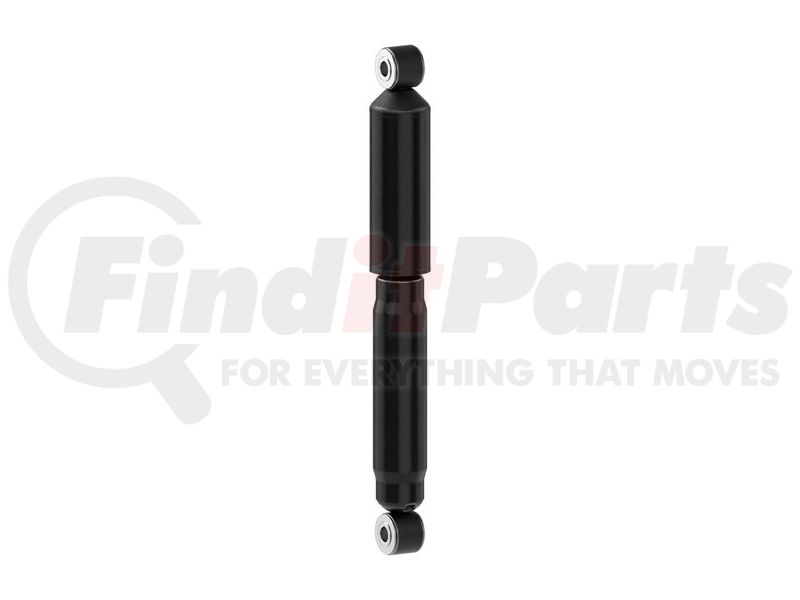

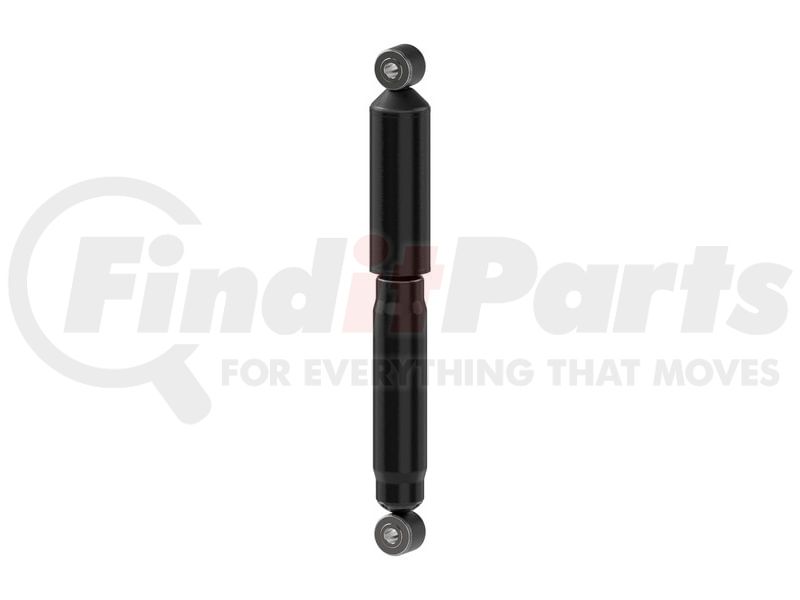

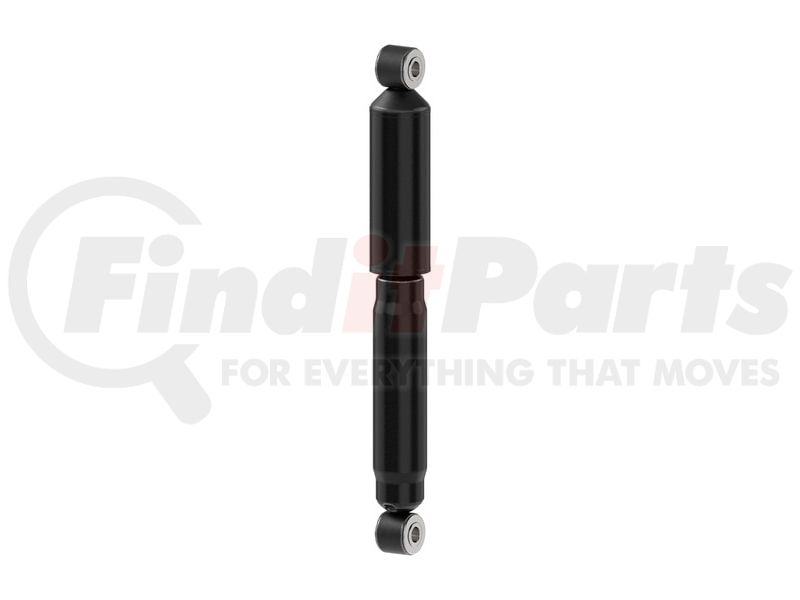

(888) 312-8812 Login SignupMONROE 66440 Magnum Amortisseur
Tap to view 11 more
MSRP: $106.38
$5999
Save $46.39
Limited availability at this price!
In Stock
Get it by Tuesday, Sep 8
MONROE 66440 Part Description
Manufacturer
Features & Benefits
- INSTALLERS ADVANTAGE -- Designed to save time, simplify the job, fix OE design issues, solve customer complaints or enhances durability and longevity
- FOR HARDWORKING COMMERCIAL VEHICLES -- Designed to handle the demands of high mileage and severe use class 3-6 trucks and buses
- CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while 2-in. or 2-1/4-in. reserve tube holds more fluid to improve performance (when required)
- EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/8-in. bore provides more efficient damping control to provide consistency and a smooth ride (most applications)
- STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
- BUILT TO LAST -- Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (on most applications)
- LONGER SERVICE LIFE -- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
- REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration, and harshness under most driving conditions
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
| VMRS Code | 016008003 |
MONROE 66440 Specifications
Product Attributes
| Compressed Length | 12.38 IN |
| Compressed Length | 314.5 MM |
| Extended Length | 19.73 in |
| Extended Length | 501.1 MM |
| Travel Length | 7.35 in |
| Travel Length | 186.7 MM |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 5/8"-16MM Sleeve ID X 1.9/16" Sleeve OAL |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Lower Mount Code | LS51 |
| Upper Mount Type | Loop Bushing and Sleeve Mount - 5/8" Sleeve ID X 1.9/16" Sleeve OAL |
| Upper Mount Code | LS51 |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Gas Charged | Yes |
| Mounting Hardware Included | No |
| Parts Pack(s) | None |
| Body Color | Black |
| Cylinder Color | Black |
| Color | Black |
| Cylinder Finish | Painted |
| Dust Shield Included | Yes |
| Includes Bump Stop | No |
| Internal Rebound Bumper | No |
| Hydraulic Lockout | No |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Part Description | Shock Absorber |
Additional Information
| MSDS Sheet Number | 01164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598126351 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 66440 Cross References
| Brand | Part Number |
|---|---|
| 66440MM, G3GZ54503A20A | |
| BULLDOG HD SHOCKS | HD1214-0552 |
| Bulldog HD | HD12140552 |
| Chrysler | 68157782AC, 68157782AD, 68157782AE, 68157782AF |
| FCS | F347086 |
| KYB | 3450007 |
| NAPA Shocks | 66440 |
| OEM | 68157782AE, 68157782AC, 68157782AD |
| PRT HD | 170258 |
| RAM | 68157782AD, 53301641 |
| Ram | 68157782AC, 68157782AE, 68185556AC, 68185556AE |
| Ram Trucks | 68157782AD, 53301641, 68157782AC |
| Sensen | 12140311, 12140672 |
MONROE 66440 Fits Vehicles
- Roadtrek N6-Active (2013-2014)
- Roadtrek Chase (2021-2023)
- Thor Motor Coach Twist (2023-2024)
- Thor Motor Coach Dazzle (2023-2024)
- Thor Motor Coach Tellaro (2020-2024)
- Thor Motor Coach Sequence (2020-2024)
- Thor Motor Coach Scope (2022-2024)
- Thor Motor Coach Rize (2022-2024)
- Jayco Swift LI (2022-2023)
- Jayco Swift (2021-2023)
- Itasca Viva (2014-2016)
- Hymer Sonne (2017)
- Hymer Aktiv 2.0 (2017-2019)
- Hymer Aktiv (2017-2019)
- Fleetwood Irok (2018-2023)
- Entegra Coach Ethos (2021-2023)
- Airstream Rangeline (2023-2025)
- Winnebago Trend (2014-2018)
- Winnebago Travato (2014-2023)
- Winnebago Solis (2020-2023)
- Winnebago Roam (2022-2023)
- Winnebago View (2014)
- Ram ProMaster 2500 (2014-2025)
- Ram ProMaster 3500 (2014-2025)
