STANDARD IGNITION part description

Product Description

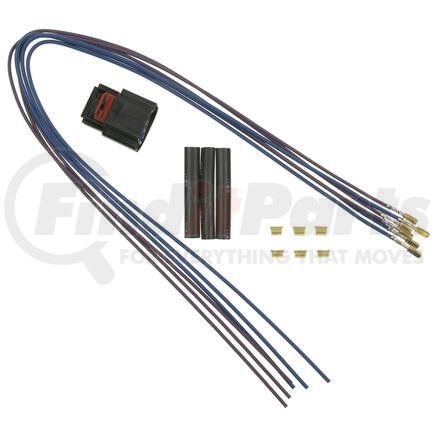

Map Sensor Connector

Features & Benefits

  • High-quality direct replacement electrical connector allows you to replace only the damaged connector instead of the entire harness for a cost-effective repair
  • The terminal is manufactured with high grade materials such as copper alloy, brass, and phosphor bronze. The housing is fabricated using polyamide resins. All of the materials together provide the connectors with prolonged life and superior performance
  • All electrical connectors are 100% tested for proper mechanical and electrical fit, form and function
  • Offering thousands of high-quality pigtails and sockets for nearly every electrical job

Product Attributes

Attachment Method Push On
Bend Angle (Deg.) 0
Connector Gender Male
Connector Quantity 1
Connector Shape Oval
Contact Terminal Material Metal
Dust Shield Included No
Length - Inches 1.5
Material Plastic
Number Of Splice Connectors Includ 3
Number of Wires 6
Splice Connectors Included Yes
Terminal Gender Female
Terminal Quantity 3
Terminal Type Blade
Water Resistant Yes
Weatherproof Sealed Yes
Wire Gauge (ga) 16, 18
Wire Quantity 6
Wiring Harness Included Yes
Wiring Harness Length (in) 21.25
Wiring Harness Length (mm) 539.75

Additional Information

Country of Origin (Primary) CN
Harmonized Tariff Code (HTS) 8536908585
Warranty Distance 36000
Warranty Distance UOM MI
Warranty Time 36
Warranty Time UOM MO
UPC 00025623993492

Part Interchanges

Fits Vehicles

  • Dodge Journey (2011-2012)
  • Jeep Patriot (2010-2012)
  • Jeep Compass (2010-2012)
  • Chrysler Cirrus (2001-2002)
  • Dodge Nitro (2010-2011)
  • Chrysler Grand Voyager (2001-2002)
  • Dodge Caliber (2007-2008, 2010-2012)
  • Jeep TJ (2003-2004)
  • Chrysler Neon (2000-2002)
  • Dodge Avenger (2008-2012)
  • Chrysler 300 (2005-2010)
  • Chrysler Pacifica (2006-2008)
  • Dodge Magnum (2006-2008)
  • Dodge Charger (2006-2010)
  • Chrysler Concorde (2004)
  • Chrysler 300M (2004)
  • Plymouth Neon (2000-2001)
  • Jeep Wrangler (2003-2004)
  • Jeep Liberty (2002-2004)
  • Jeep Grand Cherokee (2002-2004, 2007)
  • Dodge Stratus (2001-2002)
  • Dodge Viper (2003-2006, 2008-2010)
  • Dodge Ram 3500 Van (2002-2003)
  • Dodge Ram 2500 Van (2002-2003)
  • Dodge Ram 1500 Van (2002-2003)
  • Dodge Ram 1500 (2002-2006)
  • Dodge Neon (2000-2005)
  • Dodge Intrepid (2002-2004)
  • Dodge Grand Caravan (2001-2003)
  • Dodge Dakota (2002)
  • Dodge Caravan (2001-2004)
  • Chrysler Voyager (2001-2003)
  • Chrysler Town & Country (2001-2004)
  • Chrysler Sebring (2001-2002, 2007-2010)
  • Chrysler PT Cruiser (2001-2005)
