STANDARD IGNITION part description

Product Description

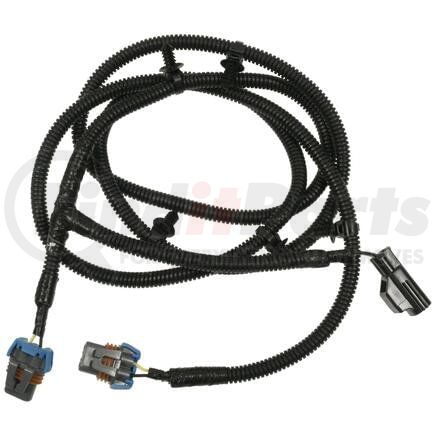

Fog Lamp Connector

Features & Benefits

  • High-quality direct replacement electrical connector allows you to replace only the damaged connector instead of the entire harness for a cost-effective repair
  • The terminal is manufactured with high grade materials such as copper alloy, brass, and phosphor bronze. The housing is fabricated using polyamide resins. All of the materials together provide the connectors with prolonged life and superior performance
  • All electrical connectors are 100% tested for proper mechanical and electrical fit, form and function
  • Offering thousands of high-quality pigtails and sockets for nearly every electrical job

Product Attributes

Attachment Method Push On
Bend Angle (Deg.) 0
Connector Gender Male, Female
Connector Quantity 3
Connector Shape Oval
Contact Terminal Material Metal
Dust Shield Included No
Length - Inches 1 1/4, 1 5/8
Material Plastic
Number Of Splice Connectors Includ 0
Number of Wires 2
Splice Connectors Included No
Terminal Gender Male, Female
Terminal Quantity 2; 2; 2
Terminal Type Blade and Pin
Water Resistant Yes
Weatherproof Sealed Yes
Wire Gauge (ga) 18
Wire Quantity 2
Wiring Harness Included Yes
Wiring Harness Length (in) 82.25
Wiring Harness Length (mm) 2089.15

Additional Information

Country of Origin (Primary) TW
Harmonized Tariff Code (HTS) 8536908585
Warranty Distance 36000
Warranty Distance UOM MI
Warranty Time 36
Warranty Time UOM MO
UPC 00025623590042

Part Interchanges

Fits Vehicles

  • Dodge Ram 2500 (2002-2009)
  • Dodge Ram 3500 (2002-2009)
  • Dodge Ram 1500 (2002-2009)
