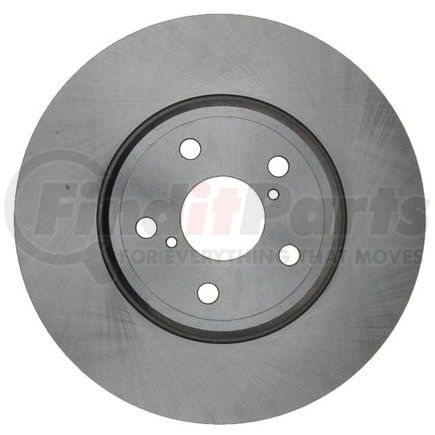

RAYBESTOS 980185R Raybestos R-Line Brake Rotor

★★★★★ (0)

$61.22

MSRP Pricing shown.

Out of Stock

We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.

We may have similar parts for sale. Search Alternatives >

RAYBESTOS 980185R Part Description

Manufacturer

RAYBESTOS

Product Description

Raybestos R-Line Brake Rotor

Application Summary

2006-2001 Lexus LS430 Front

Features & Benefits

  • OE Fit, Form, and Function
  • Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
  • SAE Standard
  • R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
  • Low Initial Lateral Runout and Thickness Variation
  • R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
  • Mill Balanced Edges
  • R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.

RAYBESTOS 980185R Specifications

Product Attributes

ABS Tone Ring IncludedNo
Center Hole Diameter2.441 IN
Center Hole Diameter62 MM
Conventional Or Drum-In-Hat Type RotorConventional
Discard Thickness1.102 IN
Discard Thickness28 MM
Harmonize Code8708.30.5030
Mounting Bolt Hole Circle Diameter4.5 IN
Mounting Bolt Hole Circle Diameter114.3 MM
Mounting Bolt Hole Diameter4.5 IN
Mounting Bolt Hole Diameter114.3 MM
Mounting Bolt Hole Quantity5
Nominal Thickness1.181 IN
Nominal Thickness30 MM
Outside Diameter12.402 IN
Outside Diameter315 MM
Overall Height1.976 IN
Overall Height50.2 MM
Salability RestrictionsNo
Solid Or Vented Type RotorVented
Stud/Lug Hole Quantity5
UNSPSC Code25171715

Additional Information

Country of Origin (Primary)CN
Canadian Harmonizing Tariff Code8708309990
Harmonized Tariff Code (HTS)8708305030
UPC00829352870617

RAYBESTOS 980185R Cross References

BrandPart Number
ADVANCE AUTO PARTSYH200386, YH200386C
AUTOXTRAAX900079
AUTOZONE083-2909, 31600, 31600DG
BRAKEBEST50011458, 980185, 980185R, 980185RGS
BREMBO09.B454.10
Brembo09.B454.11
CENTRIC120.44122, 121.44122, 126.44122SL, 126.44122SR, 127.44122CL, 127.44122CR, 127.44122L, 127.44122R, 128.44122CL, 128.44122CR, 128.44122L, 128.44122R, 320.44122
Casting Numbers211586-C
Centric Parts120.44122, 121.44122, 126.44122SL, 126.44122SR, 127.44122CL, 127.44122CR, 127.44122L, 127.44122R, 128.44122CL, 128.44122CR, 128.44122L, 128.44122R, 320.44122
DURA CORPBR31456, BR900079
DuraGo900079, BR900079
MAGMA PRODUCTSPMR563073
NEWTEK AUTOMOTIVE31456
Newtek Automotive USA31456
PROMAX14-31456
Qualis31456
TOYOTA4351250160, 4351250220, 4351250220A, 4351250230
TRWDF7831
TopNotchTN980185GEO
UAP31456
WABCOPS126227
WABCO - ArchivedPS126227
WAGNERBD126227E, BD126227
WAGNER BRAKEBD126227
WINHERE6620437
WORLDPAC1407-78847, 1427-719980
Wagner BrakeBD126227E

RAYBESTOS 980185R Fits Vehicles

  • Lexus LS430 (2001-2006)
