(888) 312-8812 Login SignupRAYBESTOS 680983R Raybestos R-Line Brake Rotor
$13699
Limited availability at this price!
In Stock
Get it by Wednesday, Sep 9
RAYBESTOS 680983R Part Description
Manufacturer
Product Description

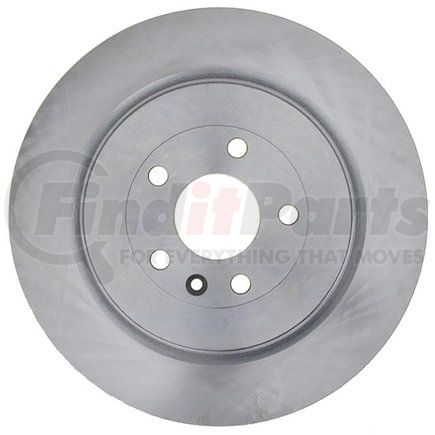

Raybestos R-Line Brake Rotor
Application Summary
2019-2013 Ford Explorer Rear, 2019-2013 Ford Taurus Rear, 2019-2012 Ford Flex Rear, 2019-2013 Ford Police Interceptor Utility Rear, 2019-2013 Ford Police Interceptor Sedan Rear, 2016-2012 Lincoln MKS Rear, 2019-2013 Lincoln MKT Rear
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 680983R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.68 IN |
| Center Hole Diameter | 68.05 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.689 IN |
| Discard Thickness | 17.5 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 9.6 IN |
| Inside Diameter | 243.85 MM |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.573 IN |
| Mounting Bolt Hole Diameter | 14.55 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.748 IN |
| Nominal Thickness | 19 MM |
| Outside Diameter | 13.579 IN |
| Outside Diameter | 344.9 MM |
| Overall Height | 1.524 IN |
| Overall Height | 38.7 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213026375 |
RAYBESTOS 680983R Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | G15591SD, YH477754, YH477754C |
| AUTOPARTSOURCE | 492129 |
| AUTOXTRA | AX901160 |
| AUTOZONE | 75011, 75011DG, 75011DL |
| Advance Auto Parts | YH477754P |
| Autoxtra | AX901160P |
| BENDIX | PRT6202, SDR5898 |
| BRAKEBEST | 680983, 680983P, 680983R, 680983RGS |
| Brembo | 09.D275.11 |
| CENTRIC | 120.65137, 120.65137CRY, 121.65137, 126.65137CSL, 126.65137CSR, 126.65137SL, 126.65137SR, 127.65137L, 127.65137R, 128.65137L, 128.65137R, 320.65137, 320.65137F, 321.65137 |
| Centric Parts | 120.65137, 120.65137CRY, 121.65137, 126.65137CSL, 126.65137CSR, 126.65137SL, 126.65137SR, 127.65137L, 127.65137R, 128.65137L, 128.65137R, 320.65137, 320.65137F, 321.65137 |
| DURA CORP | BR54189, BR901160 |
| DuraGo | BR901160, BR90116002, BR901160-02, BR901160-03 |
| Dynamic Friction Company | 604-54222 |
| Eurorotor | 54196 |
| FORD | DG1Z2C026A |
| Ford | EU2Z2V026B |
| MAGMA PRODUCTS | PMR205248 |
| MOTORCRAFT | BRRF92 |
| Motorcraft | NBRR10, BRR253 |
| NEWTEK AUTOMOTIVE | R1160 |
| Newtek Automotive USA | R1160 |
| PROMAX | 14-54189 |
| Parts Master | 901160 |
| Performance Friction | 343.039.01 |
| PowerStop | AR85142, AR85142EVC |
| Qualis | 42285 |
| TopNotch | TN680983GEO |
| WABCO | PS901160 |
| WABCO - Archived | PS901160 |
| WAGNER BRAKE | BD180536, BD180536E |
| WINHERE | 6621454 |
| WORLDPAC | 1407-477754, 1427-731822 |
| WORLDPARTS | WS1-154189 |
RAYBESTOS 680983R Fits Vehicles
- Ford Police Responder Hybrid (2019-2020)
- Ford Special Service Police Sedan (2014-2018)
- Ford Police Interceptor Utility (2013-2019)
- Ford Police Interceptor Sedan (2013-2019)
- Lincoln MKT (2013-2019)
- Ford Taurus (2013-2019)
- Ford Explorer (2013-2019)
- Lincoln MKS (2012-2016)
- Ford Flex (2012-2019)
