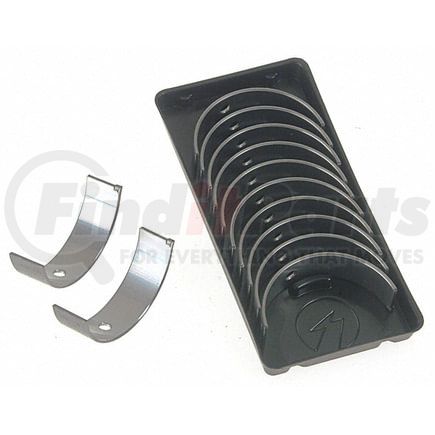

Sealed Power 6-4830A25X2 - Sealed Power 6-4830A 25X2 Engine Connecting Rod Bearing Set
- Part Number
- 6-4830A25X2
- Manufacturer
- SEALED POWER
- Description
-
Sealed Power 6-4830A 25X2 Engine Connecting Rod Bearing Set
details
$5399
MSRP: $89.18
Save: $35.19
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
SEALED POWER part description
Product Description
Engine Connecting Rod Bearing Set
Features & Benefits
- Additional oversize OD allows for cost-effective reconditioning
- A-Series bi-metal aluminum alloy
- Greater seizure resistance than tri-metal material
- Dramatically reduces or eliminates bearing wear
- Made with silicon to provide greater surface hardness
- Silicon particles help polish crankshaft journal to further reduce wear during operation
Product Attributes
| Design Feature 1 | Undersize Inch .025 |
| Design Feature 2 | .002" O/S Rod Bore |
| Housing Bore Max (inch) | 2.2267 IN |
| Housing Bore Max (mm) | 56.5580 MM |
| Housing Bore Min (inch) | 2.2261 IN |
| Housing Bore Min (mm) | 56.5430 MM |
| Oil Clearance Max (inch) | 0.0025 IN |
| Oil Clearance Max (mm) | 0.0640 MM |
| Oil Clearance Min (inch) | 0.0005 IN |
| Oil Clearance Min (mm) | 0.0130 MM |
| Overall Length Max (inch) | 0.6880 IN |
| Overall Length Max (mm) | 17.4800 MM |
| Part Description | Engine Connecting Rod Bearing Set |
| Standard Shaft Max (inch) | 2.0969 IN |
| Standard Shaft Max (mm) | 53.2610 MM |
| Standard Shaft Min (inch) | 2.0961 IN |
| Standard Shaft Min (mm) | 53.2410 MM |
| Wall Thickness Max (inch) | 0.0644 IN |
| Wall Thickness Max (mm) | 1.6360 MM |
| Grade Type | Premium |
Additional Information
| Country of Origin (Primary) | MX |
| Canadian Harmonizing Tariff Code | 8483300022 |
| Harmonized Tariff Code (Schedule B) | 8483308090 |
| Harmonized Tariff Code (HTS) | 8483308090 |
| UPC | 00614046626126 |
Part Interchanges
Fits Vehicles
- Dodge Avenger (2008-2009)
- Dodge Charger (2006-2009)
- Chrysler 300 (2005-2009)
- Dodge Magnum (2005-2008)
- Chrysler Intrepid (1998-2004)
- Dodge Stratus (2001-2006)
- Dodge Intrepid (1998-2004)
- Chrysler Sebring (2001-2009)
- Chrysler Concorde (1998-2004)
