DELPHI FG0850 Part Description
Manufacturer
Product Description

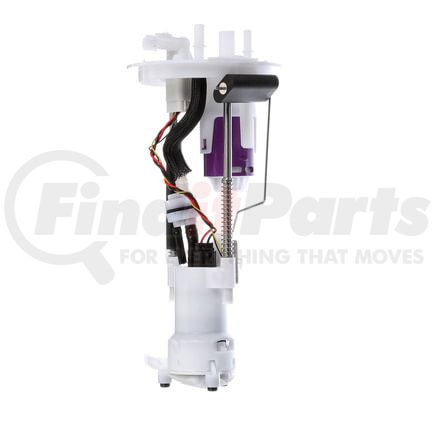

Fuel Pump Module Assembly
Features & Benefits
- Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
- Empty float height and float retention matches OE specifications and guarantees correct gas gauge reading
- Lower amperage draws less load on vehicle's electrical system
- Part is validated, tested and matched to the right vehicle application
- Always be sure to check and clean fuel tank to avoid unnecessary returns
- Lower failure rates due to its innovative design and durability
DELPHI FG0850 Specifications
Product Attributes
| Vapor Pressure Sensor | No |
| Item Grade | Standard Replacement |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Seal, Instruction Sheet |
| Fuel Level Sender Assembly Included | Yes |
| System Pressure | 44 psi |
| Outlet Outside Diameter | 0.375 IN |
| Voltage | 12 2H |
| Fuel Type | Gas |
| Regulator Included | No |
| Maximum Pressure | 92 PS |
| Terminal Type | Blade |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick Connect |
| Outlet Quantity | 4 |
| In Tank or External | In Tank |
| Resistance Ohms Empty | 15 82 |
| Resistance Ohms Full | 160 82 |
| Internal Or External Strainer | External |
| Pump Type | Electric |
| Average Current Draw | 12 68 |
| Average Flow Rating | 44 GPH |
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Mounting Hardware Included | No |
| Grade Type | Premium |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Housing Material | Plastic |
| Installation Warnings | No |
| Connector Gender | Female |
| Fuel Filter Included | No |
| Gasket Or Seal Material | Nitrile Rubber |
| Minimum Pressure | 44 PS |
| Wire Harness Included | No |
| Pump Design | Turbine |
| Fuel Tank Pressure Sensor Included | No |
| Universal Or Specific Fit | Specific |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Harmonized Tariff Code (HTS) | 8413309030 |
| Warranty Special | Limited |
| Warranty Special UOM | LT |
| Country of Origin (Primary) | TH |
| UPC | 00689604202487 |
| VMRS Code | 044003258 |
| UNSPSC | 25172409 |
DELPHI FG0850 Cross References
| Brand | Part Number |
|---|---|
| AUTOBEST | F1447A, F1452A, F1445A |
| Airtex | E2434M, E2441M |
| AutoZone | DFG0850 |
| Bosch | 67212, 69188 |
| CARTER FUEL PUMPS | P76337M |
| Carquest | M2480516 |
| Carter | P76337M, P76344M |
| DENSO Auto Parts | 953-4038, 953-4043 |
| EVO Driveline | RE0897S, AFS0897S |
| Ford | 4L3Z 9H307-CF, 5L3Z 9H307-CB, 6L3Z 9H307-C, 7L3Z 9H307-C, 8L3Z 9A213-B, 8L3Z 9H307-C, 8L3Z 9H307-L, 4L3Z 9H307-C |
| GMB | 525-2200 |
| Magneti Marelli | 1AMFP00058 |
| Motorcraft | PFS-209, PFS-495, PS-349 |
| N/A | 9534038, 9534043, 4L3Z9H307CF, 5L3Z9H307CB, 6L3Z9H307C, 7L3Z9H307C, 8L3Z9H307C, PFS209, USEP2441M, F1452A, C0079M, C0087M, 4010529 |
| Precision Fuel | A30125, A30126 |
| Spectra Premium | SP2005M |
| TYC | 150113-A, 150126-A |
| URO | FD0517233 |
DELPHI FG0850 Fits Vehicles
- Ford F-150 (2004-2008)
- Lincoln Mark LT (2007-2008)
