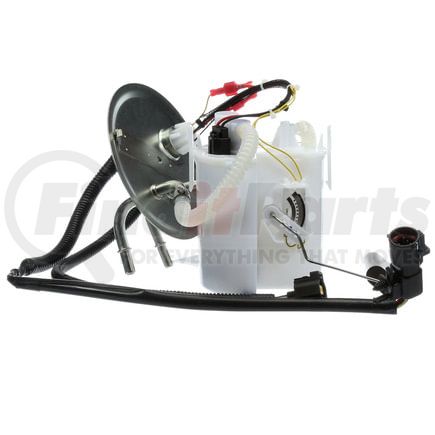

(888) 312-8812 Login SignupDELPHI FG0838 Fuel Pump Module Assembly
MSRP: $406.70
$15899
Save $247.71
Limited availability at this price!
In Stock
Get it by Thursday, Feb 5
DELPHI FG0838 Part Description
Manufacturer
Product Description
Fuel Pump Module Assembly
Features & Benefits
- Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
- Empty float height and float retention matches OE specifications and guarantees correct gas gauge reading
- Lower amperage draws less load on vehicle's electrical system
- Part is validated, tested and matched to the right vehicle application
- Always be sure to check and clean fuel tank to avoid unnecessary returns
- Lower failure rates due to its innovative design and durability
DELPHI FG0838 Specifications
Product Attributes
| System Pressure | 44 psi |
| Vapor Pressure Sensor | No |
| Item Grade | Standard Replacement |
| Fuel Level Sender Assembly Included | Yes |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Seal, Clips, Instruction Sheet |
| Outlet Outside Diameter | 0.375 IN |
| Voltage | 12 2H |
| Fuel Type | Gas |
| Regulator Included | No |
| Maximum Pressure | 106 PS |
| Terminal Type | Pin |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 7 |
| Lock Ring Included | No |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick Connect |
| Outlet Quantity | 2 |
| In Tank or External | In Tank |
| Resistance Ohms Empty | 15 82 |
| Resistance Ohms Full | 160 82 |
| Internal Or External Strainer | External |
| Pump Type | Electric |
| Average Current Draw | 5 68 |
| Average Flow Rating | 26 GPH |
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Mounting Hardware Included | No |
| Grade Type | Premium |
| Connector Quantity | 2 |
| Connector Shape | Round |
| Housing Material | Plastic |
| Installation Warnings | No |
| Connector Gender | Female |
| Fuel Filter Included | No |
| Gasket Or Seal Material | Nitrile Rubber |
| Minimum Pressure | 44 PS |
| Wire Harness Included | No |
| Pump Design | Turbine |
| Fuel Tank Pressure Sensor Included | No |
| Universal Or Specific Fit | Specific |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Harmonized Tariff Code (HTS) | 8413309030 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TH |
| UPC | 00689604201367 |
| VMRS Code | 044003258 |
| UNSPSC | 25172409 |
DELPHI FG0838 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | MU2014 |
| AUTOBEST | F1254A |
| Airtex | E2243M, E2284, E2490 |
| AutoZone | CFG0838 |
| Bosch | 67141, 69548 |
| CARTER FUEL PUMPS | P74951M |
| Carter | P74951M |
| DENSO Auto Parts | 951-0008, 953-4114 |
| DORMAN | 2630324 |
| EVO Driveline | AFS0275S, RE0275S, AFS0753P, RE0753P |
| Ford | XF1Z 9H307-AA, XF1Z 9H307-AB, XF1Z 9H307-DB |
| GMB | 525-2840 |
| Magneti Marelli | 1AMFP00159 |
| Motorcraft | PFS-235, PFS-237 |
| N/A | 9510008, 9534114, XF1Z9H307AA, XF1Z9H307AB, XF1Z9H307DB, PFS235, USEP2243M, C0029M, SP2050M, P76053M, 4010200, 4010201 |
| Pierce | P532M |
| Precision Fuel | A30078 |
| Spectra Premium | SP2243M, SP1119 |
| Walbro | TU209 |
DELPHI FG0838 Fits Vehicles
- Mercury Sable (1999)
- Ford Taurus (1999)
