(888) 312-8812 Login SignupDELPHI FG0890 Fuel Pump Module Assembly
MSRP: $644.52
$40899
Save $235.53
Limited availability at this price!
In Stock
Get it by Wednesday, Jun 24
DELPHI FG0890 Part Description
Manufacturer
Product Description

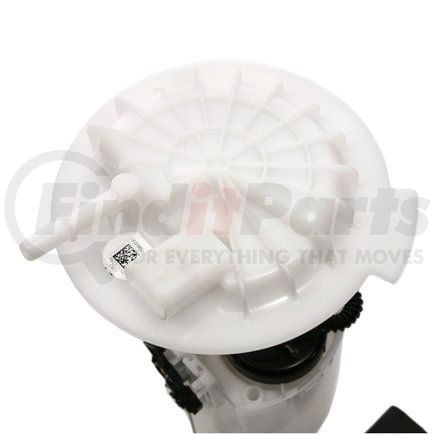

Fuel Pump Module Assembly
Features & Benefits
- Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
- Empty float height and float retention matches OE specifications and guarantees correct gas gauge reading
- Lower amperage draws less load on vehicle's electrical system
- Part is validated, tested and matched to the right vehicle application
- Always be sure to check and clean fuel tank to avoid unnecessary returns
- Lower failure rates due to its innovative design and durability
DELPHI FG0890 Specifications
Product Attributes
| Fuel Level Sender Assembly Included | Yes |
| Item Grade | Standard Replacement |
| Vapor Pressure Sensor | No |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Seal, Instruction Sheet |
| System Pressure | 58 psi |
| Fuel Type | Flex |
| Outlet Outside Diameter | 0.375 IN |
| Voltage | 12 2H |
| Regulator Included | Yes |
| Maximum Pressure | 78 PS |
| Terminal Type | Blade |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick Connect |
| Outlet Quantity | 1 |
| In Tank or External | In Tank |
| Resistance Ohms Empty | 990 82 |
| Resistance Ohms Full | 51 82 |
| Internal Or External Strainer | Internal |
| Pump Type | Electric |
| Average Current Draw | 11 68 |
| Average Flow Rating | 21 GPH |
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Fuel Type | Flex |
| Mounting Hardware Included | No |
| Grade Type | Premium |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Housing Material | Plastic |
| Installation Warnings | No |
| Connector Gender | Female |
| Fuel Filter Included | Yes |
| Gasket Or Seal Material | Nitrile Rubber |
| Minimum Pressure | 58 PS |
| Wire Harness Included | No |
| Pump Design | Turbine |
| Fuel Tank Pressure Sensor Included | No |
| Universal Or Specific Fit | Specific |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Harmonized Tariff Code (HTS) | 9026102080 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TH |
| UPC | 00689604204719 |
| VMRS Code | 044003258 |
| UNSPSC | 25172409 |
DELPHI FG0890 Cross References
| Brand | Part Number |
|---|---|
| Airtex | E7254M, E7272M |
| AutoZone | CFG0890 |
| Bosch | 66166 |
| CARTER FUEL PUMPS | P76703M, P76743M |
| CONTINENTAL AG | FP22058S, FP22044S |
| Carquest | M2520928 |
| Carter | P76703M, P76743M |
| Chrysler | 4809 482AA, 6803 0923AA, 6803 0923AB, 6803 0923AC, 6803 0923AD, 6803 0923AE, 6806 0507AB |
| GMB | 520-2355 |
| N/A | 68030923AB, 68060507AB, USEP7272M, F3283A, C0517M, C0523M, USEP7254M, 4010683, 4010757, 4011376, 68030923AF, 6806 0507AC |
| Precision Fuel | A38010 |
| Spectra Premium | SP7057M, SP7080M |
| VDO | FP22058S |
| VEMO | V33-09-0010 |
| Volkswagen | 7B0 919 051 A, 7B0 919 673, 7B0 919 673 A |
DELPHI FG0890 Fits Vehicles
- Ram C/V (2012-2015)
- Volkswagen Routan (2011-2014)
- Dodge Grand Caravan (2008-2020)
- Chrysler Town & Country (2008-2016)
