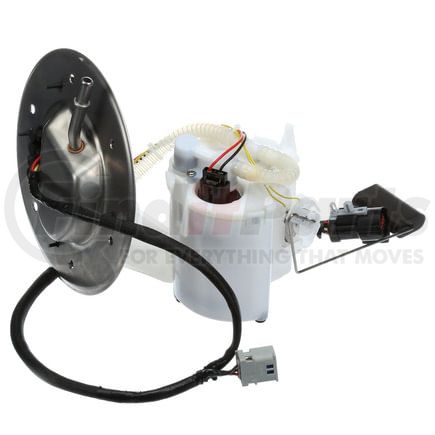

DELPHI FG0827 Fuel Pump Module Assembly

★★★★★ (0)
Delphi FG0827 Fuel Pump Module Assembly Fuel Pump Module Assembly
DELPHI
Tap to view 18 more
SHIPS TODAY

$221.99

Limited availability at this price!

In Stock

Get as soon as Tuesday, Nov 17
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details

DELPHI FG0827 Part Description

Manufacturer

DELPHI

Product Description

Fuel Pump Module Assembly

Features & Benefits

  • Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
  • Empty float height and float retention matches OE specifications and guarantees correct gas gauge reading
  • Lower amperage draws less load on vehicle's electrical system
  • Part is validated, tested and matched to the right vehicle application
  • Always be sure to check and clean fuel tank to avoid unnecessary returns
  • Lower failure rates due to its innovative design and durability

DELPHI FG0827 Specifications

Product Attributes

System Pressure44 psi
Item GradeStandard Replacement
Fuel Level Sender Assembly IncludedYes
Package ContentsFuel Pump Module Assembly w/Float Arm, Instruction Sheet
Vapor Pressure SensorNo
Outlet Outside Diameter0.375 IN
Voltage12 2H
Fuel TypeGas
Regulator IncludedNo
Maximum Pressure81 PS
Terminal TypePin
Gasket Or Seal IncludedYes
Terminal Quantity7
Lock Ring IncludedNo
Terminal GenderFemale
Strainer IncludedYes
Inlet TypeStrainer
Outlet TypeQuick Connect
Outlet Quantity1
In Tank or ExternalIn Tank
Resistance Ohms Empty15 82
Resistance Ohms Full160 82
Internal Or External StrainerExternal
Pump TypeElectric
Average Current Draw5 68
Average Flow Rating26 GPH
Fuel Sending Unit IncludedYes
Negative GroundNo
Mounting Hardware IncludedNo
Grade TypePremium
Connector Quantity2
Connector ShapeRound
Housing MaterialPlastic
Installation WarningsNo
Connector GenderFemale
Fuel Filter IncludedNo
Gasket Or Seal MaterialNitrile Rubber
Minimum Pressure44 PS
Wire Harness IncludedNo
Pump DesignTurbine
Fuel Tank Pressure Sensor IncludedNo
Universal Or Specific FitSpecific

Additional Information

Harmonized Tariff Code (Schedule B)8413309000
Harmonized Tariff Code (HTS)8413309030
Warranty SpecialLimited
Warranty Special UOMLT
Country of Origin (Primary)TH
UPC00689604200940
VMRS Code044003258
UNSPSC25172409

DELPHI FG0827 Cross References

BrandPart Number
AUTOBESTF1312A
AirtexE2301M, E2366
AutoZoneDFG0827
Bosch67170
CARTER FUEL PUMPSP76505M
CarquestM2324760
CarterP76102, P76505M
EVO DrivelineRE0834S, AFS0834S
Ford1R3Z 9H307-AA, 1R3Z 9H307-AB
GMB525-2900
MotorcraftPFS-170
N/A1R3Z9H307AA, 1R3Z9H307AB, PFS170, 1R3Z 9H307-AD, P76130M, USEP2301M, F1312A, 402-P2301M, C0049M, P76130S, 4010297
Precision FuelA30072
Spectra PremiumSP2301M, SP1144
TYC150034-A
UROFD0517380
VEMOV25090038
WalbroTU229

DELPHI FG0827 Fits Vehicles

  • Ford Mustang (2001-2004)
