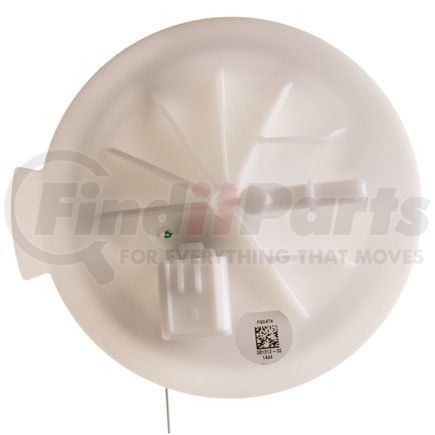

(888) 312-8812 Login SignupDELPHI FG0474 Fuel Pump Module Assembly
MSRP: $394.00
$22599
Save $168.01
Limited availability at this price!
In Stock
Get it by Tuesday, Jun 23
DELPHI FG0474 Part Description
Manufacturer
Product Description
Fuel Pump Module Assembly
Features & Benefits
- Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
- Empty float height and float retention matches OE specifications and guarantees correct gas gauge reading
- Lower amperage draws less load on vehicle's electrical system
- Part is validated, tested and matched to the right vehicle application
- Always be sure to check and clean fuel tank to avoid unnecessary returns
- Lower failure rates due to its innovative design and durability
DELPHI FG0474 Specifications
Product Attributes
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Seal, Instruction Sheet |
| Item Grade | Standard Replacement |
| System Pressure | 58 psi |
| Vapor Pressure Sensor | No |
| Fuel Level Sender Assembly Included | Yes |
| Outlet Outside Diameter | 0.375 IN |
| Voltage | 12 2H |
| Fuel Type | Gas |
| Regulator Included | Yes |
| Maximum Pressure | 65 PS |
| Terminal Type | Blade |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick Connect |
| Outlet Quantity | 1 |
| In Tank or External | In Tank |
| Resistance Ohms Empty | 220 82 |
| Resistance Ohms Full | 20 82 |
| Internal Or External Strainer | Internal |
| Pump Type | Electric |
| Average Current Draw | 11 68 |
| Average Flow Rating | 21 GPH |
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Mounting Hardware Included | No |
| Grade Type | Premium |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Housing Material | Plastic |
| Installation Warnings | No |
| Connector Gender | Female |
| Fuel Filter Included | Yes |
| Gasket Or Seal Material | Nitrile Rubber |
| Minimum Pressure | 58 PS |
| Wire Harness Included | No |
| Pump Design | Turbine |
| Fuel Tank Pressure Sensor Included | No |
| Universal Or Specific Fit | Specific |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Harmonized Tariff Code (HTS) | 8413309030 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TH |
| UPC | 00689604203149 |
| VMRS Code | 044003258 |
| UNSPSC | 25172409 |
DELPHI FG0474 Cross References
| Brand | Part Number |
|---|---|
| AUTOBEST | F3176A |
| Airtex | E7165M, E7182M |
| AutoZone | DFG0474 |
| Bosch | 67706, 67777, 69345 |
| CARTER FUEL PUMPS | P76277M |
| Carquest | M212897 |
| Carter | P76277M, P76842M, P76846M |
| Chrysler | RL001958AB, RL004489AA, RL004518AA, RL134554AF, 5104 696AA, 5104 696AB, 5134 554AF, 6800 4489AA, 6800 4518AA, 6800 1958AB |
| DENSO | 953-3070 |
| DENSO Auto Parts | 953-3070 |
| EVO Driveline | RE0867S, AFS0940S |
| GMB | 520-2340 |
| N/A | 67691, 5104696AA, 5104696AB, USEP7165M, F3176A, C0465M, C0476M, C0520M, C0789M, C0833M, 4010454, 4011439, 68004518AB, 68004489AB |
| Precision Fuel | A30121 |
| Siemens | FP22031 |
| Spectra Premium | SP7165M, SP7023M, SP7237M |
| TYC | 150077-A |
| URO | DG0517340 |
DELPHI FG0474 Fits Vehicles
- Dodge Ram 2500 (2005-2009)
- Dodge Ram 3500 (2005-2008)
- Dodge Ram 1500 (2004-2008)
