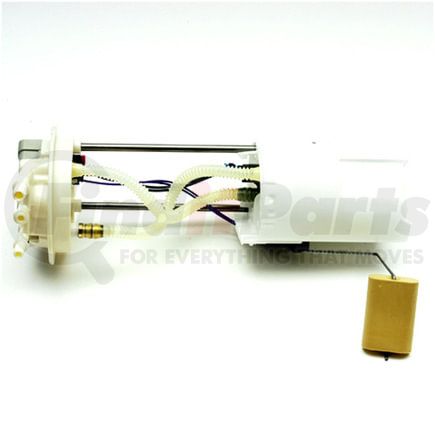

DELPHI FG0289 Fuel Pump Module Assembly

★★★★★ (0)

$351.99

Limited availability at this price!

In Stock

Get as soon as Thursday, Nov 19
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details

DELPHI FG0289 Part Description

Manufacturer

DELPHI

Product Description

Fuel Pump Module Assembly

Features & Benefits

  • Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
  • Empty float height and float retention matches OE specifications and guarantees correct gas gauge reading
  • Lower amperage draws less load on vehicle's electrical system
  • Part is validated, tested and matched to the right vehicle application
  • Always be sure to check and clean fuel tank to avoid unnecessary returns
  • Lower failure rates due to its innovative design and durability

DELPHI FG0289 Specifications

Product Attributes

Vapor Pressure SensorYes
Item GradeStandard Replacement
Package ContentsFuel Pump Module Assembly w/Float Arm, Instruction Sheet
System Pressure43 psi
Fuel Level Sender Assembly IncludedYes
Outlet Outside Diameter0.375 IN
Voltage12 2H
Fuel TypeGas
Regulator IncludedNo
Maximum Pressure65 PS
Terminal TypePin
Gasket Or Seal IncludedYes
Terminal Quantity4
Lock Ring IncludedNo
Terminal GenderMale
Strainer IncludedYes
Inlet TypeStrainer
Outlet TypeQuick Connect
Outlet Quantity2
In Tank or ExternalIn Tank
Resistance Ohms Empty290 82
Resistance Ohms Full80 82
Internal Or External StrainerExternal
Pump TypeElectric
Average Current Draw8 68
Average Flow Rating20 GPH
Fuel Sending Unit IncludedYes
Negative GroundNo
Mounting Hardware IncludedNo
Wire Quantity4
Grade TypePremium
Connector Quantity1
Connector ShapeOval
Housing MaterialPlastic
Installation WarningsNo
Connector GenderFemale
Fuel Filter IncludedNo
Gasket Or Seal MaterialNitrile Rubber
Minimum Pressure43 PS
Wire Harness IncludedYes
Pump DesignTurbine
Fuel Tank Pressure Sensor IncludedYes
Universal Or Specific FitSpecific

Additional Information

Harmonized Tariff Code (HTS)8413309030
Warranty SpecialLimited
Warranty Special UOMLT
Harmonized Tariff Code (Schedule B)8413309000
Country of Origin (Primary)TH
UPC00689604083604
VMRS Code044003258
UNSPSC25172409

DELPHI FG0289 Cross References

BrandPart Number
ACDelcoMU1102
AUTOBESTF4494A
AirtexE8483M, E8335, E8397M, E8721M
AutoZoneDFG0289
Bosch67926, 67927
CARTER FUEL PUMPSP76602M
CarterP76432M
DENSO953-3077
DENSO Auto Parts953-3077, 953-5109
EVO DrivelineRE0712S
GMB535-2140
General Motors25341208, 98032171
Honda8-25336-451-1, 8-98032-171-0
Import DirectA27129
Isuzu8-25341-208-0, 8-25347-909-0, 8-98032-171-0
N/A9535109, 8253364511, 8253412080, 8253479090, 8980321710, P76602M, USEP8483M, C0557M, SP4050M, 4010334
SPECTRA PREMIUMSP4050M
Spectra PremiumSP8721M, SP8027M

DELPHI FG0289 Fits Vehicles

  • Honda Passport (2002)
  • Isuzu Axiom (2002-2003)
  • Isuzu Rodeo (2002-2004)
