(888) 312-8812 Login SignupDELPHI FE0295 Electric Fuel Pump
$21349
Limited availability at this price!
5 Day Lead Time
Get it by Tuesday, Jul 14
DELPHI FE0295 Part Description
Manufacturer
Product Description

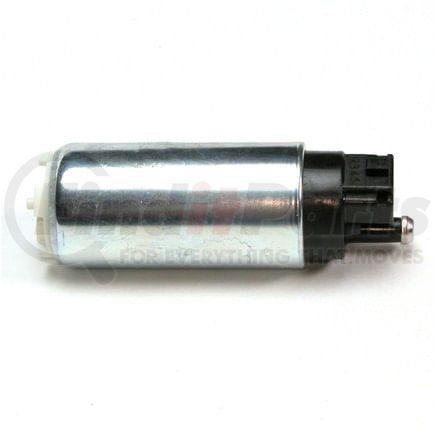

Electric Fuel Pump
Features & Benefits
- Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
- Delphi pumps are designed to operate under extreme temperatures with quick engine starts
- Improved pump performance as a result of Delphi's innovative design and durability
- Restores fast pressure performance and system integrity, translating to better pumping through less energy
- Part is validated, tested and matched to the right vehicle application
- Lower amperage draws less load on vehicle's electrical system
- Always be sure to check and clean fuel tank to avoid unnecessary returns
- Always replace the fuel strainer when doing a fuel pump repair
DELPHI FE0295 Specifications
Product Attributes
| Position(s) | In-Tank |
| Package Contents | Electric Fuel Pump, (2) Hose Clamps, Hose Piece, Isolator, Pall Nut, Seal, Instruction Sheet |
| Item Grade | Standard Replacement |
| System Pressure | 44 psi |
| Fuel Sending Unit Included | No |
| Negative Ground | No |
| Inlet Outside Diameter | 11.0 MM |
| Outlet Outside Diameter | 0.313 IN |
| Outlet Outside Diameter | 7.9 MM |
| Length | 114.0 MM |
| Fuel Type | Gas |
| Internal Or External | Internal |
| Regulator Included | No |
| Maximum Pressure | 80.0 PS |
| Terminal Type | Blade |
| Mounting Hardware Included | Yes |
| Wire Quantity | 0 |
| Connector Shape | Rectangle |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 2 |
| Seal And Lock Ring Included | No |
| Connector Gender | Female |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Strainer Included | No |
| Inlet Type | Strainer |
| Outlet Type | Hose |
| Outlet Quantity | 1 |
| Gasket Or Seal Material | Nitrile Rubber |
| Pump Design | Turbine |
| Mounting Bracket Included | No |
| Voltage | 12.0 2H |
| Average Current Draw | 7.0 68 |
| Average Flow Rating | 32.0 GPH |
| Universal Or Specific Fit | Specific |
| Grade Type | Premium |
| Minimum Pressure | 44 PS |
| Maximum Amperage Draw | 7.0 68 |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Harmonized Tariff Code (HTS) | 8413309030 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | CN |
| UPC | 00689604076101 |
| VMRS Code | 044003259 |
| UNSPSC | 40151532 |
DELPHI FE0295 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | EP2017H, EP2024H |
| AUTOBEST | HP1482 |
| Airtex | E2158, E2173H, E2174H, E2211S, E2216S, E2217S, E2221S, E2471 |
| AutoZone | CFE0295, CFE0479 |
| BorgWarner | P402H, P405H |
| Bosch | 67115, 67120, 67121, 67125, 69132 |
| Carter | P74183, P74854S, P74849S, P88004 |
| DENSO Auto Parts | 950-0172, 951-0008 |
| EVO Driveline | AFS0315S, AFS0317S, AFS0887P, RE0315S, RE0317S, RE0887P |
| Ford | F75U 9A407-AA, F75U 9A407-BA, F75U 9H307-AC, F75U 9H307-BC, F75U 9H307-CC, F75Z 9A407-AA, F75Z 9A407-BA, F75Z 9H307-AC, F75Z 9H307-AD, F75Z 9H307-BC, F75Z 9H307-CC, F75Z 9H307-CD |
| GMB | 525-1151 |
| Import Direct | E16009 |
| Kem | EFP712 |
| Magneti Marelli | 1AMFP00151 |
| Master Parts Division | E2158 |
| Motorcraft | PFS-52, PFS-54 |
| N/A | F75U9A407AA, F75U9A407BA, F75U9H307AC, F75U9H307BC, F75U9H307CC, F75Z9A407AA, F75Z9A407BA, F75Z9H307AC, F75Z9H307BC, F75Z9H307CC |
| Niehoff | P402H, P405H |
| Precision Fuel | A30073, A30299, E16006 |
| Spectra Premium | SP1113, SP2211H, SP2217H |
| VEMO | V99090002 |
| Walbro | GCA712 |
DELPHI FE0295 Fits Vehicles
- Ford F-150 (1997-1998)
