(888) 312-8812 Login SignupDELPHI FE0096 Electric Fuel Pump
MSRP: $228.29
$9699
Save $131.30
Limited availability at this price!
In Stock
Get it by Wednesday, Jun 17

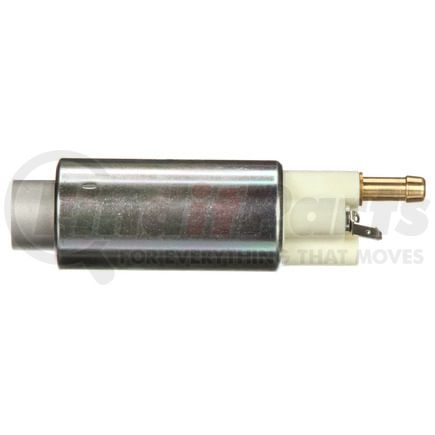

DELPHI FE0096 Part Description
Manufacturer
Product Description
Electric Fuel Pump
Features & Benefits
- Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
- Delphi pumps are designed to operate under extreme temperatures with quick engine starts
- Improved pump performance as a result of Delphi's innovative design and durability
- Restores fast pressure performance and system integrity, translating to better pumping through less energy
- Part is validated, tested and matched to the right vehicle application
- Lower amperage draws less load on vehicle's electrical system
- Always be sure to check and clean fuel tank to avoid unnecessary returns
- Always replace the fuel strainer when doing a fuel pump repair
DELPHI FE0096 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| System Pressure | 44 psi |
| Package Contents | Electric Fuel Pump, Formed Hose Piece, (2) Hose Clamps, Isolator, (2) Retaining Clips, Seal, Instruction Sheet |
| Position(s) | In-Tank |
| Fuel Sending Unit Included | No |
| Negative Ground | No |
| Inlet Outside Diameter | 22.0 MM |
| Outlet Outside Diameter | 0.313 IN |
| Outlet Outside Diameter | 7.9 MM |
| Length | 131.0 MM |
| Fuel Type | Gas |
| Internal Or External | Internal |
| Regulator Included | No |
| Maximum Pressure | 94.0 PS |
| Terminal Type | Blade |
| Mounting Hardware Included | Yes |
| Wire Quantity | 0 |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 2 |
| Seal And Lock Ring Included | No |
| Connector Gender | Male |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Strainer Included | No |
| Inlet Type | Strainer |
| Outlet Type | Hose |
| Outlet Quantity | 1 |
| Gasket Or Seal Material | Nitrile Rubber |
| Pump Design | Turbine |
| Mounting Bracket Included | No |
| Voltage | 12.0 2H |
| Average Current Draw | 6.0 68 |
| Average Flow Rating | 32.0 GPH |
| Universal Or Specific Fit | Specific |
| Grade Type | Premium |
| Connector Shape | Blade |
| Minimum Pressure | 44 PS |
| Maximum Amperage Draw | 6.0 68 |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Harmonized Tariff Code (HTS) | 8413309030 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TH |
| UPC | 00689604033647 |
| VMRS Code | 044003259 |
| UNSPSC | 40151532 |
DELPHI FE0096 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | EP360 |
| AUTOBEST | F1482, HP1482 |
| Airtex | E2061, E2194M, E2110H, E2191H, E2471, E2498, E8229 |
| AutoZone | CFE0096 |
| BorgWarner | P122, P192E, P237H, P421M, P95118E |
| Bosch | 67041, 67099, 69124 |
| Carter | P74105HP, P74117, P74119, P74638H, P74813M, P74033, P74635H, P74821H |
| DENSO Auto Parts | 950-3008, 950-3009, 951-0009, 953-4140, 953-4177 |
| DORMAN | 692-106 |
| EVO Driveline | AFS0067F, RE0067F, RE0187S, RE0506F, AFS0001P, AFS0506F, AFS0887P, AFS0976P |
| FACET FUEL PUMPS | FEP2061 |
| Ford | E5ZZ 9A407-A, E5ZZ 9A407-B, F1ZU 9A407-BA, F1ZZ 9A407-B, F1ZZ 9A407-BA, F1ZZ 9A407-CA, F4ZU 9A407-BC, F4ZZ 9350-C, F4ZZ 9350-D, F4ZZ 9A407-B, F8PZ 9A407-GB, F8PZ 9A407-HB |
| GMB | 525-1191 |
| General Motors | 25165940 |
| Kem | EFP1081H, EFP1133H, EFP220 |
| Magneti Marelli | 1AMFP00194 |
| Master Parts Division | E2061, E2194M |
| Motorcraft | PFB24, PFB-27, PFB-28, PFB-73, PFB-74 |
| N/A | 9510009, 9534140, 9534177, E5ZZ9A407A, E5ZZ9A407B, F1ZU9A407BA, F1ZZ9A407B, F1ZZ9A407BA, F1ZZ9A407CA, F4ZU9A407BC, F4ZZ9350C, F4ZZ9A407B, F7LZ9H307AC, F8PZ9350JB, F8PZ9A407GB, F8PZ9A407HB, PFB28, PFB73, USEP2061, B0014E, SP1249, P74168HP, P74151HP, P88026, P90049, E219620, 4020116 |
| Niehoff | F31, P122, P192E, P237H, P421M, P95118E |
| Precision Fuel | A20005, A20010, E16006, E16075, E16161 |
| SPECTRA PREMIUM | SP1198 |
| Spectra Premium | SP1148, SP1113, SP236H, SP237H |
| Walbro | 5CA220, 5CA260 |
DELPHI FE0096 Fits Vehicles
- Mercury Capri (1985-1986)
- Ford Taurus (1993)
- Ford Mustang (1985-1997)
