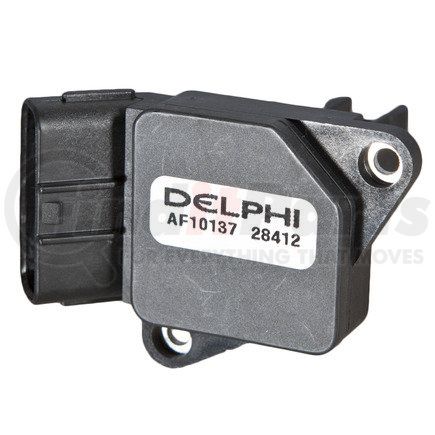

(888) 312-8812 Login SignupDELPHI AF10137 Mass Air Flow Sensor
Tap to view 7 more
MSRP: $177.59
$14349
Save $34.10
Limited availability at this price!
In Stock
Get it by Friday, Feb 6
DELPHI AF10137 Part Description
Manufacturer
Product Description
Mass Air Flow Sensor
Features & Benefits
- Delphi mass air flow sensors are the global benchmark for accuracy and signal noise
- Delphi mass air flow sensors feature high quality sensing elements for outstanding performance over a wide range of ambient temperatures
- Delphi is a manufacturer of OE mass air flow sensors since their first use over 30 years ago
- All parts are calibrated and tested to match the OE part
- Probe solution offered wherever possible to reduce repair time by eliminating the need to replace the flow tube
- Delphi OE technology validated to match the vehicle applications
DELPHI AF10137 Specifications
Product Attributes
| Item Grade | Premium |
| Package Contents | Mass Air Flow Sensor - Probe Only |
| Color | Black |
| Housing Included | No |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Standard Replacement |
| Connector Quantity | 1 |
| Connector Shape | Rectangle |
| Mounting Hole Quantity | 2 |
| Terminal Quantity | 5 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Mounting Type | Bolt-On |
| Mounting Bracket Included | No |
| Sensor Casing Length | 74 MM |
| Sensor Casing Width | 49 MM |
| Voltage | 12.0 2H |
| Gasket Or Seal Included | Yes |
| Bolt Hole Center To Bolt Hole Center | 54.60 MM |
| Mounting Hole Diameter | 4.6 MM |
| Seal Outside Diameter | 31 mm |
| Seal Quantity | 1 |
| Sensor Casing Length | 2.9 IN |
| Sensor Casing Width | 1.9 IN |
| Bolt Hole Center To Bolt Hole Center | 2.10 IN |
| Mounting Hole Diameter | 0.1 IN |
| Seal Outside Diameter | 1.2 IN |
| Intake Air Temperature (IAT) Included | Yes |
Additional Information
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 9026800000 |
| Harmonized Tariff Code (HTS) | 9026802000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| UPC | 00689604207550 |
| VMRS Code | 045021019 |
| UNSPSC | 41111931 |
DELPHI AF10137 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 2133425, 2134271 |
| Airtex | 5S2644, 5S2736 |
| BWD | 24234M, MA1056 |
| Beck/Arnley | 158-1130 |
| Blue Streak Electronics New | MF4234N |
| BorgWarner | 24234M |
| CARDONE Reman | 74-50010 |
| Carquest | 64-1764, MQ6227 |
| DENSO | 197-6070 |
| DENSO Auto Parts | 197-6070 |
| Dorman | 917-817 |
| Duralast | DL-3006 |
| GLOBAL PARTS DISTRIBUTORS | 1813142 |
| General Motors | 94859375 |
| HELLA | 009142941 |
| N/A | 7450010, 641764, 222040D010, 2220415010, 1976070, 245-1121 |
| NAPA Reman Computers | XTP450010 |
| NGK SPARK PLUGS | MG0027 |
| NTK | MG0027 |
| Richporter | MA170 |
| STANDARD IGNITION | MAS0190 |
| Spectra Premium | MA170 |
| Standard Motor Products | MF4234, MAS0190 |
| Toyota | 22204-0D010, 22204-15010 |
| VEMO | V70720297 |
| WAI | MAF10137 |
| WALKER PRODUCTS | 245-1121 |
| Wells | SU1354, SU5629 |
DELPHI AF10137 Fits Vehicles
- Toyota Corolla (2000-2002)
- Lexus SC430 (2002-2010)
- Lexus GS430 (2001-2005)
- Chevrolet Prizm (2000-2002)
