(888) 312-8812 Login SignupFRAM TG10295 Cartridge Oil Filter
Tap to view 5 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
FRAM TG10295 Part Description
Manufacturer
Product Description

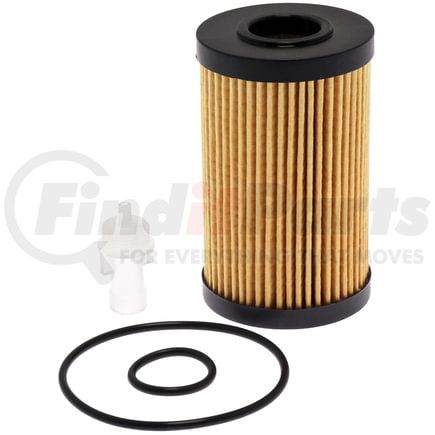

FRAM, TG10295, Oil Filter
Features & Benefits
- Proven protection for up to 15,000 miles (24,000 kilometers)
- Engineered for tough driving conditions, stop and go traffic, and hot and cold temperatures
- Synthetic blend media provides 99% dirt holding capacity
- Designed for use with synthetic or conventional motor oils
- Includes gaskets and O-rings manufactured to endure the high pressures and high temperatures in today’s engines
- Includes gaskets and O-rings manufactured to endure the high pressures and high temperatures in today's engines
Cartridge Oil Filter
FRAM TG10295 Specifications
Product Attributes
| Filter Media Material | Cellulose/Synthetic Blend |
| Height | 4.518 IN |
| Filter Type | Cartridge |
| Non Slip Grip | No |
| Anti-Drain Back Valve | No |
| Bypass Relief Valve | No |
| Drain Plug Included | Yes |
| Grade | Premium |
| Grade Type | Premium |
| Housing Color | NA |
| Inside Diameter Bottom | 1.101 IN |
| Meets Or Exceeds Original Equipment Manufacturer Specifications | Yes |
| New Or Remanufactured | New |
| O-ring (1) Inside Diameter | 1.084 IN |
| O-ring (1) Outside Diameter | 1.221 IN |
| O-ring (1) Thickness | 0.138 IN |
| O-ring Inside Diameter | 3.160 IN |
| O-ring Outside Diameter | 3.298 IN |
| O-ring Thickness | 0.140 IN |
| O-Rings Included | Yes |
| Outer Diameter Bottom | 2.700 in |
| Outer Diameter Top | 2.700 in |
| Replacable Filter | Yes |
| Reusable | No |
| Top Inside Diameter | 1.101 in |
| Torque Nut | No |
| Washable | No |
| Bottom Inside Diameter | 1.101 IN |
| Grade Type | Premium |
| Outside Diameter Top | 2.700 in |
| Replaceable Filter | Yes |
Additional Information
| Country of Origin (Primary) | BR |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100560605 |
| UNSPSC | 15121501 |
FRAM TG10295 Cross References
| Brand | Part Number |
|---|---|
| A.L. Solutions U.S. | ALO-8170 |
| Amsoil | EA15K04 |
| Bosch | 72249WS |
| Carquest | 84041, R84041 |
| Carquest Premium Filters | 84041, 84292 |
| Casite Filters | CF625 |
| Champ | P979, P979XL |
| Champion | COC10295 |
| Champion Filters | COC10295 |
| Defense Filters | DL10295 |
| Driveworks | DW-5702 |
| ECOGARD | X5702 |
| ECOGUARD | S5702 |
| EXXON/MOBIL OIL | M1C453, M1C453A |
| FRAM | M1C-453A, M1C-453, TG10295 |
| FRAM Core | COR10295ACC |
| FRAM Drive | FD10295 |
| FRAM Pro | FP10295BP |
| FRAM Synthetic Endurance | FE10295 |
| FRAM Titanium | FS10295 |
| FRAM Tough Guard | TG10295 |
| FRAM Ultra Synthetic | XG10295 |
| FVP | G7041 |
| Factory Motor Parts | G7041 |
| Firestone | P979 |
| Group 7 | V5702 |
| Hastings | LF625 |
| Inter-Continental Gear & Brake | ALO-8170 |
| K&N | HP-7018, PS-7018 |
| LUBER-FINER | P979 |
| MAHLE | OX554D2ECO |
| MOBIL OIL | M1C453, M1C453A |
| Mahle | OX554D1ECO |
| MicroGard | MGL10295, MGL57041 |
| Mighty Distributing System | M979 |
| Mobil | MO979 |
| Mobil 1 | M1C-453A, M1C-453 |
| NAPA | 7041 |
| NAPA Platinum Filters | 47041 |
| PUROLATOR | TL25702, PL25702, PBL25702 |
| Parts Master | 67041, 67041X |
| Pennzoil | PZ169 |
| Pentius | PCB10295 |
| Performax | PO-169 |
| Premium Guard | PG1010C, PG5702 |
| Promotive | PH5702 |
| Pronto | PO-5702 |
| PureZone | 8-57041 |
| Purolator | L25702 |
| Purolator BOSS | PBL25702 |
| Purolator TECH | TL25702 |
| PurolatorONE | PL25702 |
| Quaker State | QS169 |
| STP | S10295ML, S10295XL, S10295 |
| STP Filters | S10295, S10295ML, S10295XL |
| Service Champ | CF5702 |
| Tough Guard | TG10295 |
| Toyota | 04152-38020, 04152-51010, 04152-YZZA4 |
| Ultra | XG10295 |
| Valvoline | VO-96 |
| WIX FILTERS | 57041, 57041XP |
| Wix | 57041, 57041XP, 57310 |
FRAM TG10295 Fits Vehicles
- Suzuki Aerio (2002)
- Lexus IS500 (2022-2025)
- Lexus LC500 (2018-2026)
- Lexus RC F (2015-2025)
- Lexus GS F (2016-2020)
- Toyota Sequoia (2008-2022)
- Lexus LX570 (2008-2011, 2013-2021)
- Lexus IS F (2008-2014)
- Toyota Land Cruiser (2008-2011, 2013-2021)
- Toyota Tundra (2007-2021)
