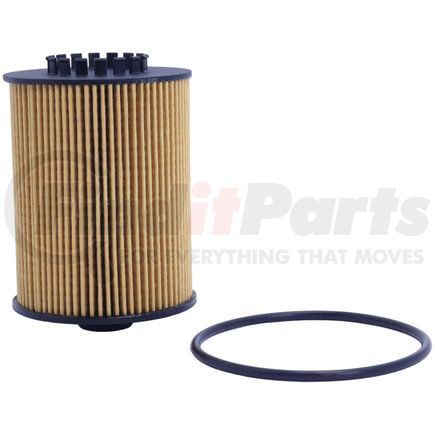

FRAM CH11242 Part Description
Manufacturer
Product Description
FRAM, CH11242, Oil Filter
Features & Benefits
- Proven protection for up to 10,000 miles (16,000 kilometers)
- Engineered for use with synthetic or conventional motor oils
- Filter media is a blend of fiber and resin that captures 95% of the dirt particles
- The perfect balance of dirt-trapping efficiency and dirt-holding capacity
- Includes gaskets and O-rings manufactured to endure the high pressures and high temperatures in today’s engines
- Includes gaskets and O-rings manufactured to endure the high pressures and high temperatures in today's engines
Cartridge Oil Filter
FRAM CH11242 Specifications
Product Attributes
| Filter Media Material | Cellulose/Synthetic Blend |
| Height | 4.669 IN |
| Grade Type | Regular |
| Filter Type | Cartridge |
| Non Slip Grip | No |
| Anti-Drain Back Valve | No |
| Bypass Relief Valve | No |
| Grade | Advanced |
| Housing Color | NA |
| Inside Diameter Bottom | Closed |
| Meets Or Exceeds Original Equipment Manufacturer Specifications | Yes |
| New Or Remanufactured | New |
| O-ring (1) Inside Diameter | 0.729 IN |
| O-ring (1) Outside Diameter | 0.827 IN |
| O-ring (1) Thickness | 0.099 IN |
| O-ring Inside Diameter | 3.585 IN |
| O-ring Outside Diameter | 3.743 IN |
| O-ring Thickness | 0.158 IN |
| O-Rings Included | Yes |
| Outer Diameter Bottom | 3.172 in |
| Outer Diameter Top | 3.172 in |
| Replacable Filter | Yes |
| Reusable | No |
| Top Inside Diameter | 0.662 in |
| Torque Nut | No |
| Washable | No |
| Bottom Inside Diameter | Closed |
| Outside Diameter Top | 3.172 in |
| Replaceable Filter | Yes |
Additional Information
| Country of Origin (Primary) | MY |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100550767 |
| UNSPSC | 15121501 |
FRAM CH11242 Cross References
| Brand | Part Number |
|---|---|
| BALDWIN | P40035 |
| Carquest | 84462 |
| Champ | P998 |
| Champion | COC11242 |
| Champion Filters | COC11242 |
| DENSO | 150-3106 |
| ECOGARD | X10023 |
| ECOGUARD | X10023 |
| FRAM Drive | FD11242 |
| FVP | G7462 |
| Factory Motor Parts | G7462 |
| Hastings | LF690 |
| LUBER-FINER | P998 |
| MAHLE | OX983DECO, OX 983D ECO, OX 983D, OX983D |
| MANN-HUMMEL FILTERS | HU8009Z |
| MicroGard | MGL57462 |
| MicroGard Select | MSL57462 |
| MotoMaster | MCH11242 |
| NAPA | 7462 |
| PREMIUM GUARD | PG6293EX |
| PUREPRO | P998 |
| PUROLATOR | PL26293 |
| Parts Master | 67462 |
| Premium Guard | PG6293 |
| Premium Guard Extended Life | PG6293EX |
| PureZone | 8-57462 |
| Purolator | L26293 |
| STP | S11242 |
| STP Filters | S11242 |
| Service Champ | CF6293 |
| Valvoline | VO-133 |
| Volkswagen | 03H 115 562, 958 107 222 10 |
| WIX FILTERS | 57462 |
| Wix | 57462 |
FRAM CH11242 Fits Vehicles
- Suzuki Aerio (2002)
- Volkswagen Atlas Cross Sport (2020-2023)
- Volkswagen Atlas (2018-2023)
- Volkswagen CC (2013-2017)
- Volkswagen Touareg (2012-2017)
- Porsche Cayenne (2012-2014, 2016-2018)
- Volkswagen Passat (2012-2018)
