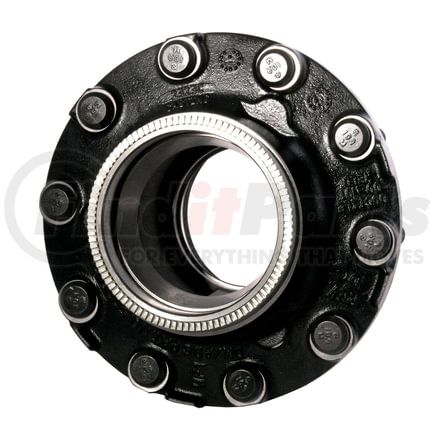

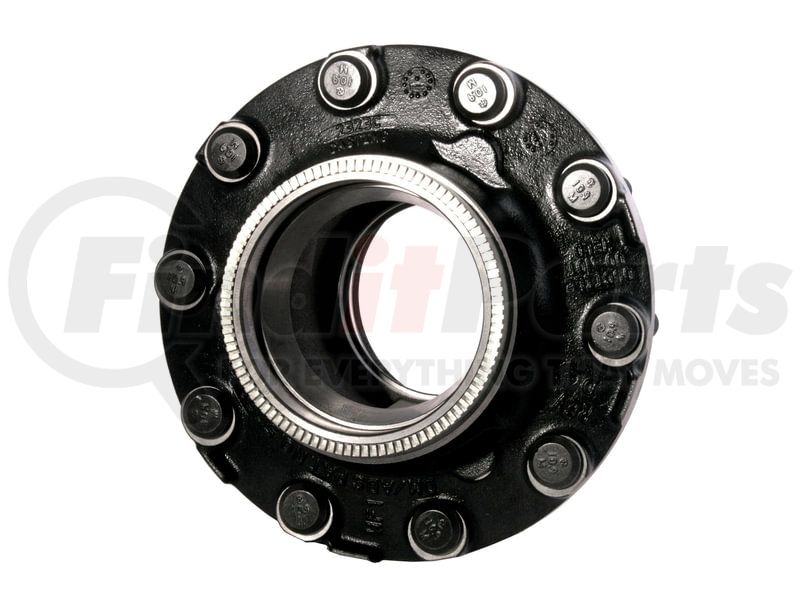

WEBB 23231--3T - 10 Stud, with 11.25 Dia. Bolt Circle, Outboard Drum
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
WEBB part description
California Proposition 65 Warning
California Proposition 65 Warning
HUB INFORMATION
| Part Number | 23231--3T |
| Hub Number | 2323 |
| Description | 10 Stud Hub w/11.25 Dia. Bolt Circle. Uses Outboard Drum (M22 x 1.5) Serrated Stud |
| Hub Material | Cast |
| Mounting Type | FN |
| Drum Type | Outboard |
| Disc Wheel | Steel (Dual) |
| Wheel Stud | 101162 |
| Stud Stand Out | 3.03 |
| ABS Ring | Direct Machined ABS |
| Drum Options | 61577F, 68985F, 66800F, 66864F, 66884F, 66814F, 66854F, 66871B |
| Drum Type | Outboard |
| Number of Studs | 10 |
| Bolt Circle | 11.25 |
| Stud Description | M22 x 1.5MM Serrated Stud |
| Outer Bearing Cup | HM518410 |
| Outer Bearing Cone | HM518445 |
| Inner Bearing Cup | HM518410 |
| Inner Bearing Cone | HM518445 |
| Webb Axle Group | 4 |
| Cup Code | 1 |
| Notes | Stud Standout (Cast drums): Dimensions shown are for brake drums having (.50) back plate thickness. Deduct (.06) from these dimensions when using brake drums having (.56) back plate thickness. Add (.25) to these dimensions when using brake drums having This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. This hub is approved for the "Super Single" Tire with 2.00 outset - Hub Dynamic Capacity is reduced to 11,000 lbs. |
WEBB 23231--3T Cross Reference
We have 2 alternatives for the 23231--3T by WEBB:
In business since 1946, Webb® has been a trusted brand for high-quality brake and wheel hub components in the heavy duty transportation industry. The company maintains an extensive catalog of OEM and aftermarket brake drums, brake rotors and calipers, and wheel hubs for Class 6, 7, and 8 trucks and heavy duty trailers. Each Webb product is made of premium materials and engineered for reduced weight without compromising structural strength or balance. All parts are also manufactured using the latest innovations, including advanced wear indicators and cool running vent technology to help minimize wear and make maintenance and repairs easier. Combined with a first-class customer service and after-sales support, customers can count on Webb products to keep their trucks running safely and smoothly for years to come.
