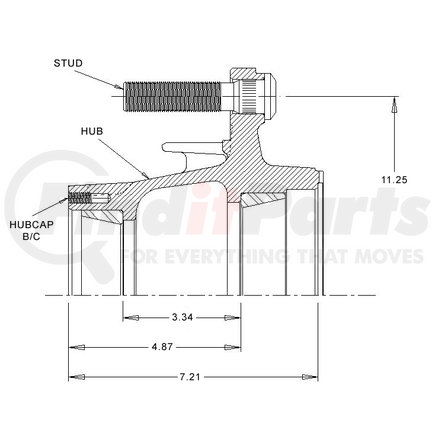

(888) 312-8812 Login SignupWEBB 20231--3T Hub - 10 Stud, with 11.25 (285.75 mm) Dia. Bolt Circle, Outboard Drum (M22 x 1.5) Serrated Stud
Tap to view 7 more
MSRP: $375.18
$30599
Save $69.19
Limited availability at this price!
In Stock
Get it by Wednesday, Jul 8
WEBB 20231--3T Part Description
Manufacturer
Features & Benefits
- Stud hardware uses a serrated design to prevent the bolts from spinning or loosening
- Fits the specific 11.25 inch bolt circle pattern found on standard truck axles
- Hub casting provides the necessary strength to support the weight of a dual wheel
- Supports outboard drum configurations to allow for easier service of the braking system
Webb Wheel Hub
Maintain proper wheel alignment and axle stability with the Webb Wheel Hub. This ten-stud wheel hub is specifically designed for dual wheel mounting or single wheels with a maximum offset of 1/2 inch to ensure correct tracking. The heavy-duty casting features an 11.25-inch bolt circle to provide a secure foundation for outboard-mounted brake drums. That precise machining allows the serrated M22 x 1.5 studs to stay firmly in place under the high torque of heavy-haul operations. Every Webb 20231-3T unit undergoes rigorous balance testing to prevent the vibration and heat buildup that can lead to premature bearing failure.
HUB INFORMATION
| Part Number | 20231--3T |
| Hub Number | 2023 |
| Description | 10 Stud Hub w/11.25 (285.75MM)Dia. Bolt Circle. Uses Outboard Drum (M22 x 1.5) Serrated Stud |
| Hub Material | Cast |
| Mounting Type | FN |
| Drum Type | Outboard |
| Disc Wheel | Steel (Dual) |
| Wheel Stud | 101162 |
| Stud Stand Out | 3.03 |
| ABS Ring | Direct Machined ABS |
| Drum Options | 61577F, 68985F, 66800F, 66864F, 66884F, 66814F, 66854F, 66871B |
| Drum Type | Outboard |
| Number of Studs | 10 |
| Bolt Circle | 11.25 |
| Stud Description | M22 x 1.5MM Serrated Stud |
| Outer Bearing Cup | HM212011 |
| Outer Bearing Cone | HM212049 |
| Inner Bearing Cup | HM218210 |
| Inner Bearing Cone | HM218248 |
| Webb Axle Group | 2 |
| Cup Code | 1 |
| Notes | Stud Standout (Cast drums): Dimensions shown are for brake drums having (.50) back plate thickness. Deduct (.06) from these dimensions when using brake drums having (.56) back plate thickness. This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. Grease Hubcap Kit: 73655. |
WEBB 20231--3T Cross References
| Brand | Part Number |
|---|---|
| 9348PA6035, WEB20231--3T, WWD202313T | |
| NAVISTAR | FLTHUBNSTW |
| WALTHER EMC | 10-00106-102 |
