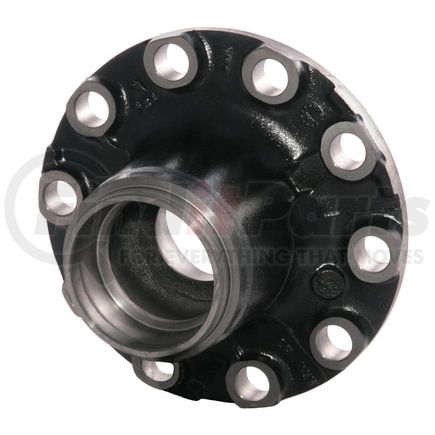

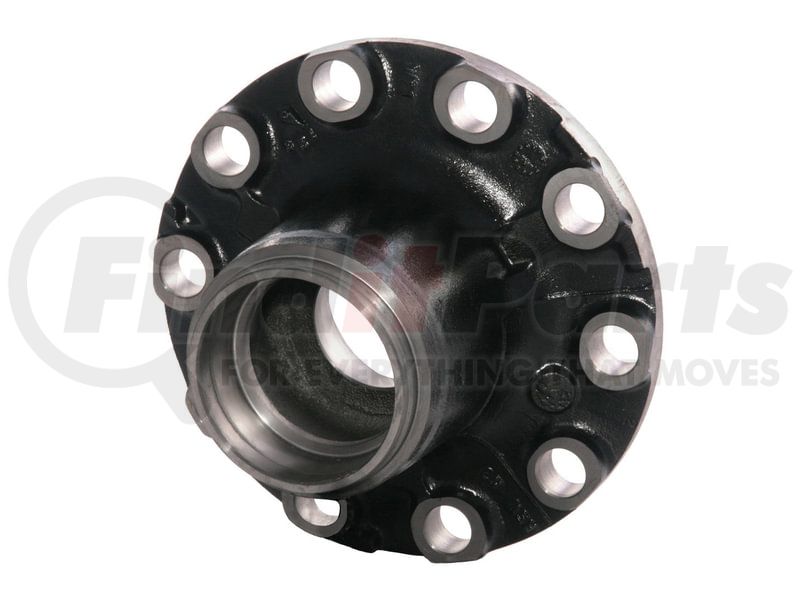

WEBB part description

Specifications

Hub Number 1550
Hub Material Cast
Mount Type BSN
Drum Type Rotor
Drum Options 54770P-65
Number of Studs 6
Bolt Circle Diameter 8.75
Stud Description 3/4"-16 Shoulder Stud
Outer Bearing Cup 25820
Outer Bearing Cone 25877
Inner Bearing Cup JM207010
Inner Bearing Cone JM207049A
Web Axle Group 14
Cup Code 1
Special Information Hubcap not Available from Webb Rotor Mounting Bolt: QTY 6--P/N 87511(3/4"-10 Thread Dia.). Rotor Mounting Bolt Washer: QTY 6--P/N 257

Axle Manufacturer

ArvinMeritor (Rockwell)
FC-941, MFS-8

Dana Spicer (Eaton)
I-80

Westport
F4W-0800

WEBB 15501--N Cross Reference

We have 2 alternatives for the 15501--N by WEBB:

In business since 1946, Webb® has been a trusted brand for high-quality brake and wheel hub components in the heavy duty transportation industry. The company maintains an extensive catalog of OEM and aftermarket brake drums, brake rotors and calipers, and wheel hubs for Class 6, 7, and 8 trucks and heavy duty trailers. Each Webb product is made of premium materials and engineered for reduced weight without compromising structural strength or balance. All parts are also manufactured using the latest innovations, including advanced wear indicators and cool running vent technology to help minimize wear and make maintenance and repairs easier. Combined with a first-class customer service and after-sales support, customers can count on Webb products to keep their trucks running safely and smoothly for years to come.
