Webb 10519--MRT80 - HUB ASMB
$97749
In stock
limited availability at this price!
. Learn more
WEBB part description
HUB INFORMATION
Part Number: 10519--MRT80
Hub Number: 1051

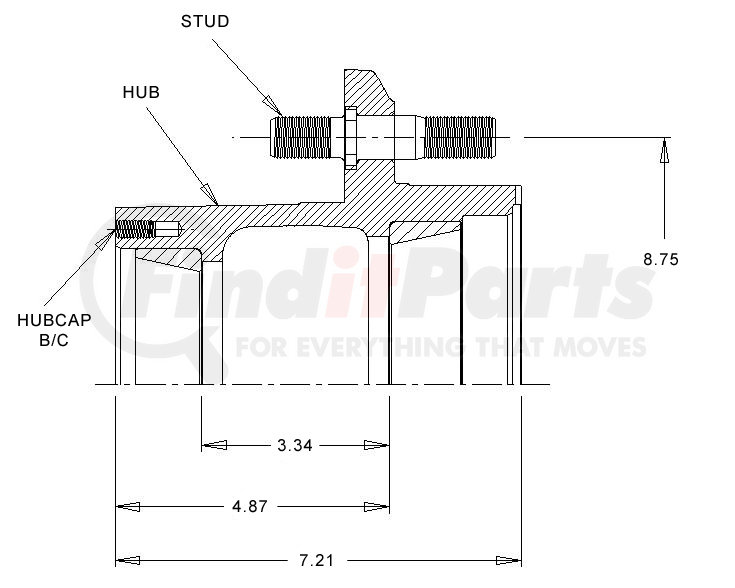

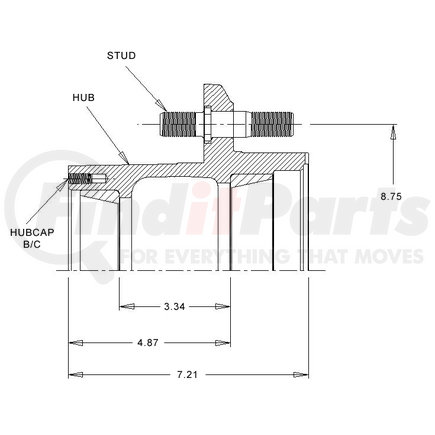

Description: 10 Stud Hub w/8.75 Dia. Bolt Circle. Uses Inboard Drum (3/4"-16) Shoulder Stud
Hub Material: Cast
Mounting Type: BSN
Drum Type: Inboard
Disc Wheel: Steel/Alum (Dual)
Wheel Stud: 139902
Stud Stand Out: 1.33
ABS Ring: Direct Machined ABS
Drum Options: 63630F, 63631F
Drum Type: Inboard
Number of Studs: 10
Bolt Circle: 8.75
Stud Description: 3/4"-16 Shoulder Stud
Outer Bearing Cup: HM212011
Outer Bearing Cone: HM212049
Inner Bearing Cup: HM218210
Inner Bearing Cone: HM218248
Webb Axle Group: 2
Cup Code: 1
Notes:
This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. A longer stud standout is not necessary when using Grade 8 inner cap nuts with aluminum disc wheels.
Grease Hubcap Kit: 73655
Drum Fasteners: Flat Washer--P/N 257. Lock Nut: P/N 75716
