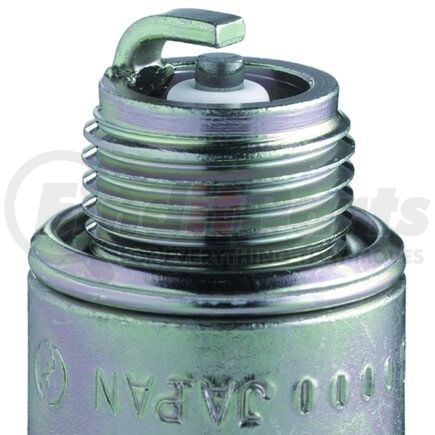

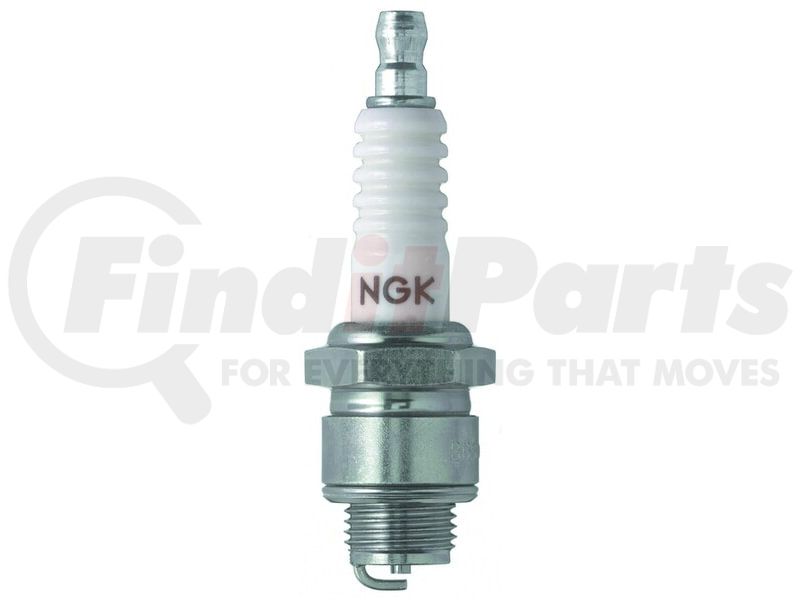

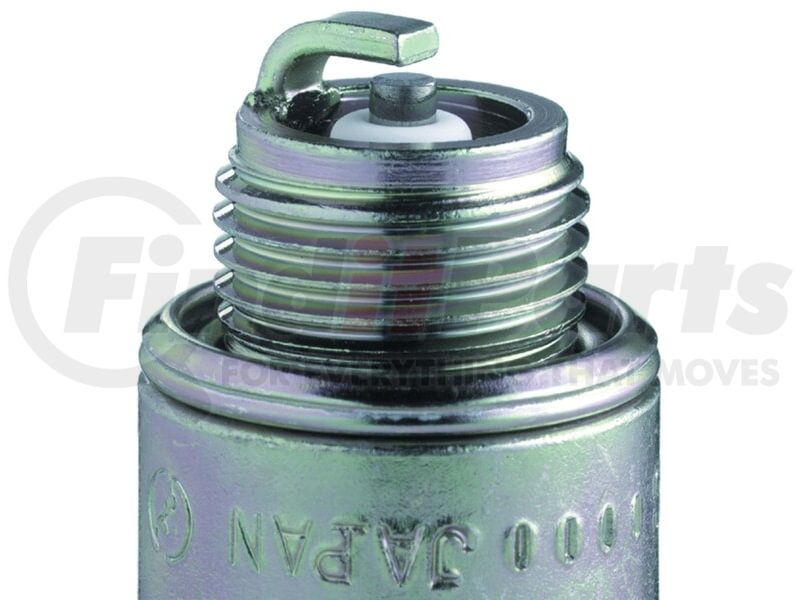

(888) 312-8812 Login SignupNGK SPARK PLUGS B2 NGK Standard Spark Plug
Tap to view 2 more
$3.23
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
NGK SPARK PLUGS B2 Part Description
Manufacturer
Product Description
NGK Standard Spark Plug
Features & Benefits
- ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction nickel alloy center electrode provides consistent performance
- RECOMMENDED USAGE: Best for vehicles with OE nickel alloy plugs, not recommended on vehicles with factory precious metal plugs
- NGK's OE CERAMIC TECHNOLOGY: High grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
NGK SPARK PLUGS B2 Specifications
Product Attributes
| Thread Diameter | 0.551 IN |
| Insulator Material | Ceramic |
| Resistor Type | No |
| Skirt Length | 0.0 IN |
| Ground Electrode Tip Material | Nickel |
| Skirt | No |
| Center Electrode Insulator Tip Projection | 0.08 IN |
| Center Electrode Design | Standard |
| Washer Type | Crush |
| Center Electrode Projection | Mid Projection |
| Part Number | B-2 |
| Stock Number | 3110 |
| Short Style Spark Plug | No |
| Service Number | B-2 |
| Resistance | 0.0 82 |
| Ground Electrode Tip Design | Standard |
| Ground Configuration | J-Gap |
| Ground Electrode Core Material | Nickel |
| Washer(s) Included | Yes |
| Grade Type | Standard Replacement |
| Electrical Terminal Type | Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Nickel |
| Pre-Gap Size | .028 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 13/16" |
| Insulator Height | 2.22 IN |
| Manufacturer Heat Range | 2 |
| Seat Type | Flat |
| Reach | 0.375 IN |
| Metallurgy | Copper |
| Thread Type Standard | Metric |
| Pre-Gap Size | 0.7 MM |
| Insulator Height | 56.5 MM |
| Reach | 9.5 MM |
| 6648 | 0.0 MM |
| Thread Size | M14 - 1.25 |
| Center Electrode Insulator Tip Projection | 2.0 MM |
Additional Information
| Warranty Time UOM | MO |
| Warranty Time | 2 |
| Country of Origin (Primary) | JP |
| Harmonized Tariff Code (HTS) | 8511100000 |
| UPC | 00087295131107 |
| VMRS Code | 033003005 |
| UNSPSC | 26101732 |
NGK SPARK PLUGS B2 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | TC49, C49 |
| AUTOLITE | 458 |
| Autolite | 298, 308, 318, 216, 358, 216DP |
| Bosch | WR9ECO, W12E |
| CHAMPION | 592 |
| Champion Spark Plug | J12J, J14J |
| DENSO Auto Parts | 6004, W9PR-U15, 5041, W9, W9-U |
| Honda | 98073-52710 |
| Kawasaki | 311228-8410-02, 92070-2094 |
| Magneti Marelli | CW2C, CW2CJ |
| Motorcraft | A11, A11U, A11X, AT10 |
| N/A | B-2 |
| NGK | 3110 |
