NGK SPARK PLUGS PTR5D10 Part Description
Manufacturer
Product Description

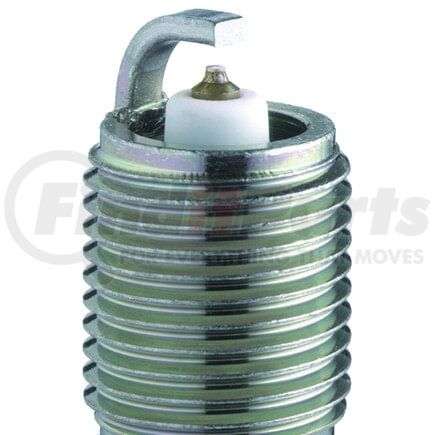

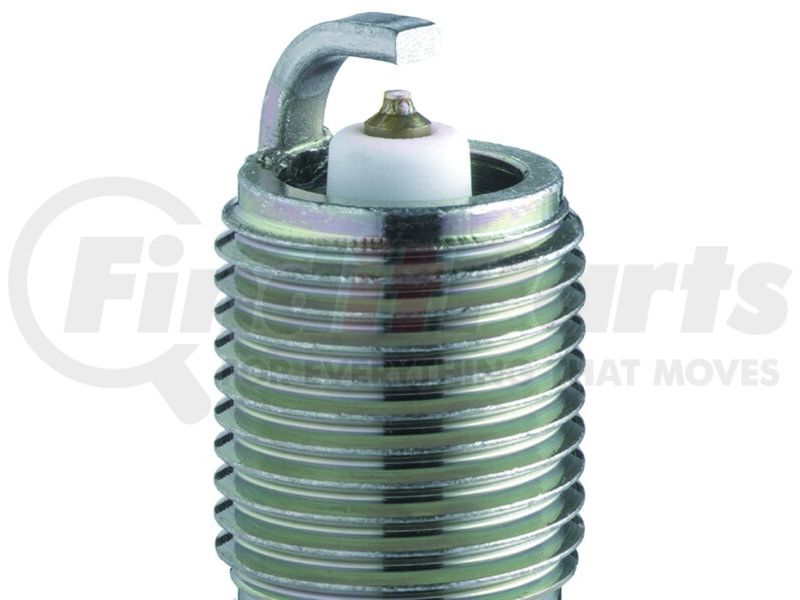

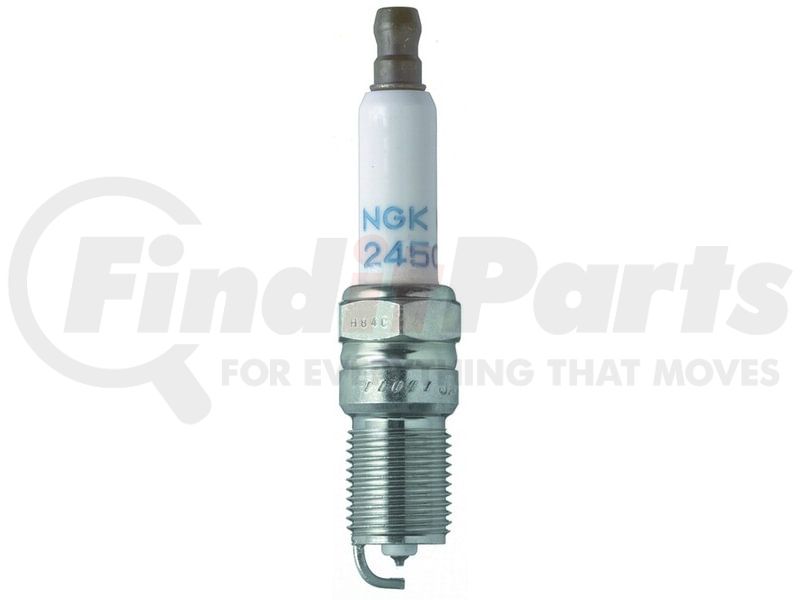

NGK Laser Platinum Spark Plug
Features & Benefits
- ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction fine wire platinum alloy center electrode provides consistent performance
- PLATINUM ALLOY CENTER ELECTRODE: Longer wearing and higher temperature resistance compared to traditional nickel spark plugs
- PLATINUM TIP GROUND ELECTRODE: Unless OE specified, platinum protection at the ground electrode provides excellent ignitability and service life
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
- RECOMMENDED USAGE: Best for vehicles with OE fine wire platinum alloy plugs
NGK SPARK PLUGS PTR5D10 Specifications
Product Attributes
| Short Style Spark Plug | No |
| Part Number | PTR5D-10 |
| Stock Number | 3784 |
| Service Number | PTR5D-10 |
| Resistance | 5000.0 82 |
| Ground Electrode Tip Design | Standard |
| Ground Configuration | J-Gap |
| Ground Electrode Core Material | Nickel |
| Washer(s) Included | No |
| Grade Type | Performance |
| Electrical Terminal Type | Non-Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Platinum |
| Pre-Gap Size | .040 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 5/8" (16mm) |
| Insulator Height | 2.07 IN |
| Manufacturer Heat Range | 5 |
| Seat Type | Tapered |
| Reach | 0.689 IN |
| Thread Diameter | 0.551 IN |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| Skirt Length | 0.0 IN |
| Ground Electrode Tip Material | Platinum |
| Skirt | No |
| Center Electrode Insulator Tip Projection | 0.14 IN |
| Center Electrode Design | Fine Wire |
| Center Electrode Projection | Mid Projection |
| Thread Size | M14 - 1.25 |
| Metallurgy | Double Platinum |
| Thread Type Standard | Metric |
| Pre-Gap Size | 1.0 MM |
| Insulator Height | 52.5 MM |
| Reach | 17.5 MM |
| 6648 | 0.0 MM |
| Center Electrode Insulator Tip Projection | 3.5 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8511100000 |
| Warranty Time UOM | MO |
| Warranty Time | 2 |
| Country of Origin (Primary) | JP |
| UPC | 00087295137840 |
| VMRS Code | 033003005 |
| UNSPSC | 26101732 |
NGK SPARK PLUGS PTR5D10 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 41-805, 41-962 |
| AUTOLITE | APP5245 |
| Autolite | APP104, APP104DP2, APP106, APP105 |
| Bosch | 8104, HR8DPP33X, 4304, HR8LPP33U, HGR8DDP, HGR9DDP, 8119, 4305 |
| CHAMPION | 304, 7304 |
| Champion Spark Plug | 7015-2 |
| DENSO Auto Parts | IT16TT, 4713, PT16TT, 4511 |
| E3 SPARK PLUGS | E354 |
| Motorcraft | AGRF22PP1, AGSF32FEM |
| N/A | PTR5D-10 |
| NGK | 3784 |
| WAGNER | 304 |
NGK SPARK PLUGS PTR5D10 Fits Vehicles
- Chevrolet Suburban 3500 HD (2016-2017)
- GMC Sierra 1500 HD Classic (2007)
- Chevrolet Silverado 1500 HD Classic (2007)
- GMC Sierra 3500 Classic (2007)
- GMC Sierra 2500 HD Classic (2007)
- GMC Sierra 1500 Classic (2007)
- Chevrolet Silverado 3500 Classic (2007)
- Chevrolet Silverado 2500 HD Classic (2007)
- Chevrolet Silverado 1500 Classic (2007)
- Cadillac Escalade EXT (2002-2013)
- Cadillac Escalade ESV (2003-2014)
- Chevrolet Trailblazer EXT (2003-2006)
- GMC Envoy XUV (2004-2005)
- GMC Envoy XL (2003-2006)
- Chevrolet SS (2014-2017)
- GMC Savana 4500 (2009-2016)
- Chevrolet Express 4500 (2009-2016)
- Chevrolet Caprice (2011-2017)
- Hummer H3T (2009-2010)
- GMC Canyon (2009-2012)
- Chevrolet Colorado (2009-2012)
- Buick Allure (2008-2009)
- Hummer H3 (2008-2010)
- Pontiac G8 (2008-2009)
- Chevrolet Silverado 3500 HD (2007-2017)
- GMC Sierra 3500 HD (2007-2017)
- Buick LaCrosse (2008-2009)
- Chevrolet Avalanche (2007-2013)
- Chevrolet Monte Carlo (2006-2007)
- Chevrolet Trailblazer (2006-2009)
- Chevrolet Impala (2006-2009)
- Hummer H2 (2003-2009)
- Saab 9-7x (2005-2009)
- Pontiac Grand Prix (2005-2008)
- GMC Envoy (2005-2009)
- Cadillac STS (2005-2006)
- Pontiac GTO (2004-2006)
- Chevrolet SSR (2003-2006)
- Cadillac SRX (2004-2006)
- Cadillac CTS (2004-2007)
- Buick Rainier (2004-2007)
- Aston Martin DB7 (2004)
- Ford Ranger (1989-1993)
- Ford Mustang (1991-1993)
- Pontiac Sunfire (1998-2002)
- Pontiac Firebird (1998-2002)
- GMC Yukon XL 1500 (2000-2014)
- GMC Yukon XL 2500 (2000-2013)
- GMC Yukon (2000-2014)
- GMC Sierra 3500 (2001-2006)
- GMC Sierra 2500 HD (2001-2017)
- GMC Sierra 2500 (1999-2004)
- GMC Sierra 1500 HD (2001-2003, 2005-2006)
- GMC Savana 3500 (2003-2017)
- GMC Sierra 1500 (1999-2013)
- GMC Savana 2500 (2003-2017)
- GMC Savana 1500 (2003-2014)
- GMC Sonoma (1998-2003)
- Chevrolet Tahoe (2000-2014)
- Chevrolet Suburban 2500 (2000-2013)
- Chevrolet Suburban 1500 (2000-2014)
- Chevrolet Silverado 3500 (2001-2006)
- Chevrolet Silverado 2500 HD (2001-2017)
- Chevrolet Silverado 2500 (1999-2004)
- Chevrolet Silverado 1500 HD (2001-2003, 2005-2006)
- Chevrolet Silverado 1500 (1999-2013)
- Chevrolet S10 (1998-2003)
- Chevrolet Express 3500 (2003-2017)
- Chevrolet Express 2500 (2003-2017)
- Chevrolet Express 1500 (2003-2014)
- Chevrolet Corvette (1997-2013)
- Chevrolet Cavalier (1998-2002)
- Chevrolet Camaro (1998-2002, 2010-2015)
- Chevrolet Avalanche 1500 (2002-2006)
- Cadillac XLR (2004-2006)
- Cadillac Escalade (2002-2014)
- Isuzu Hombre (1998-2000)
- Isuzu Ascender (2003-2006)
- Panoz AIV Roadster (1999-2000)
- Panoz Esperante (2001-2005)
