(888) 312-8812 Login SignupNGK SPARK PLUGS GR5 NGK V-Power Spark Plug
Tap to view 4 more
$3.44
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
NGK SPARK PLUGS GR5 Part Description
Manufacturer
Product Description

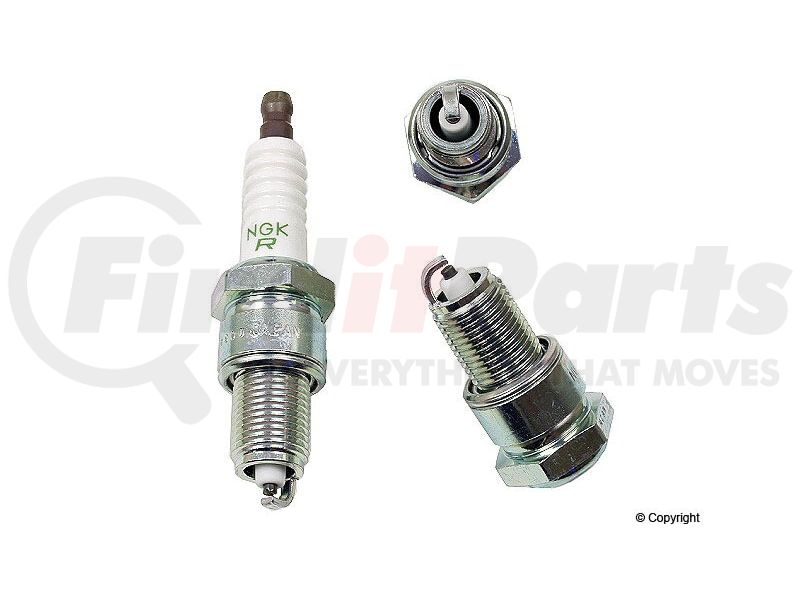

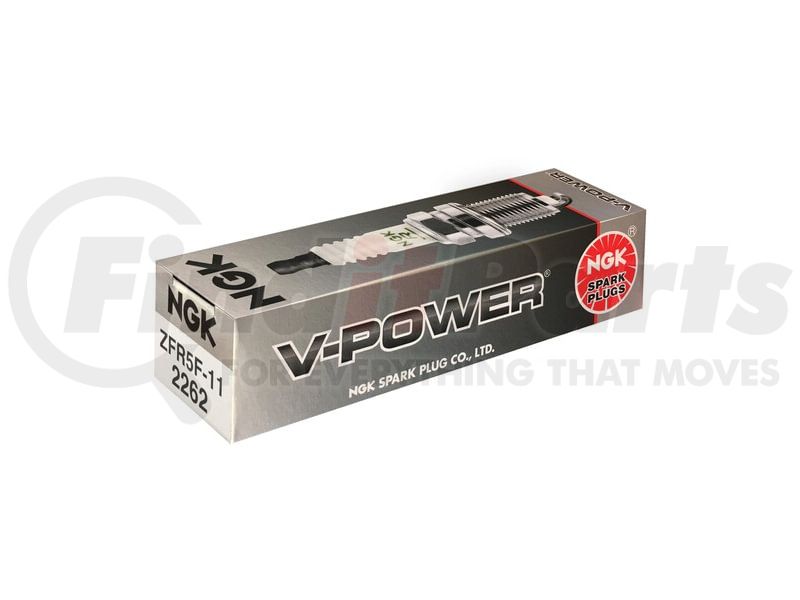

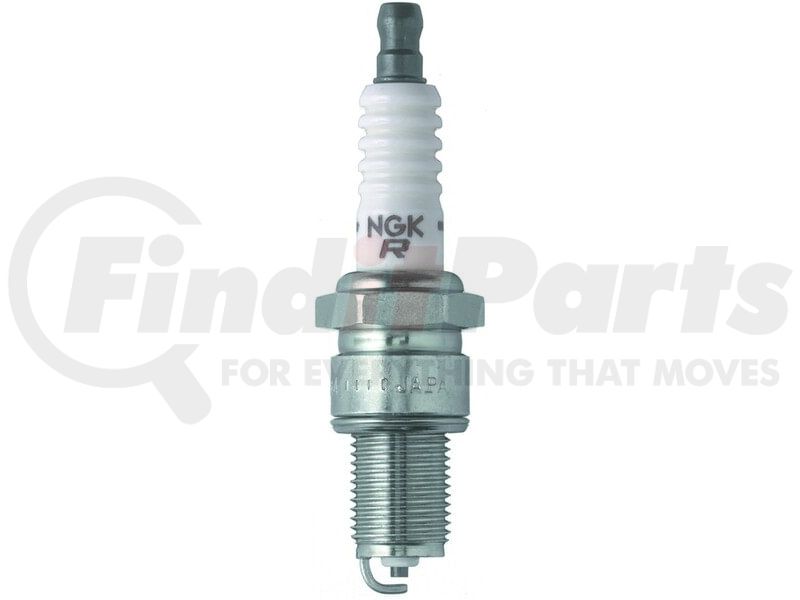

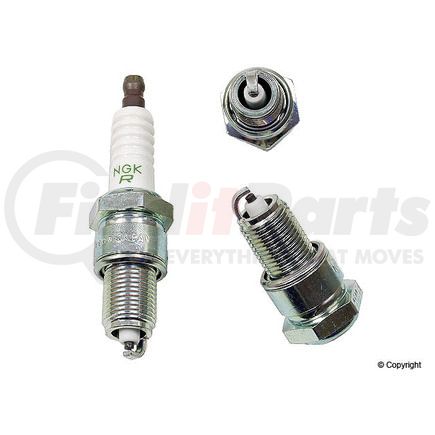

NGK V-Power Spark Plug
Features & Benefits

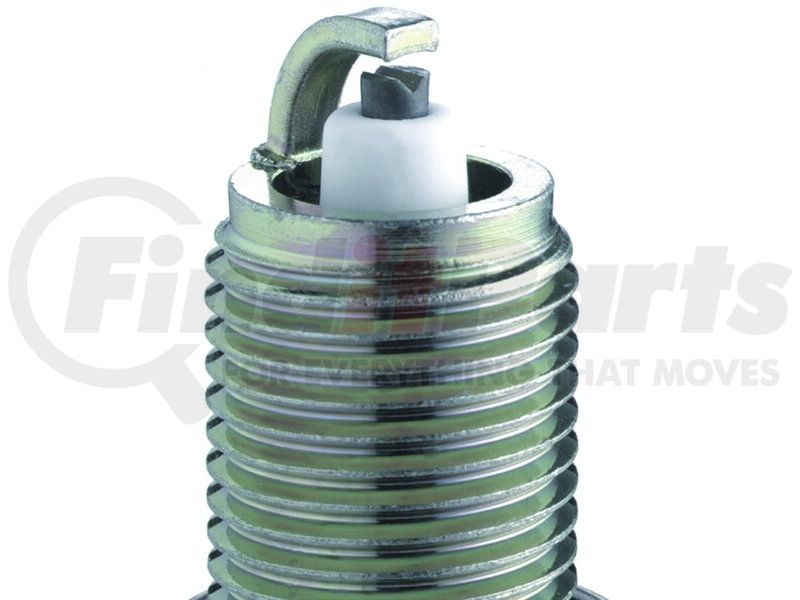

- ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction nickel alloy center electrode with V-groove provides consistent performance
- RECOMMENDED USAGE: Best for vehicles with OE nickel alloy plugs, not recommended on vehicles with factory precious metal plugs
- NGK's OE CERAMIC TECHNOLOGY: High grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
NGK SPARK PLUGS GR5 Specifications
Product Attributes
| Part Number | GR5 |
| Stock Number | 2851 |
| Short Style Spark Plug | No |
| Service Number | GR5 |
| Resistance | 5000.0 82 |
| Ground Electrode Tip Design | Standard |
| Ground Configuration | J-Gap |
| Ground Electrode Core Material | Nickel |
| Washer(s) Included | Yes |
| Grade Type | Standard Replacement |
| Electrical Terminal Type | Non-Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Nickel |
| Pre-Gap Size | .040 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 13/16" |
| Insulator Height | 2.20 IN |
| Manufacturer Heat Range | 5 |
| Seat Type | Flat |
| Reach | 0.750 IN |
| Thread Diameter | 0.551 IN |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| Skirt Length | 0.0 IN |
| Ground Electrode Tip Material | Nickel |
| Skirt | No |
| Center Electrode Insulator Tip Projection | 0.16 IN |
| Center Electrode Design | Standard |
| Washer Type | Crush |
| Center Electrode Projection | Mid Projection |
| Thread Size | M14 - 1.25 |
| Metallurgy | Copper |
| Thread Type Standard | Metric |
| Pre-Gap Size | 1.0 MM |
| Insulator Height | 56.0 MM |
| Reach | 19.0 MM |
| 6648 | 0.0 MM |
| Center Electrode Insulator Tip Projection | 4.0 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8511100000 |
| Warranty Time UOM | MO |
| Warranty Time | 2 |
| Country of Origin (Primary) | JP |
| UPC | 00087295128510 |
| VMRS Code | 033003005 |
| UNSPSC | 26101732 |
NGK SPARK PLUGS GR5 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | R42XLS6, R42XLS, CR42CXLS, R42CXLS, R43XLS |
| Autolite | 64, 4263, 3203, 3204, 64DP, 64BP, 64DP2 |
| Beck/Arnley | 1765190 |
| Bosch | WR6D, WR6DCX, WR7DC, WRDCX, 7501, W7DCR, WR6DC, WR7D, WR7DCX, 7595 |
| CHAMPION | 405 |
| DENSO Auto Parts | 3022, W16EPR-U10 |
| E3 SPARK PLUGS | E346, E334 |
| E3 Spark Plugs | E3.46 |
| Motorcraft | AGR22, AGR22C, AGR32, AGR32C, AGS32CF4 |
| N/A | GR5 |
| NGK | 2851 |
NGK SPARK PLUGS GR5 Fits Vehicles
- International MS1210 (1972-1974)
- International MHC1310 (1974)
- International M800 Post Office (1972)
- International M1200 (1972)
- International M1100 (1972)
- International 200 (1974)
- International 1310 (1972-1973)
- International 1210 (1972-1973)
- International 1110 (1972-1973)
- International 1010 (1972-1973)
- International 100 (1974)
- Pontiac Parisienne (1961)
- Plymouth Satellite (1965-1967)
- Plymouth Fury (1964-1966)
- Plymouth Cuda (1970-1971)
- Plymouth Belvedere (1966)
- GMC K35/K3500 Pickup (1968-1969)
- GMC K25/K2500 Suburban (1968)
- GMC K25/K2500 Pickup (1968-1969)
- GMC K15/K1500 Suburban (1968)
- GMC K15/K1500 Pickup (1968-1969)
- GMC C35/C3500 Pickup (1968-1969)
- GMC C25/C2500 Suburban (1968-1969)
- GMC C25/C2500 Pickup (1968-1969)
- GMC C15/C1500 Suburban (1968-1969)
- GMC C15/C1500 Pickup (1968-1969)
- Dodge Polara (1966)
- Dodge Coronet (1966-1971)
- Dodge Charger (1967)
- Chevrolet Nova (1970)
- Chevrolet Malibu (1966-1967)
- Chevrolet K30 Pickup (1968-1969)
- Chevrolet K20 Pickup (1968-1969)
- Chevrolet K10 Suburban (1968-1969)
- Chevrolet K10 Pickup (1968-1969)
- Chevrolet Impala (1961-1969)
- Chevrolet El Camino (1966-1970)
- Chevrolet Corvette (1966-1969)
- Chevrolet Chevy II (1968)
- Chevrolet Chevelle (1966-1969)
- Chevrolet Caprice (1966-1969)
- Chevrolet Camaro (1967-1969)
- Chevrolet C30 Pickup (1968-1969)
- Chevrolet C20 Suburban (1968-1969)
- Chevrolet C20 Pickup (1968-1969)
- Chevrolet C10 Suburban (1968-1969)
- Chevrolet C10 Pickup (1968-1969)
- Chevrolet Biscayne (1961-1969)
- Chevrolet Bel Air (1961-1969)
- Pontiac Sunburst (1985-1988)
- Pontiac Firefly (1985-1988)
- Ford Pinto (1971-1973, 1975-1976)
- Ford Mustang II (1974-1976)
- Ford Courier (1972-1979, 1981)
- Pontiac Sunbird (1986-1990, 1992-1994)
- Pontiac J2000 Sunbird (1984-1985)
- Pontiac J2000 (1982-1983)
- Pontiac Grand Am (1987-1989)
- Geo Spectrum (1989)
- GMC S15 (1982-1985)
- GMC S15 Jimmy (1983-1984)
- Chevrolet Sprint (1985-1988)
- Chevrolet Spectrum (1985-1988)
- Chevrolet S10 (1982-1985)
- Chevrolet S10 Blazer (1983-1984)
- Buick Skyhawk (1982-1987)
