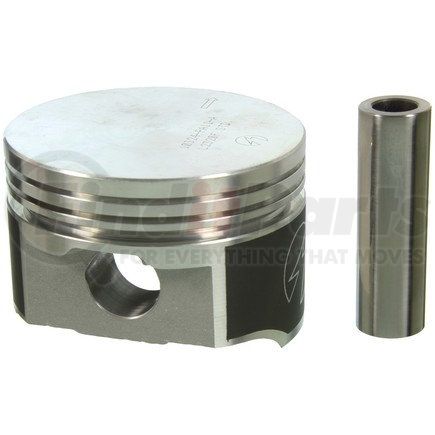

(888) 312-8812 Login SignupSEALED POWER L-2320F "Speed Pro" POWERFORGED Engine Piston Set
Tap to view 1 more
$80792
Package Price for 8 Units
@ $100.99 per unit
Limited availability at this price!
In Stock
Get it by Monday, Aug 10
SEALED POWER L-2320F Part Description
Manufacturer
Product Description
Engine Piston Set
Application Summary
1968 Oldsmobile Delmont 88 (Liter: 5.7 & Engine(cc): 5733 & Engine(ci): 350 & Cylinder: 8 & Block: V & Bore(in): 4.06, 3.88 & Bore(mm): 103.0, 98.4 & Stroke(in): 3.39, 3.75 & Stroke(mm): 86.0, 95.3); 1968-1971 Oldsmobile F85 (Liter: 5.7 & Engine(cc): 5733 & Engine(ci): 350 & Cylinder: 8 & Block: V & Bore(in): 4.06, 3.88 & Bore(mm): 103.0, 98.4 & Stroke(in): 3.39, 3.75 & Stroke(mm): 86.0, 95.3); 1968-1971 Oldsmobile Cutlass (Liter: 5.7 & Engine(cc): 5733 & Engine(ci): 350 & Cylinder: 8 & Block: V & Bore(in): 4.06, 3.88 & Bore(mm): 103.0, 98.4 & Stroke(in): 3.39, 3.75 & Stroke(mm): 86.0, 95.3); 1968-1971 Oldsmobile Cutlass Supreme (Liter: 5.7 & Engine(cc): 5733 & Engine(ci): 350 & Cylinder: 8 & Block: V & Bore(in): 4.06, 3.88 & Bore(mm): 103.0, 98.4 & Stroke(in): 3.39, 3.75 & Stroke(mm): 86.0, 95.3); 1968-1971 Oldsmobile Delta 88 (Liter: 5.7 & Engine(cc): 5733 & Engine(ci): 350 & Cylinder: 8 & Block: V & Bore(in): 4.06, 3.88 & Bore(mm): 103.0, 98.4 & Stroke(in): 3.39, 3.75 & Stroke(mm): 86.0, 95.3); 1968-1971 Oldsmobile Vista Cruiser (Liter: 5.7 & Engine(cc): 5733 & Engine(ci): 350 & Cylinder: 8 & Block: V & Bore(in): 4.06, 3.88 & Bore(mm): 103.0, 98.4 & Stroke(in): 3.39, 3.75 & Stroke(mm): 86.0, 95.3)
Features & Benefits
- Forged under 3,000 tons of force.
- Fully updated skirt profiles
- Exclusive DUROSHIELD(R) skirt coating. DUROSHIELD(R) provides scuff resistance, reduced bore clearances and enhanced ring sealing.
- SPEED-PRO(R) POWERFORGED(R) pistons are built to stringent specifications with a precision CNC-machined dome and skirts and microfinished ring grooves.
- The manufacturing process ensures that piston weights within a boxed set will not vary more than 4 grams and that skirt sizes are matched to within 0.016mm (0.0006") per set.
- Machined valve reliefs and circlip grooves; LR-63 lock rings for floated applications
SEALED POWER L-2320F Specifications
Product Attributes
| Oversized | No |
| Top Compression Ring Thickness | 0.0781 IN |
| Second Compression Ring Thickness | 0.0781 IN |
| Oil Ring Thickness | 0.1875 IN |
| Assembly Lubricant Included | No |
| Bore Diameter | 4.057 IN |
| Piston Material | POWERFORGED(R) |
| Compression Height | 1.612 IN |
| Dome Volume CC | 0.0 |
| Head Illustration | 23 |
| Head Type | Flat; DUROSHIELD skirt coated piston |
| Lock Ring | N/R |
| Minimum Clearance | .0025 |
| Part Description | Engine Piston |
| Pin Diameter (Inch) | 0.980 |
| Pin Type | P |
| Pin Weight Gram | 194 |
| Standard Size | Standard |
| Weight W Pin Gram | 835 |
| Weight w/o Pin Gram | 641 |
Additional Information
| Country of Origin (Primary) | IN |
| Canadian Harmonizing Tariff Code | 8409910010 |
| Harmonized Tariff Code (HTS) | 8409915085 |
| UPC | 00087674708975 |
SEALED POWER L-2320F Cross References
| Brand | Part Number |
|---|---|
| Dana Commercial Vehicle Service Parts | 224-2597, 2242597 |
| General Motors | 230645, 402211 |
| TRW | FR327800 |
SEALED POWER L-2320F Fits Vehicles
- Oldsmobile Delmont 88 (1968)
- Oldsmobile Cutlass (1968-1971)
- Oldsmobile Vista Cruiser (1968-1971)
- Oldsmobile F85 (1968-1971)
- Oldsmobile Delta 88 (1968-1971)
- Oldsmobile Cutlass Supreme (1968-1971)
SEALED POWER L-2320F Customer Reviews
No reviews yet
Be the first to review this product!
SEALED POWER L-2320F Manufacturer Information
Speed-Pro® is the go-to brand not only for racers and performance enthusiasts but also for those who are cruising down the road day in day out. With its engineering expertise, advanced technologies, and industry-leading manufacturing facilities and techniques, Speed-Pro sets the bar higher for other manufacturers of pistons, engine bearing parts, and performance engine components. The engine solutions from Speed-Pro are meticulously designed and crafted to boost horsepower production and make engine rebuild an easy feat. Since its establishment, this brand has continuously improved and refined its operations and quality control measures to maintain high quality standards and satisfy customers’ requirements and demands.
