Product Description

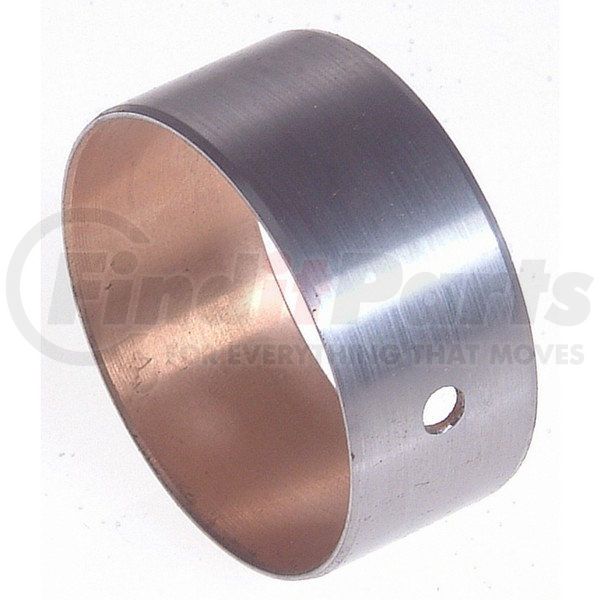

Engine Camshaft Bearing

Application Summary

1998-1997 DT L/D L6 5882cc 5.9L; CUM L4 239CI 3.9L Diesel; CUM L4 239CI 3.9L Turbo-Diesel; CUM L6 359CI 5.9L Diesel; CUM L6 359CI 5.9L Turbo-Diesel 12 Valve

Features & Benefits

  • Steel-backed Babbitt (used in automotive and high performance)
  • Babbitt con cubierta de acero (para uso en industria automovilística y alto rendimiento)
  • Babbitt renforcé avec de l'acier (utilisé dans le secteur de l'automobile et dans des applications haute performance)
  • Peforms under extreme loads without damaging other engine parts
  • Funciona bajo cargas extremas sin dañar otras piezas del motor
  • Fonctionne sous des contraintes extrêmes sans endommager les autres pièces du moteur
  • Babbitt is more environmentally friendly than other materials
  • Babbitt es más ecológico que otros materiales
  • Babbitt est plus respectueux de l'environnement que les autres matériaux
  • Provides conformability required for older applications
  • Proporciona la adaptabilidad necesaria para aplicaciones más antiguas
  • Fournit la compatibilité requise pour les anciennes applications
  • Utilizes ISO & QS certified manufacturing
  • Utiliza fabricación con certificación ISO y QS
  • Utilise une fabrication certifiée ISO et QS

Product Attributes

Standard Or Oversized Standard
Housing Bore Max (inch) 2.3326 IN
Housing Bore Max (mm) 59.2480 MM
Housing Bore Min (inch) 2.3316 IN
Housing Bore Min (mm) 59.2230 MM
Oil Clearance Max (inch) 0.0064 IN
Oil Clearance Max (mm) 0.1630 MM
Oil Clearance Min (inch) 0.0030 IN
Oil Clearance Min (mm) 0.0760 MM
Overall Length Max (inch) 1.0100 IN
Overall Length Max (mm) 25.6500 MM
Part Description Engine Camshaft Bearing
Standard Shaft Max (inch) 2.1265 IN
Standard Shaft Max (mm) 54.0130 MM
Standard Shaft Min (inch) 2.1255 IN
Standard Shaft Min (mm) 53.9880 MM
Wall Thickness Max (inch) 0.1010 IN
Wall Thickness Max (mm) 2.5650 MM

Additional Information

Country of Origin (Primary) MX
Canadian Harmonizing Tariff Code 8483300022
Harmonized Tariff Code (Schedule B) 8483308090
Harmonized Tariff Code (HTS) 8483308090
UPC 00614046350045

Part Interchanges

Sealed Power® supplies the industry with application-specific engine components, including pistons, engine bearings, piston rings, oil pumps, and lifters. These replacement parts are crafted from automotive experts' product development efforts and commitment to putting only the best on the streets and highways. The engineers behind Sealed Power products design and evaluate these engine parts to provide solutions for repowering engines due to wear. Backed by many years of industry experience and expertise, Sealed Power offers components that deliver unparalleled performance and reliability. All Sealed Power Engine Parts meet the industry's highest standards for product quality. This is what makes Sealed Power the professional's brand of choice when it comes to engine parts.

Fits Vehicles

  • Ram 5500 (2012-2014)
  • Ram 4500 (2011-2014)
  • Dodge Ram 4500 (2009-2010)
  • Ram 3500 (2011-2014)
  • Ram 2500 (2011-2014)
  • Ford F800 (1997)
  • Ford F700 (1997)
  • Dodge Ram 3500 (1997-2010)
  • Dodge Ram 2500 (1997-2010)
