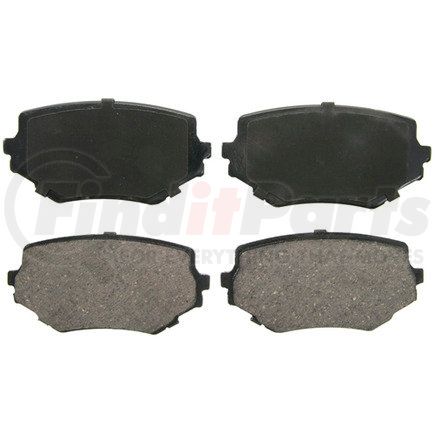

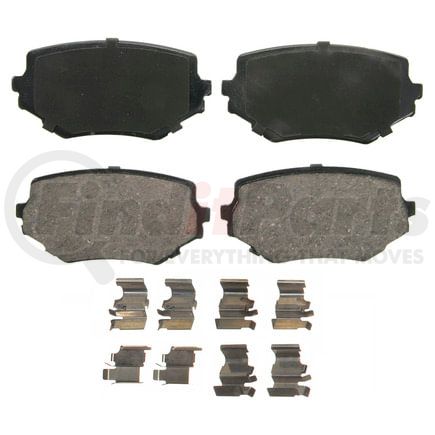

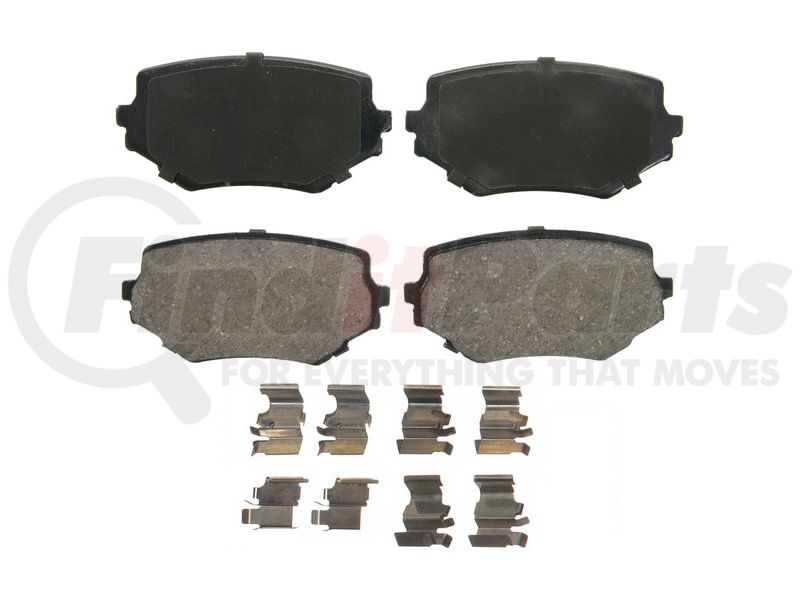

(888) 312-8812 Login SignupWAGNER ZD680 QuickStop Ceramic Disc Brake Pad Set
Tap to view 2 more
MSRP: $53.33
$4049
Save $12.84
Limited availability at this price!
In Stock
Get it by Wednesday, Jul 15
WAGNER ZD680 Part Description
Manufacturer
Features & Benefits
- RESTORES LIKE-NEW BRAKING PERFORMANCE -- OE fit and form design delivers consistent, even braking throughout the life of the brake pad
- REDUCED VIBRATION -- Application-specific design reduces noise-causing vibration
- VEHICLE-SPECIFIC MATERIALS -- Formulated to meet the unique needs of each vehicle application
- HARDWARE INCLUDED -- Premium stainless-steel hardware included in most applications
- COMPREHENSIVE COVERAGE -- Brake pads available for all vehicle types
- ZERO COPPER FORMULATION -- Features Wagner OE25™ zero-copper friction formulation
- QUIETER OPERATION -- Up to four-layer shim (application specific) helps dampen vibration and reduce squeal for smoother, quieter braking performance
- PAD LIFE MONITORING -- Application-specific brake wear sensor detects pad wear and provides a timely alert to support proactive maintenance and preserve braking performance
- BUILT TO STAY PUT -- Thermoset adhesive secures the friction material to the backplate, maintaining bond integrity through heat, pressure and repeated stops
- CORROSION PROTECTION -- Powder-coated backplate helps resist rust and extend product life
- LAB-TESTED PERFORMANCE -- Validated on a dynamometer using SAE J2521 (noise), SAE J2522 (effectiveness) and Los Angeles City Traffic protocols to ensure quiet operation, consistent stopping power and pad life
- PERFECT PAIRING -- Pair Wagner® Standard brake pads with Wagner rotors and calipers (sold separately) for optimal performance
- PERFECT PAIRING -- Pair Wagner(R) Standard brake pads with Wagner rotors and calipers (sold separately) for optimal performance
Rely on the Wagner® Brake QuickStop® disc brake pad set to restore like-new braking performance to your vehicle.
Wagner® QuickStop® ceramic brake pads are designed, tested and certified to ensure a vehicle's braking system will be restored to original equipment performance.
- Optimal stopping performance
- Application-specific design reduces noise-causing vibration
- 100% OE-post cured for consistent braking throughout the life of the pad
- Includes OE-style lubricant
- Low copper 2021 compliant ceramic formulation
- Install Wagner with total confidence
Part Specifications
BRAKE PADS
| Pad FMSI Number | 7559-D680 |
| Abutement Hardware Included | Yes |
| Friction Thickness Inner Pad (Inch) | 0.563 |
| Friction Thickness Outer Pad (Inch) | 0.563 |
| Front or Rear Pads | Front |
| OEM Replacement | Yes |
| Package Quantity | 4 |
| Pad Material | Ceramic |
| Shims Included | Yes |
| Wear Sensors Included | No |
| Performance | No |
WAGNER ZD680 Specifications
Product Attributes
| Friction Material Composition | Ceramic |
| FMSI Number | 7559-D680 |
| Abutment Clips Included | Yes |
| Pad Shims Included | Yes |
| Chamfered Edges | No |
| Slotted | No |
| Inner Pad Friction Material Thickness | 0.563 IN |
| Outer Pad Friction Material Thickness | 0.563 IN |
| Pad Wear Sensor Included | No |
| Part Description | Disc Brake Pad Set |
| FMSI Lining | 7559 |
| Fmsi Steel | D680 |
Additional Information
| MSDS Sheet Number | 5008 |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708305020 |
| Harmonized Tariff Code (HTS) | 8708305020 |
| UPC | 00008536322320 |
| VMRS Code | 013000000 |
| UNSPSC | 25171713 |
WAGNER ZD680 Cross References
| Brand | Part Number |
|---|---|
| 102.06800 | |
| ATE BRAKE PRODUCTS | 605857 |
| Auto Extra | AXOD680, AXMD680, AXCD680 |
| BRAKE PRO | BKP680MH |
| BREMBO | P79009N |
| Bendix | D680, MRD680 |
| Bosch | BC680, BE680, BE680H, BP680 |
| BrakeBest Select Brake Pads | D680, SC680 |
| CENTRIC | 301.06800 |
| Carquest | BD680 |
| Carquest Premium Gold | GMKD680 |
| Carquest Professional Platinum Brake Pads | PXD680H |
| Carquest Standard Brake Pads | NAD680, MKD680 |
| Centric Parts | 301.06800, 102.06800, 103.06800, 105.06800, 106.06800, 300.06800, 308.06800 |
| Detroit Axle | P680 |
| Duralast | DG680, MKD680 |
| Dynamic Friction Company | 1903-0680-00, 1551-0680-00, 4000-0680-00, 4000-0680-01, 1551-0680-01, 1310-0680-01, 1311-0680-01, 1310-0680-00 |
| MAGMA PRODUCTS | PMD680C |
| Monroe Shocks & Struts | DX680, FX680 |
| Morse | MX680 |
| NAPA BRAKES | PF7559M, SS7559, PF7559X, UP7559, SG7559X |
| Pep Boys | PGD680, PD680C, PS680C |
| PowerStop | 16680, 17680, Z23680 |
| RAYBESTOS | PG-D680C |
| Raybestos Brakes | SGD680C, MGD680CH, EHT680H |
| Suzuki | 5.52E+06, 5.52E+08, 5.52E+10, 55200-65D31, 55200-65D50, 552000000, 5520065D10, 5520065D11, 5520065D31, 5520065D50, 5520065DB2, 5520077, 5520077E00 |
| VORTEX | VXD680MH |
| Worldparts Synergy | WSD680CH |
WAGNER ZD680 Fits Vehicles
- Chevrolet Tracker (2005-2008)
- Suzuki XL-7 (2002-2004)
- Suzuki Sidekick (1996-1998)
- Suzuki Grand Vitara (1999-2005)
