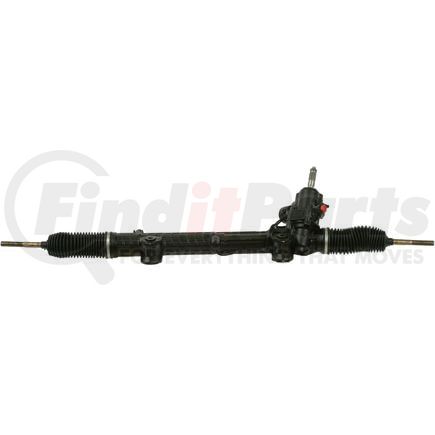

A-1 CARDONE 264012 Rack and Pinion Assembly

★★★★★ (0)
A-1 Cardone 264012 Rack and Pinion Assembly Rack and Pinion Assembly
A-1 CARDONE
Tap to view 3 more

$920.24

MSRP Pricing shown.

Out of Stock

We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.

We may have similar parts for sale. Search Alternatives >

A-1 CARDONE 264012 Part Description

Manufacturer

A-1 CARDONE

Product Description

Rack and Pinion Assembly

Application Summary

Mercedes-Benz E320 2003-98, E430 2002-00

Features & Benefits

  • Protective coating applied to each unit to extend the life of the unit (where applicable).
  • 100% performance testing to ensure perfect fit, function and reliable performance.
  • 100% hydraulic testing for proper flow, leakage and performance ensures perfect fit and function (where applicable).
  • Racks are surfaced to precise specifications to prevent leaking between chambers and extend unit life.
  • 100% new O.E.- style o-rings and lip seals ensure leak-free and long-lasting performance (where applicable).
  • All new spool valve seals and rack donut seals are installed to eliminate internal leaks and ensure reliable performance (where applicable).
  • All new spool valve seals and rack donut seals are installed to eliminate internal leaks and ensure reliable performance (where applicable).
  • Valve housings have polished micro-finish sleeves for durability (where applicable).
  • As a remanufactured Original Equipment part, this unit guarantees a perfect vehicle fit.
  • Our remanufacturing process is earth-friendly, as it reduces the energy and raw material needed to make a new part by 80%.

Rack and Pinion, Rack and Pinion Complete Unit, Complete Rack, EPS

A-1 CARDONE 264012 Specifications

Product Attributes

Casting MaterialAluminum
Package ContentsRack and Pinion; EVO Sealing Kit; Sealing Kit; Instruction Sheet
Product ConditionRemanufactured
Mounting Brackets IncludedNo
Number of Mounting Holes2
Steering Rack Color/FinishBlack
Tie Rod Ends IncludedYes
Total Turns Lock to Lock3.31
Grade TypeRegular
E-wasteNo
Rack Length (mm)1076.32
Distance Between Mounting Holes (in)12.81
Distance Between Mounting Holes (mm)325.45
Input Shaft Diameter (in)0.69
Input Shaft Diameter (mm)17.50
Input Shaft Length (in)2.25
Input Shaft Length (mm)57.15
Rack Length (in)42.38
FAQsThis symptom is classified as "morning sickness". This condition is caused by Teflon sealing rings on the spool valve wearing grooves in the aluminum housing of the rack and pinion resulting in an internal bypass of pressure. Once the housing warms up, the metal will expand and reduce the pressure loss. The rack and pinion must be replaced.
Features and BenefitsFinished in protective coating to prevent corrosion and rust.
Gasket or Seal IncludedYes
Outer Tie Rods IncludedNo
Bellows ColorBlack
TypeHydraulic
Steering Input Shaft Spline Quantity48
End To End Length1076.32 MM
End To End Length42.375 IN
Gasket Or Seal IncludedYes
Grade TypeRegular
Inlet Line Fitting Diameter13.87 MM
Inlet Line Fitting Diameter0.546 IN
Inlet Line Fitting GenderMale
Inner Tie Rods IncludedYes
Mounting Brackets IncludedNo
Mounting Hardware IncludedNo
Mounting Hole Quantity2
Outer Tie Rods IncludedNo
Outlet Line Fitting Diameter11.66 MM
Outlet Line Fitting Diameter0.459 IN
Outlet Line Fitting GenderMale
Steering Input Shaft Diameter17.5 MM
Steering Input Shaft Diameter0.689 IN
Steering Input Shaft Spline Quantity48
Bellows ColorBlack
Total Turns Lock To Lock3.3125
TypeHydraulic
Input Shaft TypeGrooved
Contains Electronic ComponentsNo
Does it require SDSNo
Is Item A ChemicalNo
Is Or Contains A BatteryNo
Is Or Contains A BulbNo
Is Prop Sixty Five AffectedNo
Is the item CARB affectedNo
FAQ_Q1I replaced the rack and now the power steering pump is whining. It never did this before! What happened?
FAA_A1The most likely cause of a power steering pump whine is air in the system. The steering system must be bled. This may take a few attempts depending on the design of the system.
FAQ_Q2The steering wheel is not returning to center coming out of a turn. What could be causing this?
FAA_A2The geometry of the front suspension is designed to return the steering wheel to center coming out of a turn. If the steering wheel is not returning to center on its own when coming out of a turn, check the front-end alignment settings and inspect for binding steering components.
FAQ_Q3The replacement rack and pinion is installed and the steering wheel has too much play. Should I adjust the rack?
FAA_A3No. The rack and pinion has been adjusted at the factory. No additional adjustment is necessary. Try isolating the rack to find out where the play exists. If you hold the inner tie rod and have someone turn the wheel, does the play disappear? If so, the problem is in the front-end; if not, remove the steering knuckle and lightly install vise grips on the sector shaft and check for play. If no play exists, check steering column or steering knuckle.
FAQ_Q4Are there any steps that should be done prior to alignment?
FAA_A4Yes, the boot clamps must be loosened to set the toe adjustment when performing a front-end alignment. Failure to loosen the clamps will twist the boots during turning maneuvers causing cracks to form on boot. Once the boot is torn, road debris and water intrusion can damage the rack end seal.

Additional Information

Remanufactured PartY
Warranty Distance36000
Warranty Distance UOMDH
Warranty Special UOMTX
Warranty Time36
Warranty Time UOMMO
Country of Origin (Primary)MX
Harmonized Tariff Code (Schedule B)8708948000
Harmonized Tariff Code (HTS)8708947550
Canadian Harmonizing Tariff Code8708949900
UPC00082617808217

A-1 CARDONE 264012 Cross References

BrandPart Number
Mercedes-Benz2103380415, 2103381115, 2104603900, 210460390088, 2103380415 , 2103381115 , 2104603900 , 210460390088
VAICOV30-9973, V30-7213

A-1 CARDONE 264012 Fits Vehicles

  • Mercedes-Benz E320 (1998-2003)
  • Mercedes-Benz E430 (2000-2002)
