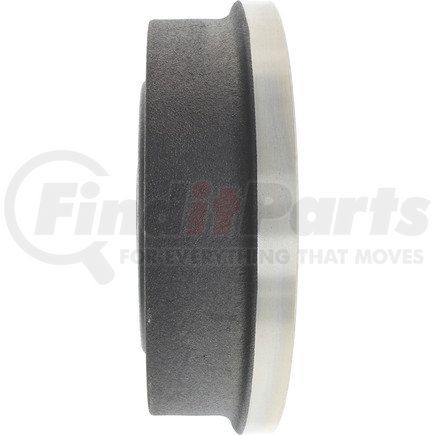

Centric 12365038 - C-Tek Standard Brake Drum
$8399
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
Product Attributes
| Weight [cntrc] Kgs | 8.545 |
| Weight [cntrc] Lbs | 18.800 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 135.000 |
| Bolt Circle Diameter [cntrc] In | 5.310 |
| Hub Hole / Register [cntrc] Mm | 87.376 |
| Hub Hole / Register [cntrc] In | 3.440 |
| Height [cntrc] Mm | 93.980 |
| Height [cntrc] In | 3.700 |
| Friction Surface Width [cntrc] Mm | 68.580 |
| Friction Surface Width [cntrc] In | 2.700 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 282.400 MM |
| Maximum Brake Diameter (Discard) | 11.118 IN |
| Bolt Hole Quantity | 5 |
| Outside Diameter | 323.596 MM |
| Outside Diameter | 12.740 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 14.224 MM |
| Mounting Hole Diameter | 0.560 IN |
| Nominal Drum Diameter | 279.400 MM |
| Nominal Drum Diameter | 11.000 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890140719 |
Part Interchanges
Fits Vehicles
- Ford F-150 (1997-2000)
