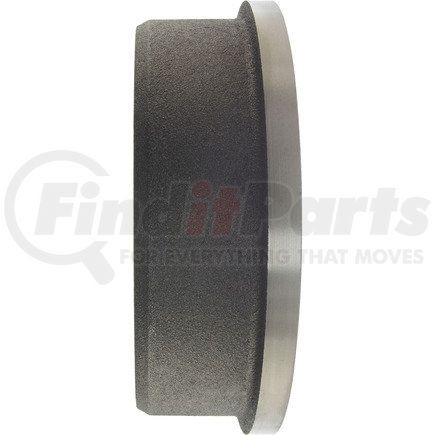

(888) 312-8812 Login SignupCENTRIC 123.65010 C-Tek Standard Brake Drum
Tap to view 4 more
$75.20
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 123.65010 Part Description
Manufacturer
Product Description
C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
- For best operation and ultimate strength
- OE-Matched Fit, Form, and Function
- 100% Mill Balanced
- For vibration free performance
- Meets SAE Standard for Tensile Strength
- For maximum service life and structural integrity
CENTRIC 123.65010 Specifications
Product Attributes
| Weight [cntrc] Kgs | 8.932 |
| Weight [cntrc] Lbs | 19.650 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 139.700 |
| Bolt Circle Diameter [cntrc] In | 5.500 |
| Hub Hole / Register [cntrc] Mm | 90.678 |
| Hub Hole / Register [cntrc] In | 3.570 |
| Height [cntrc] Mm | 99.060 |
| Height [cntrc] In | 3.900 |
| Friction Surface Width [cntrc] Mm | 87.122 |
| Friction Surface Width [cntrc] In | 3.430 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 282.400 MM |
| Maximum Brake Diameter (Discard) | 11.120 IN |
| Bolt Hole Quantity | 5 |
| Outside Diameter | 325.882 MM |
| Outside Diameter | 12.830 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 14.990 MM |
| Mounting Hole Diameter | 0.590 IN |
| Nominal Drum Diameter | 279.400 MM |
| Nominal Drum Diameter | 11.000 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890052715 |
CENTRIC 123.65010 Cross References
CENTRIC 123.65010 Fits Vehicles
- Ford F-100 (1968-1972)
CENTRIC 123.65010 Customer Reviews
No reviews yet
Be the first to review this product!
CENTRIC 123.65010 Questions & Answers
No questions yet
Be the first to ask a question about this product!
