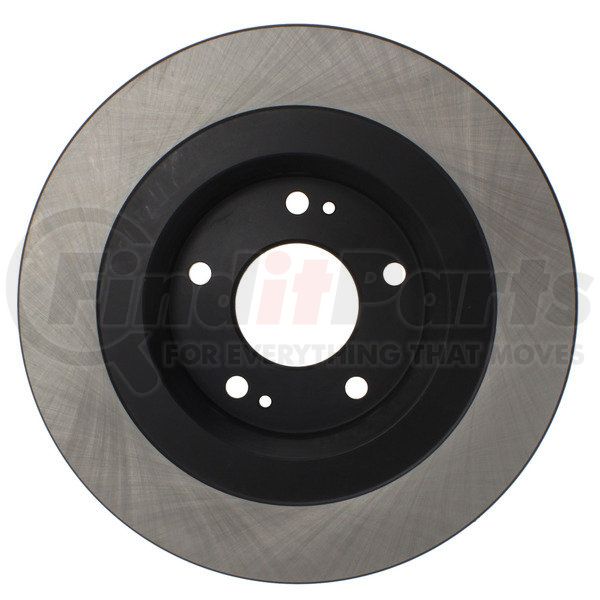

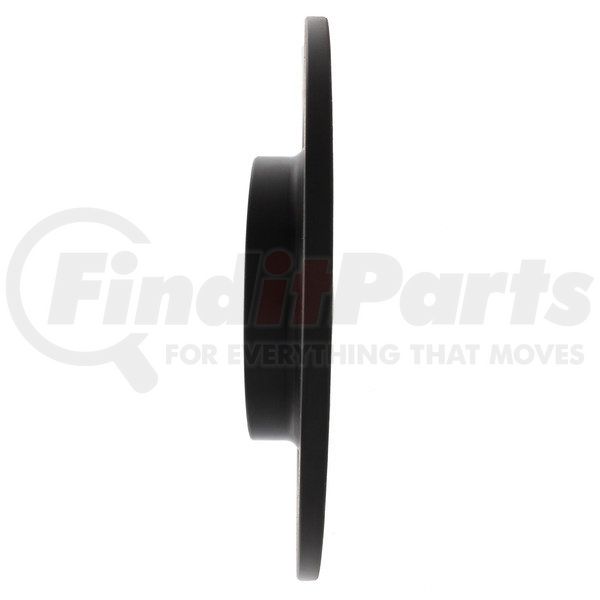

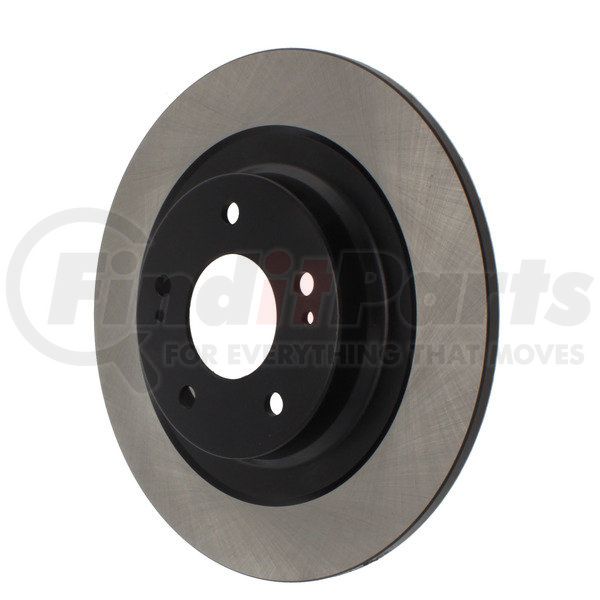

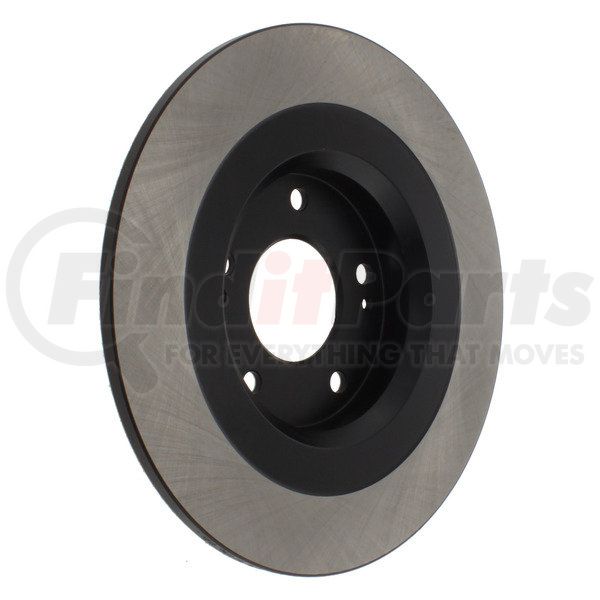

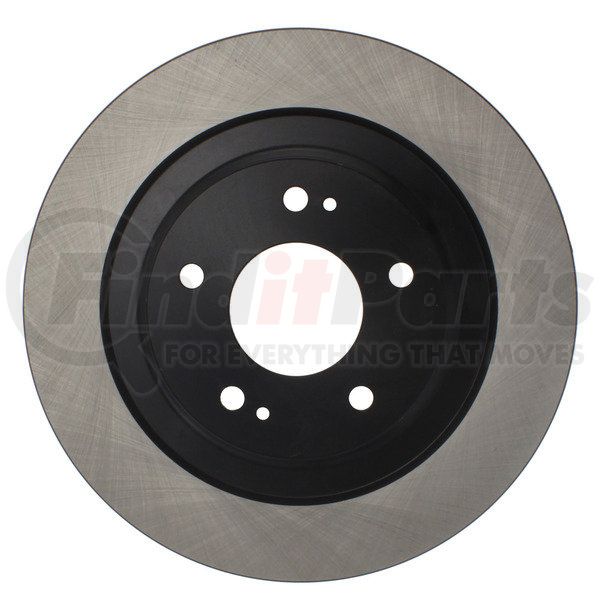

Centric 120.46077 - Centric Premium Brake Rotor
$6499
MSRP: $75.57
Save: $10.58
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
Product Attributes
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Hat Id [cntrc] Mm | 144.300 |
| Weight [cntrc] Kgs | 4.780 |
| Disc Mounting [cntrc] | Floating |
| Misc Holes [cntrc] | 2 |
| Hat Id [cntrc] In | 5.681 |
| Weight [cntrc] Lbs | 10.550 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 8.400 MM |
| Discard Thickness | 0.331 IN |
| Nominal Thickness | 0.394 IN |
| Nominal Thickness | 10.000 MM |
| Hat Finish | Coated |
| Overall Height | 36.200 MM |
| Overall Height | 1.425 IN |
| Outside Diameter | 302.000 MM |
| Outside Diameter | 11.890 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Bearings Included | No |
| Center Hole Diameter | 69.100 MM |
| Center Hole Diameter | 2.720 IN |
| Mounting Bolt Hole Circle Diameter | 114.100 MM |
| Mounting Bolt Hole Circle Diameter | 4.492 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 12.500 MM |
| Stud/Lug Hole Diameter | 0.492 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890924043 |
Part Interchanges
CENTRIC 120.46077 Cross Reference
We have 4 alternatives for the 120.46077 by CENTRIC:
Fits Vehicles
- Mitsubishi Eclipse Cross (2018-2020)
- Mitsubishi ASX (2013-2015)
- Mitsubishi RVR (2013-2018)
- Mitsubishi Outlander PHEV (2018-2022)
- Mitsubishi Outlander Sport (2013-2023)
- Mitsubishi Outlander (2014-2020)
