CENTRIC 122.44040 Part Description
Manufacturer
Product Description

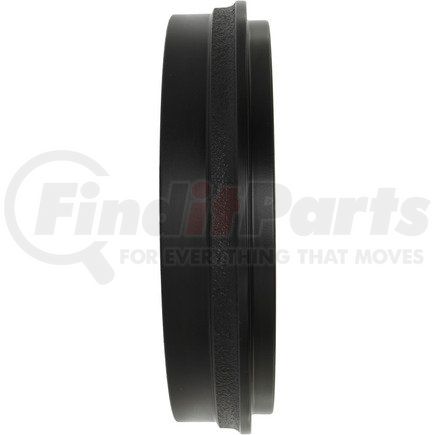

Centric Premium Brake Drum
Features & Benefits
- OE style castings ensure superior performance and extended service life. Machined finishes provide cleaner appearance through wheels. Precision machined friction surfaces ensure smooth operation and reduced noise
- For best operation and ultimate strength
- OE-Matched Fit, Form, and Function
- 100% Mill Balanced
- For vibration free performance
- Black Painted Exterior
- For corrosion resistance
CENTRIC 122.44040 Specifications
Product Attributes
| Misc Holes [cntrc] | 2 |
| Weight [cntrc] Kgs | 4.659 |
| Weight [cntrc] Lbs | 10.250 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 100.000 |
| Bolt Circle Diameter [cntrc] In | 3.937 |
| Hub Hole / Register [cntrc] Mm | 55.110 |
| Hub Hole / Register [cntrc] In | 2.170 |
| Height [cntrc] Mm | 51.800 |
| Height [cntrc] In | 2.039 |
| Friction Surface Width [cntrc] Mm | 41.150 |
| Friction Surface Width [cntrc] In | 1.620 |
| Product Grade [cntrc] | Premium |
| Maximum Brake Diameter (Discard) | 201.000 MM |
| Maximum Brake Diameter (Discard) | 7.913 IN |
| Bolt Hole Quantity | 4 |
| Outside Diameter | 233.000 MM |
| Outside Diameter | 9.173 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 14.800 MM |
| Mounting Hole Diameter | 0.583 IN |
| Nominal Drum Diameter | 200.000 MM |
| Nominal Drum Diameter | 7.874 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| UPC | 00805890103141 |
CENTRIC 122.44040 Cross References
| Brand | Part Number |
|---|---|
| N/A | BD180199, BD126092, 480138, 920100, BD920100, 35088, 1408-75757, YH140754, 80094, 80094G, 35088G, 4243147010, 4243147011, 4243152020, 4243152021, 9708, 9735, PDR0736, PDR0821, 140736, 140754, 87708, 87735, DB4254, 36591000 |
| RAYBESTOS | 9735R |
| Raybestos Brakes | 9735R |
| WAGNER | BD126092, BD126092E |
CENTRIC 122.44040 Fits Vehicles
- Scion xB (2004-2006)
- Scion xA (2004-2006)
- Toyota Prius (2001-2003)
