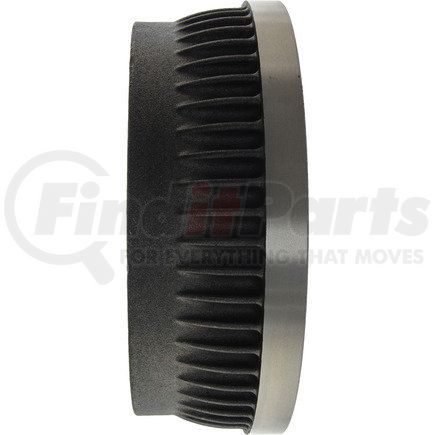

(888) 312-8812 Login SignupCENTRIC 123.66010 C-Tek Standard Brake Drum
Tap to view 4 more
$12599
Limited availability at this price!
In Stock
Get it by Monday, Feb 16
CENTRIC 123.66010 Part Description
Manufacturer
Product Description
C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
- For best operation and ultimate strength
- OE-Matched Fit, Form, and Function
- 100% Mill Balanced
- For vibration free performance
- Meets SAE Standard for Tensile Strength
- For maximum service life and structural integrity
CENTRIC 123.66010 Specifications
Product Attributes
| Weight [cntrc] Kgs | 12.273 |
| Weight [cntrc] Lbs | 27.000 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 127.000 |
| Bolt Circle Diameter [cntrc] In | 5.000 |
| Hub Hole / Register [cntrc] Mm | 78.486 |
| Hub Hole / Register [cntrc] In | 3.090 |
| Height [cntrc] Mm | 98.298 |
| Height [cntrc] In | 3.870 |
| Friction Surface Width [cntrc] Mm | 81.280 |
| Friction Surface Width [cntrc] In | 3.200 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 285.500 MM |
| Maximum Brake Diameter (Discard) | 11.240 IN |
| Bolt Hole Quantity | 5 |
| Outside Diameter | 336.042 MM |
| Outside Diameter | 13.230 IN |
| Outer Cooling Fins | Yes |
| Mounting Hole Diameter | 13.210 MM |
| Mounting Hole Diameter | 0.520 IN |
| Nominal Drum Diameter | 283.200 MM |
| Nominal Drum Diameter | 11.150 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890052968 |
CENTRIC 123.66010 Cross References
| Brand | Part Number |
|---|---|
| N/A | BD60343, E127-71-015, E128-71-015, 8874, BD8874, 123.66010, 63 93 680, D93 680, 8874G, 112083, 359491, 14021061, 14047276, 14070351, 333046, 140501, AD8610, PDR0501, 201740, 6401234, 440-1234, 809, AD8610E, D2083, E12771015, E12871015, E8350, 14072937, 212095, 212095C, 87051, YH140501, 23058, X21594, BD1061, 2083, 2083DGS, 2083R, 102083, 78-44010, 8844010, 78844010, 7844010, 68050, 177305, 36547041 |
| PRONTO | BD8874 |
| RAYBESTOS | 2083, 2083R |
CENTRIC 123.66010 Fits Vehicles
- GMC P15/P1500 Van (1974)
- GMC C15/C1500 Pickup (1974)
- Chevrolet R1500 Suburban (1989)
- GMC G25/G2500 Van (1974)
- GMC C15/C1500 Suburban (1974)
- Chevrolet P10 Van (1974)
- Chevrolet C10 Pickup (1974)
- Chevrolet G20 Van (1974)
- GMC R1500 Suburban (1987-1989)
- GMC P1500 (1979-1980)
- GMC P15 (1975-1978)
- GMC C15 (1975-1978)
- GMC Jimmy (1976-1982)
- Chevrolet R10 Suburban (1987-1988)
- GMC G15 (1976-1978)
- GMC G2500 (1979-1989)
- GMC G25 (1975-1978)
- GMC G1500 (1979-1989)
- GMC C1500 Suburban (1979-1986)
- GMC C15 Suburban (1975-1978)
- GMC C1500 (1979-1986)
- Chevrolet P10 (1975-1980)
- Chevrolet G20 (1975-1989)
- Chevrolet G10 (1976-1989)
- Chevrolet C10 Suburban (1974-1986)
- Chevrolet C10 (1975-1986)
- Chevrolet K5 Blazer (1976-1982)
