Dorman 2630327 - "OE Solutions" Fuel Pump Module Assembly
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
DORMAN part description
Product Description

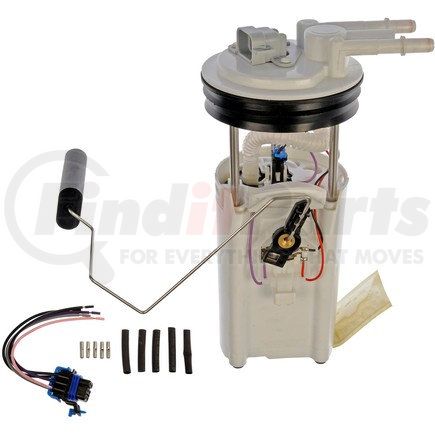

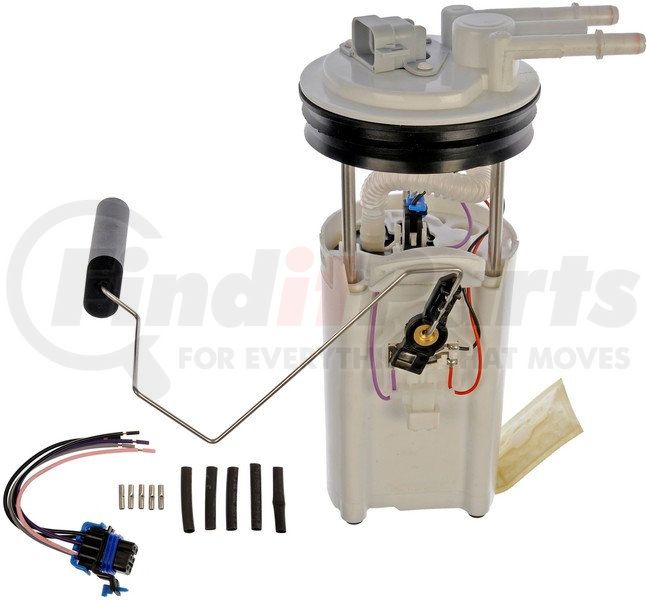

"OE Solutions" Fuel Pump Module Assembly
Application Summary
Cadillac DeVille 1996-94, Cadillac Eldorado 1996-93, Cadillac Seville 1996-93
Fuel, Pump, Module, Assembly, Fuels, Pumps, Modules, Assemblies
Product Attributes
| Length | 170 MM |
| Housing Width | 92 MM |
| Wire Gauge Measurement | 17 GU |
| Connector Color | Gray |
| Width | 92 MM |
| Maximum Pressure | 110 PS |
| Terminal Type | Spade |
| Height | 272 MM |
| Universal Or Specific Fit | Specific |
| Housing Length | 168 MM |
| Wire Quantity | 5 |
| Connector Shape | Square |
| Gasket Or Seal Included | Yes |
| Housing Material | Plastic |
| Terminal Quantity | 4 |
| Top Mount Diameter | 108 MM |
| Lock Ring Included | No |
| Connector Gender | Female |
| Terminal Gender | Male |
| Maximum Flow Rating | 47.56 GPH |
| Inlet Type | Jet |
| Outlet Type | Male Quick Connect |
| Outlet Quantity | 2 |
| Outlet Diameter | 3/8 in; 3/8 in |
| Package Contents | 1 Fuel Pump Module Assembly |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| UPC | 00747214044894 |
| VMRS Code | 044003258 |
| UNSPSC | 39121552 |
Part Interchanges
Fits Vehicles
- Cadillac Seville (1993-1996)
- Cadillac Eldorado (1993-1996)
- Cadillac DeVille (1994-1996)
