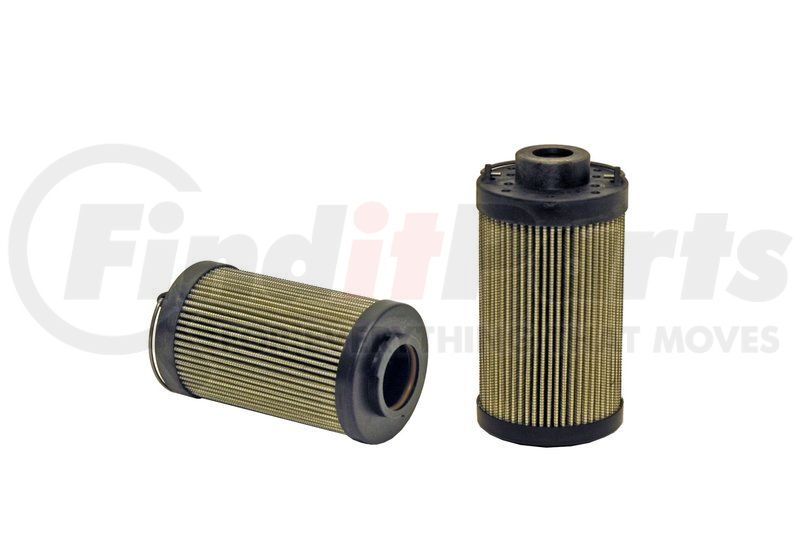

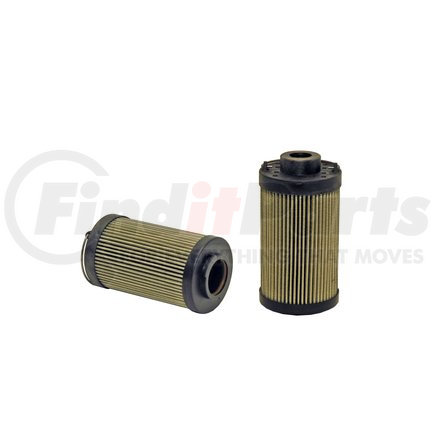

WIX Filters R40D10NV - WIX INDUSTRIAL HYDRAULICS Cartridge Hydraulic Metal Canister Filter
- Part Number
- R40D10NV
- Manufacturer
- WIX FILTERS
- Description
-
WIX INDUSTRIAL HYDRAULICS Cartridge Hydraulic Metal Canister Filter
details
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
WIX FILTERS part description
Product Description
WIX INDUSTRIAL HYDRAULICS Cartridge Hydraulic Metal Canister Filter
Application Summary
Various Industrial Hydraulic Applications
Product Attributes
| Media Material | Cellulose |
| Micron | 10.00 Micron |
| Height | 5.669 IN |
| Outer Diameter Top | 2.894 in |
| Outer Diameter Bottom | 2.894 IN |
| Inner Diameter Bottom | 1.347 in |
| Bypass Relief Valve Setting | 44 |
| BetaRatio | 2/10 |
| Class | S |
| Style | Cartridge Hydraulic Metal Cani |
| FilterArea(sq ines) | 336 sq in |
| Capacity | 13.44 g |
| FluidCompatibility | Mineral Oil (HH) |
| FlowDirection | Outside-In |
| Maximum Operating Temperature | 248 F |
| Minimum Operating Temperature | -13 F |
| Collapsed Pressure Rating | 435 PSI |
Additional Information
| Harmonized Tariff Code (HTS) | 8421290065 |
| Country of Origin (Primary) | CA |
| UPC | 00765809700949 |
Part Interchanges
- MAIN/FILTREC RHR160N10V
- HYDAC 0160R010PHC
- HYDAC 0160R010PHCV
- HYDAC 2060140
- HYDAC 2065628
- NAPA INDUSTRIAL HYDRAULICS R40D10NV
- STAUFF RE045N10B
- WIX INDUSTRIAL HYDRAULICS R40D10NV
- WOODGATE WGHH16010RP
- NATIONAL FILTRATION RHY160610PV3
- FILTER MART 336160
- MAIN/FILTREC MF0064012
- FILTREC RHR160N10B
- HYDAC 02060140
- HYDAC 02065628
- STAUFF RE045N10V
