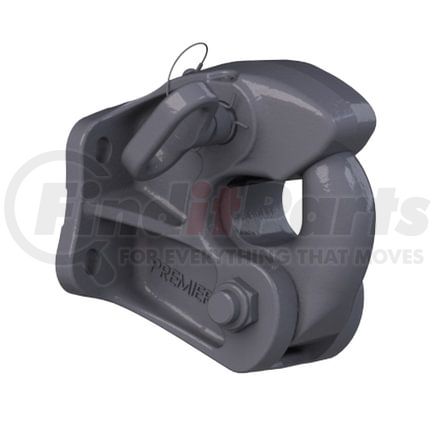

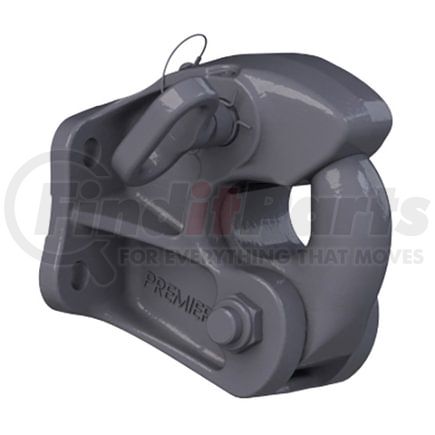

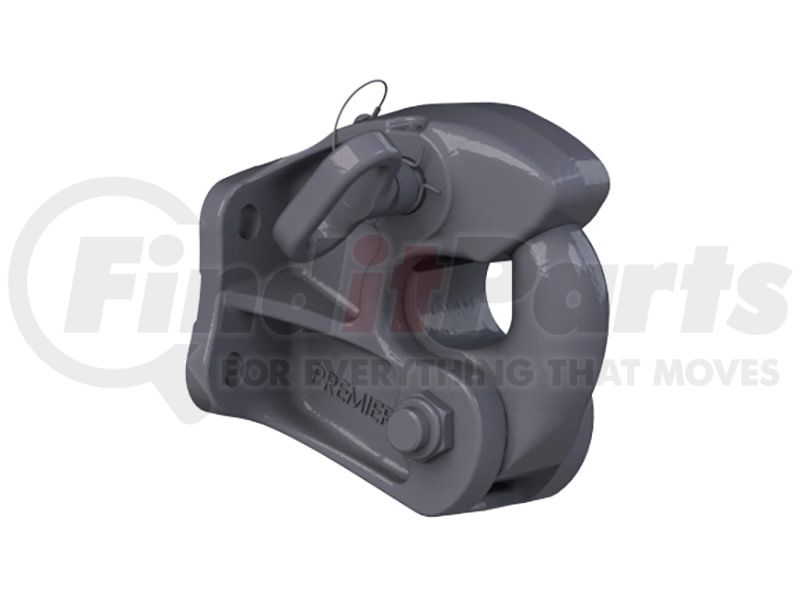

(888) 312-8812 Login SignupPREMIER 690L 690L Premalloy Coupling - Drop Pintle Hook - 2-1/8” Dia. - Handle on Left Side :
Tap to view 1 more
$1,38249
Limited availability at this price!
In Stock
Get it by Tuesday, Feb 17
PREMIER 690L Part Description
Premier’s 690L coupling offer similar features to our model 590 but with higher load capacities. The pintle hook / horn is made of Premier’s exclusive Premalloy for maximum wear resistance.
SPECIFICATIONS:
| Maximum Gross Trailer Weight: | 90,000 lbs. (40,823 kg) |
| Maximum Tongue Weight: | 18,000 lbs. (8,165 kg) |
| Upward Vertical Capacity: | 40,000 lbs. (18,144 kg) |
| Maximum Eye X-Section: | 1 11/16 in. (43 mm) |
| Minimum Eye Opening: | 2 3/8 in. (60 mm) |
Premier Manufacturing Pintle Hitch
The preferred choice of LTL carriers and vocational haulers worldwide, the Premiere Manufacturing pintle hitch delivers reliability even in demanding towing conditions. It is available in light to heavy duty versions to accommodate various weight requirements.
Features & Benefits
- Exclusive Premalloy material becomes stronger with continued normal use for longer service life
- Induction-hardened for increased wear resistance beyond the surface layer
- Built with precision using computer-aided design and analysis software
- Physical destructive testing ensures optimal performance even at maximum load
- Meets or exceeds SAE J847 and J849 specifications and other industry guidelines
| Maximum Tongue Weight | 18,000 lbs. (8,164 kg) |
| Maximum Gross Trailer Weight | 90,000 lbs. (40,823 kg) |
| Upward Vertical Capacity | 40,000 lbs. (18,143 kg) |
| Maximum Eye Cross Section | 1 11/16" (43 mm) |
| Minimum Eye Opening | 2 3/8" (60 mm) |
PREMIER 690L Specifications
Additional Information
| Country of Origin (Primary) | US |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| VMRS Code | 059002000 |
PREMIER 690L Cross References
| Brand | Part Number |
|---|---|
| PRE690L, JL3Z1627406GA | |
| PREMIER | 10001221 |
PREMIER 690L Customer Reviews
No reviews yet
Be the first to review this product!
PREMIER 690L Manufacturer Information
In business since 1924, the Premier Manufacturing Company® specializes in the design, manufacture, and distribution of heavy duty tractor and trailer components for the trucking industry. Its main product line includes trailer couplings, pintle hitches, drawbars, lunette eyes, hinge assemblies, front end assemblies, dolly jacks, and related accessories. Premier Manufacturing products stand out in the market for their state-of-the-art engineering and innovative designs driven by the specific needs of customers. Couplings are made of premium-grade alloys that are specially formulated to harden with constant use and are equipped with various features including polymer pivot points and built-in lubrication ports for easier maintenance and longer life. From light to heavy duty vehicles, customers can find a selection of trailer components to suit their needs.
PREMIER 690L Questions & Answers
No questions yet
Be the first to ask a question about this product!
