TRUCK-LITE part description

Product Description

Signal-Stat, Incan. Personal Trailer, Kit, Display

Features & Benefits

  • For use on camping, motorcycle, horse and utility trailers
  • Kit provides all legal lamps and reflective products for trailers less than 80" wide
  • Special electrical connections eliminate external wiring splices
  • Front side marker lamps include built-in reflectors
  • Rugged plastic design prevents corrosion

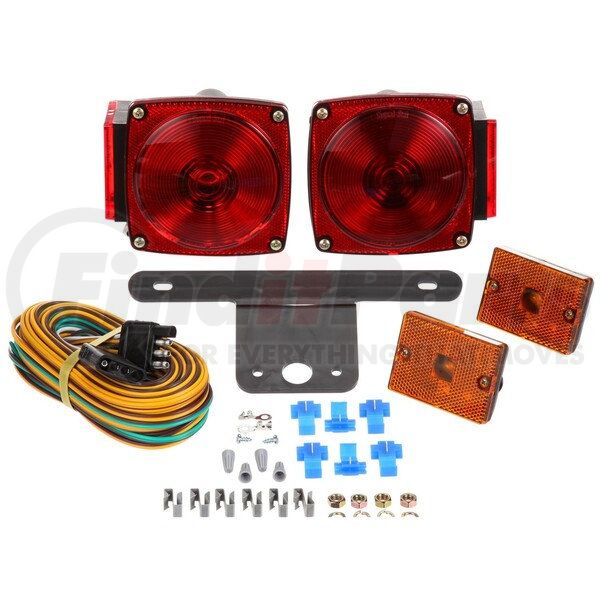

  • Kit includes two lamps, 20' four-wire split Y-harness, a flexible license bracket, two S/T/T lamps, two side marker lamps, frame clips, wire nuts and easy to read instructions

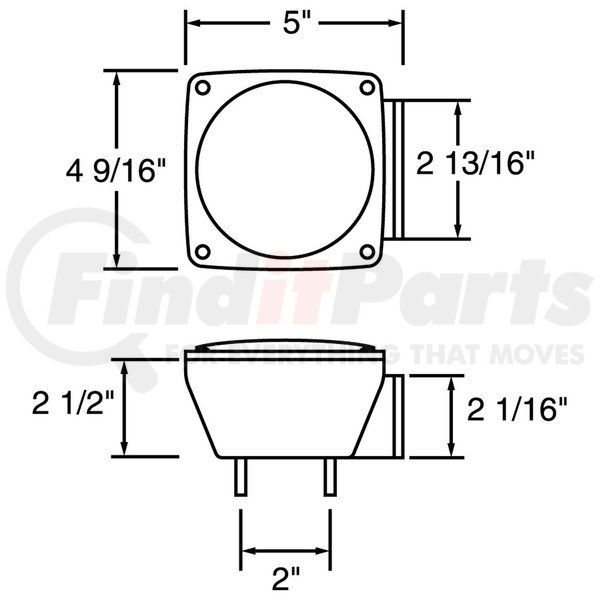

  • S/T/T lamps mount on two studs at 2'' centers
  • Upgrade to Truck-Lite LED systems using part# 5050DK or 5051DK

Product Attributes

Voltage 12
Lens Color Red
Wire Quantity 6
Lens Shape Square
Bulb Technology Incandescent
Current Major 2.1
Current Major 2 2.1
Current Major 3 0.27
Current Major 4 0.27
Current Minor 0.59
Current Minor 2 0.59
Housing Material Polycarbonate
Item Left Hand S/T/T
Item 2 Right Hand S/T/T
Item 3 Left Hand M/C
Item 4 Right Hand M/C
Kit Yes
Lamp Connection Hardwired
Lens Color 2 Red
Lens Color 3 Yellow
Lens Color 4 Yellow
Lens Material Acrylic
Mount Type Bracket Mount
Number Of Diodes/bulbs 2
Number Of Diodes/bulbs 2 2
Number Of Diodes/bulbs 3 1
Number Of Diodes/bulbs 4 1
Number Of Lamps 4
Plug Side One Hardwired
Plug Side Two Stripped End
Sealed/bulb Replaceable Bulb Replaceable
Series Signal-Stat
Switch Included 0
Wire Gauge Measurement 18

Part Interchanges

Truck-Lite® is a world-renowned manufacturer of mirrors, heavy-duty forward and signal lighting, trailer harnesses, and other safety and visibility-enhancing products. Its main headquarters is located in Falconer, NY, and it maintains ten more facilities across North America and Europe. The company may have started small as a sealed lighting manufacturer in 1955. But it has grown tremendously over the years—in fact, it introduced a series of firsts including the first sealed lighting products, first LED S/T/T lamps, and first forward lighting. Being first in product development has sure paved the way for Truck-Lite to become a successful business today.
