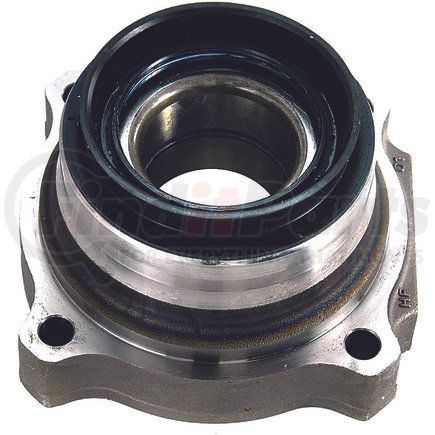

TIMKEN 512295 Preset, Pre-Greased And Pre-Sealed Bearing Module Assembly

Name: Timken 512295 Preset, Pre-Greased And Pre-Sealed Bearing Module Assembly
SKU: 512295
Price: 222.99 USD
Availability: InStock

Tap to view 3 more

MSRP: $313.38

$222.99

Save $90.39

Limited availability at this price!

In Stock

Get as soon as Tuesday, Oct 27

30-day Return Policy On eligible items Details

Free Ground shipping on orders over $499 details

Orders placed over the weekend will be processed the next business day.

TIMKEN 512295 Part Description

Hub Unit Assembly

Timken Uses Oe-Developed Tests Controling The Design, Materials And Process Used To Manufacture Their Hub Bearing Assemblies, Ensuring Consistently High Performance
Timken Tests The Design, Materials And Process Used To Manufacture Their Bearing Assemblies
Timken Has Been An Oe Supplier To The Automotive Industry For Over 100 Years
Timken Bearing Assemblies Are Pre-Set, Pre-Greased And Pre-Sealed For Ease Of Installation
Timken Hub Assemblies Feature Premium Bearings With Precision Profiles, Uniform Internal Geometry, Enhanced Surface Finishes To Increase Load Carrying Capacity, Extend Bearing Life And Improve Fuel.
Self-Contained Design Makes Timken Bearing Assemblies Maintenance Free
Our Abs Sensors Are 100% Tested To Monitor Wheel Speed For Anti-Lock Braking Systems (Abs)

Inside Diameter	1.732 IN
Inside Diameter	44.00 MM
Outside Diameter	N/A
Width	2.508 IN
Width	63.70 MM
California Proposition 65 Required	N
Anti Lock Braking System	Yes
Flange Bolt Hole Quantity	4
Bolt Circle Diameter	N/A
Hub Pilot Diameter	85.00 MM
Hub Pilot Diameter	3.346 IN
Anti Lock Braking System Type	N/A
Bearing Type	Bearing Module
Brake Pilot Diameter	N/A
Drive Type	Non-driven
Flange Diameter	N/A
Flange Offset	N/A
Flange Shape	Modified
Spline Quantity	N/A
Wheel Studs Included	No
ABS Connector Shape	N/A
ABS Ring Type	N/A
ABS Sensor Included	N/A
ABS Sensor Ring Diameter	N/A
ABS Sensor Ring Included	N/A
Abs Tone Ring Tooth Quantity	N/A
Axle Nut Included	No
Bearing Included	Yes
Bearing/Cone Inside Diameter	N/A
Bearing/Cone Outside Diameter	N/A
Bearing/Cone Width	N/A
Bolt Quantity	10(4)
Bolt Size I	0.394
Color	Gray/Black
Flange Bolt Size	N/A
Flange Bolt Thread Size	N/A
FLANGE TYPE	N/A
Gasket or Seal Included	No
Greaseable	N/A
Hub Centerbore Diameter	N/A
Hub Included	No
Inner Ring Width	N/A
Lug Bolt Thread Size	N/A
Lug Thread Size	N/A
Material	N/A
New Or Remanufactured	New
Number Of Abs Sensor Ring Teeth	N/A
Number Of Flange Bolts Included	N/A
Number Of Lug Bolts Included	N/A
Number Of Lugs	N/A
Number Of Mounting Bolts To Knuckle	N/A
Number of Mounting Holes	4
Number of splines	N/A
NUMBER OF TERMINALS	N/A
Number Of Wheel Studs	N/A
Outer Race Radius	N/A
Outer Race Width	N/A
Outer Ring Width	N/A
Pre-greased	Yes
Spindle Bolt Size	N/A
Terminal Gender	N/A
Total Hub Diameter	N/A
Total Hub Height	N/A
Wiring Harness Included	No
Wiring Harness Length	N/A

Harmonized Tariff Code (HTS)	8482105016
Harmonized Tariff Code (Schedule B)	8482105048
UPC	00053893637112
VMRS Code	053016000
UNSPSC	31171500

Brand	Part Number
BCA	WE60759
Beck/Arnley	051-6105
CENTRIC	405.44013
Centric Parts	405.44013
DORMAN	4110005, 951-002
GMB	7700351
GSP AUTO PARTS NORTH AMERICA INC	693295
MEVOTECH	H512295
MOOG	512295
MOOG Hub Assemblies	512295
NTN	WE60759
SKF	BR930401
