SPECTRA PREMIUM part description

12 VOLKSWAGEN THE BEETLE (L5-2.5L); 12-06 VOLKSWAGEN JETTA (L5-2.5L); 12 VOLKSWAGEN PASSAT (L5-2.5L); 12-10 VOLKSWAGEN GOLF SPORTWAGEN (L5-2.5L); 12-10 VOLKSWAGEN GOLF (L5-2.5L); 12-06 VOLKSWAGEN BEETLE (L5-2.5L); 11-10 VOLKSWAGEN BEETLE CABRIO (L5-2.5L); 10-06 VOLKSWAGEN BORA (L5-2.5L); 09-06 VOLKSWAGEN RABBIT (L5-2.5L)

Product Description

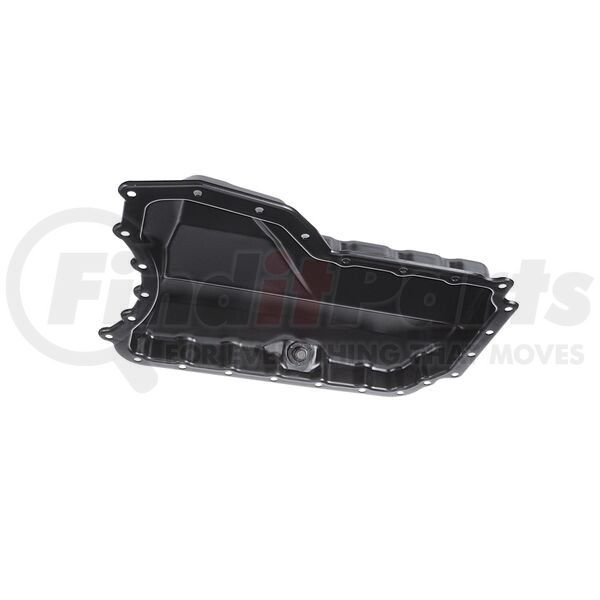

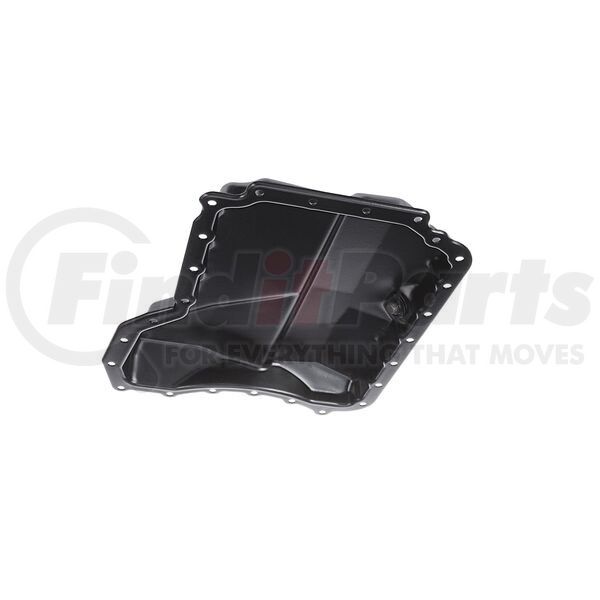

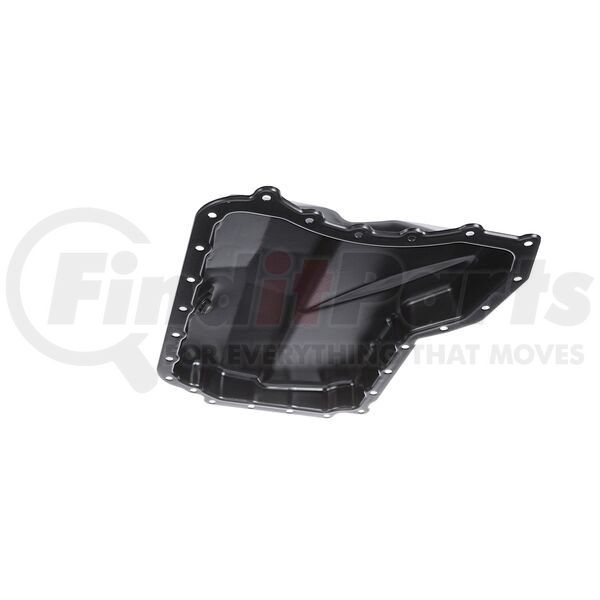

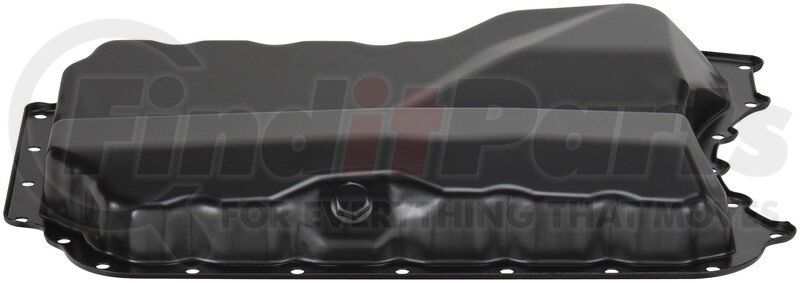

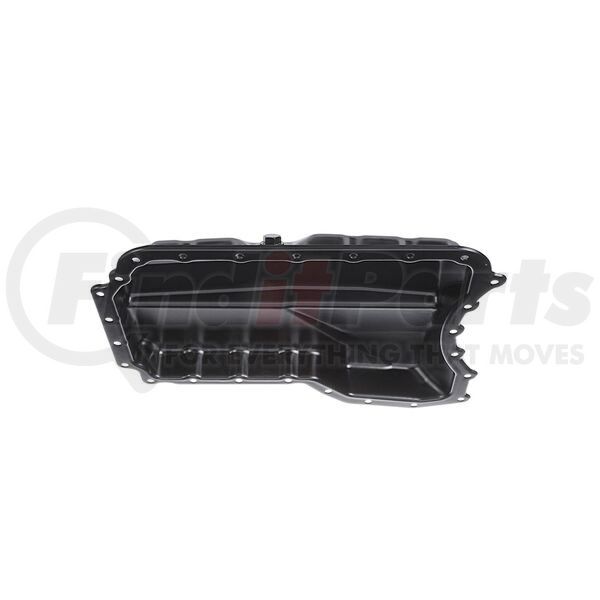

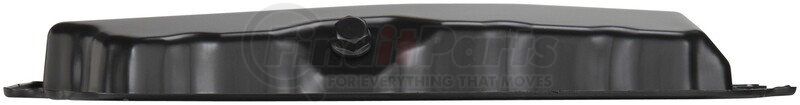

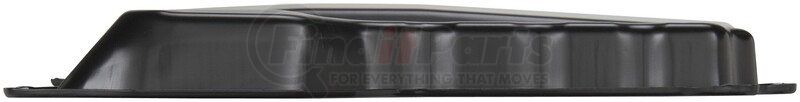

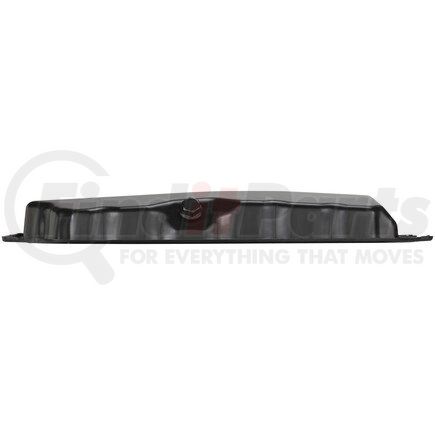

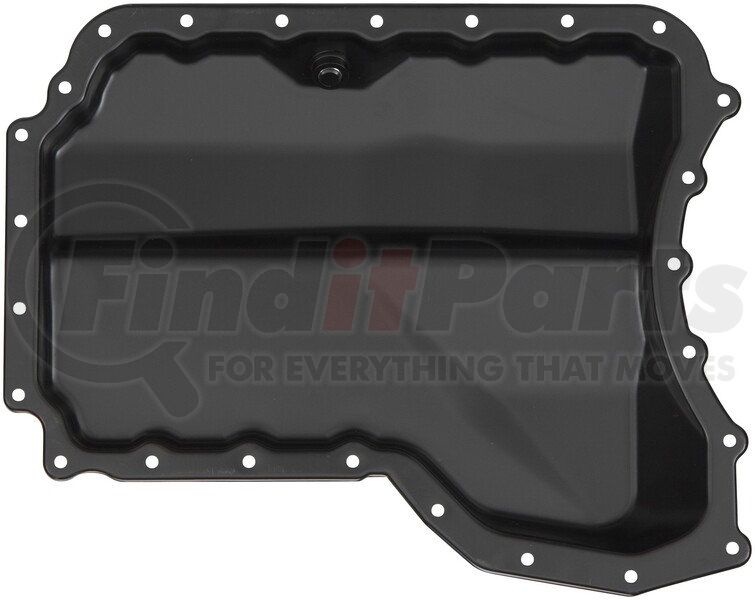

Engine Oil Pan

Product Attributes

California_prop 65 Message Y
Material Cold Rolled Steel (EDDQ)
Capacity 6.0000 LT
Length 422.0000 MM
Maximum Width 340.0000 MM
Color Black
Oil Level Sensor Port No
Baffled No
Crank Shaft Wiper Included No
Maximum Depth 46.0000 MM
Dipstick Port No
Drain Plug Included Yes
Engine Oil Cooler Return Fitting No
Kick Out Type Pan No
Pickup Included No
Sump Location Front
Sump Type Wet
Windage Tray Included No
Finish Black Powder Coating
Gasket Or Seal Included No
Mounting Hole Quantity 25
Drain Thread Size M14 X 1.5

Additional Information

Harmonized Tariff Code (Schedule B) 8409914000
Harmonized Tariff Code (HTS) 8409915085
Warranty Time UOM MO
Country of Origin (Primary) CN
Canadian Harmonizing Tariff Code 8409910010
Warranty Time 36
UPC 00671607014211
VMRS Code 045013001
UNSPSC 26101735

Part Interchanges

Fits Vehicles

  • Volkswagen Golf SportWagen (2010-2013)
  • Volkswagen Beetle Cabrio (2010-2011)
  • Volkswagen Passat (2012-2014)
  • Volkswagen Golf (2010-2014)
  • Volkswagen Bora (2006-2010)
  • Volkswagen Rabbit (2006-2009)
  • Volkswagen Beetle (2006-2014)
  • Volkswagen Jetta (2005-2014)
