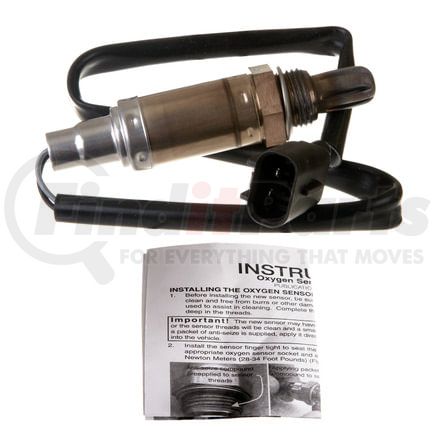

(888) 312-8812 Login SignupDELPHI ES10323 Oxygen Sensor
$7299
Limited availability at this price!
5 Day Lead Time
Get it by Tuesday, Jan 6
DELPHI ES10323 Part Description
DELPHI ES10323 Specifications
Product Attributes
| Package Contents | Oxygen Sensor, Instruction Sheet |
| Position(s) | Front, Rear. For the position specific to your vehicle, refer to the Applications. |
| Wiring Harness Length | 18.9 IN |
| Wiring Harness Length | 480.0 MM |
| Sensor Type | Non-Heated |
| Terminal Type | Blade |
| Universal Or Specific Fit | Specific |
| Band Type | Narrow |
| Wire Quantity | 2 |
| Grade Type | Regular |
| Connector Shape | Oblong |
| Terminal Quantity | 2 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Thread Diameter | 0.7 IN |
| Wrench Size | 22mm |
| Thread Size | M18x1.5 |
| Overall Length | 20.1 IN |
| Overall Length | 510.0 MM |
| Mounting Type | Threaded |
| Thread Diameter | 18.0 MM |
| Wire Gauge Measurement | 20.0 GU |
Additional Information
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 9027100000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 9027102000 |
| UPC | 00689604087893 |
| VMRS Code | 045021011 |
| UNSPSC | 41111924 |
DELPHI ES10323 Part Interchanges
| Brand | Part Number |
|---|---|
| Walker Products | 25022003 |
| Wells | SU4800, SU4813, SU4834 |
| General Motors | 94855429 |
| ACDelco | 2131156, 2131198, 2131199, 2131201, 2131204, 2131208, 2131213, 2131224, 21323 |
| NTK | 24505 |
| N/A | 138385, 138506, 1562010, 8946512380, 8946517120, 8946520250, 2342003, 2342008 |
| Standard Motor Products | SG240, SG803, SG758 |
| BorgWarner | OS1512, OS1557, OS626 |
| Oextra | REA1046 |
| Chrysler | 3236666 |
| Bosch | 0258002200, 12108, 12200, 13898 |
| Beck/Arnley | 156-2010 |
| DENSO Auto Parts | 234-2003, 234-2008 |
| Kem | 138-385, 138-506 |
| Toyota | 89465-12380, 89465-17120, 89465-20250 |
DELPHI ES10323 Fits Vehicles
- Toyota MR2 (1992-1995)
- Toyota Corolla (1995-1997)
- Toyota Celica (1992-1993)
- Geo Prizm (1995-1997)
DELPHI ES10323 Cross References
We have 3 alternatives for the ES10323 by DELPHI:
