DELPHI GN10114 Part Description
Manufacturer
Product Description

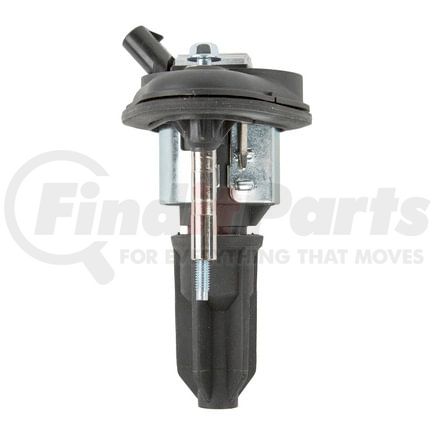

Ignition Coil
Features & Benefits
- Delphi coils provide OE performance, durability and electromagnetic capacity level requirements
- Delphi ignition coils are designed to insert power into spark plugs to ensure fast starts, consistent engine performance and optimized fuel efficiency
- Delphi uses smart winding process techniques to controls wire lengths, keeping voltage the same
- We manufacture our ignition coils with a high quality wire coating that resists imperfections that lead to failure
DELPHI GN10114 Specifications
Product Attributes
| Interface Description | 3 Pin Sealed Connector |
| Package Contents | Ignition Coil, Complete Assembly |
| Notes | L6 Fully Integrated Coil & Module. Includes Captured Bolt and Boot Asm. |
| Ignition Type | Electronic |
| Coil Type | Plug Top Coil (PTC) |
| Coil Wire Included | No |
| Oil Filled | No |
| Requires External Resistor | No |
| Terminal Type | Blade |
| Mounting Hardware Included | Yes |
| Wire Quantity | 0 |
| Grade Type | Standard Replacement |
| Mount Type | 1 Mounting Hole with 1 Bolt / Screw attached |
| Mounting Hole Quantity | 1 |
| Terminal Quantity | 3 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Voltage | 12.0 2H |
| Color | Black & Silver |
| Connector Quantity | 1 |
| Connector Shape | Elliptical |
Additional Information
| Warranty Distance UOM | DH |
| Warranty Distance | 36000 |
| Harmonized Tariff Code (Schedule B) | 8511300080 |
| Harmonized Tariff Code (HTS) | 8511300080 |
| Warranty Time UOM | MO |
| Warranty Time | 36 |
| Country of Origin (Primary) | CN |
| UPC | 00689604125717 |
| VMRS Code | 033003001 |
| UNSPSC | 26101769 |
DELPHI GN10114 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 12 56 8062 |
| Advan-tech | 8Q5 |
| Airtex | 5C1392 |
| BWD | E255, E255P |
| Beck/Arnley | 178-8390, 178-8391 |
| Belden | 702423 |
| Carquest | 26C1006, 52-1743 |
| DENSO | 673-7203 |
| DENSO Auto Parts | 673-7200 |
| Driveworks | 26342 |
| Duralast | C1395 |
| Echlin | IC414 |
| General Motors | 19300921, 12 56 8062, 19418994 |
| HITACHI | IGC0137 |
| HOLSTEIN | 2IGC0147 |
| Isuzu | 8-12568-062-0, 8-19300-921-0 |
| MasterPro Ignition | 2-50051 |
| N/A | 6737200, C642, 12568062, 8125680620, 8193009210, 1788390, UF303, 921X2003 |
| NAPA Mileage Plus | IC414SB |
| NGK SPARK PLUGS | U5080, U5080-6, 49174, 48844 |
| Original Engine Management | 50051 |
| PRENCO | 36-8128 |
| Richporter | C-642 |
| SPECTRA PREMIUM | C642M6 |
| STANDARD IGNITION | UF303 |
| Saab | 19300921 |
| Spectra Premium | C-642 |
| Standard Motor Products | UF303T, UF-303 |
| VEMO | V51-70-0033 |
| WALKER PRODUCTS | 921-2003-6, 928-4054-5, 928-4055-6 |
| WPS World Power Systems | CUF303 |
| Walker Products | 921-2003 |
| Wells | C1395 |
DELPHI GN10114 Fits Vehicles
- Chevrolet Trailblazer EXT (2002-2005)
- GMC Envoy XUV (2004-2005)
- GMC Envoy XL (2002-2005)
- Isuzu i-370 (2007)
- Isuzu i-290 (2007-2008)
- Isuzu i-280 (2006)
- Isuzu i-350 (2006)
- Hummer H3 (2006)
- Saab 9-7x (2005)
- Chevrolet Colorado (2004-2006)
- GMC Canyon (2004-2006)
- Buick Rainier (2004-2005)
- Oldsmobile Bravada (2002-2004)
- GMC Envoy (2002-2005)
- Chevrolet Trailblazer (2002-2005)
- Isuzu Ascender (2003-2005, 2008)
