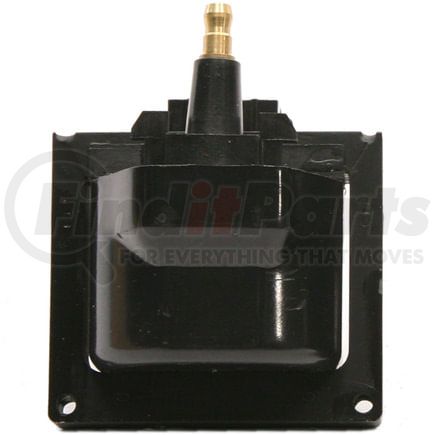

(888) 312-8812 Login SignupDELPHI GN10048 Ignition Coil
Tap to view 1 more
MSRP: $85.35
$4099
Save $44.36
Limited availability at this price!
In Stock
Get it by Wednesday, Feb 25
DELPHI GN10048 Part Description
Manufacturer
Product Description
Ignition Coil
Features & Benefits
- Delphi coils provide OE performance, durability and electromagnetic capacity level requirements
- Delphi ignition coils are designed to insert power into spark plugs to ensure fast starts, consistent engine performance and optimized fuel efficiency
- Delphi uses smart winding process techniques to controls wire lengths, keeping voltage the same
- We manufacture our ignition coils with a high quality wire coating that resists imperfections that lead to failure
DELPHI GN10048 Specifications
Product Attributes
| Notes | Coil without Module |
| Interface Description | 4 Female Pins Unsealed Connector & 1 HV Terminal |
| Package Contents | Ignition Coil |
| Ignition Type | Standard |
| Coil Type | HEI |
| Coil Wire Included | No |
| Oil Filled | No |
| Requires External Resistor | No |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Wire Quantity | 0 |
| Grade Type | Standard Replacement |
| Mount Type | 2 Mounting Holes |
| Mounting Hole Quantity | 2 |
| Terminal Quantity | 4 |
| Terminal Gender | Female |
| Voltage | 12.0 2H |
| Length | 3.43 IN |
| Width | 2.84 IN |
| Height | 2.65 IN |
| Connector Gender | Female |
| Length | 87.2 MM |
| Width | 72.1 MM |
| Height | 67.4 MM |
| Color | Black |
| Connector Quantity | 2 |
| Connector Shape | Elliptical |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8511300080 |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8511300080 |
| Warranty Distance UOM | DH |
| Warranty Distance | 36000 |
| Warranty Time UOM | MO |
| Warranty Time | 36 |
| UPC | 00689604124734 |
| VMRS Code | 033003001 |
| UNSPSC | 26101769 |
DELPHI GN10048 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | D503A, D535, D573, D575 |
| Advan-tech | 6A1 |
| Airtex | 5C1029, 5C1081 |
| BWD | E46, E46P, E69 |
| Beck/Arnley | 178-8193 |
| BorgWarner | E46, E46P |
| Carquest | 26C1037 |
| Chrysler | 8350 1871 |
| Driveworks | 26260 |
| Duralast | C-846 |
| Echlin | IC29, IC46 |
| General Motors | 10477208, 10477944, 1115315, 1115317, 1115466, 1115468, 12498334, 19418995 |
| HITACHI | IGC0101 |
| HOLSTEIN | 2IGC0026 |
| IMC | CLS1061 |
| Isuzu | 8-01115-466-0, 8-01115-315-0, 8-12498-334-0, 8-19418-995-0 |
| Magneti Marelli | 1AMIC00004 |
| MasterPro Ignition | 25198 |
| N/A | C846, 00243, D544, D555, E547, 8011153150, 8011154660, 8124983340, 34033, 34466, 34467, 77006, 342G, 1788179, 1788193, DR37, 3506, DR186, DR186CS, 218246, 218287, 218190, 218205, 920X1004 |
| NAPA Mileage Plus | IC46SB, IC29SB |
| NGK | U1054 |
| NGK SPARK PLUGS | U1054, 49035 |
| NTK | U1054 |
| Original Engine Management | 5198 |
| PRENCO | 36-1125 |
| STANDARD IGNITION | DR37 |
| Spectra Premium | C-611, C-641 |
| Standard Motor Products | DR-37T, DR-37, DR-43 |
| VEMO | V51700012 |
| WPS World Power Systems | CDR37 |
| Walker Products | 920-1004 |
| Wells | C-846, C963 |
DELPHI GN10048 Fits Vehicles
- Chevrolet Commercial Chassis (1991-1994)
- Oldsmobile Custom Cruiser (1991-1992)
- Pontiac Trans Sport (1990-1995)
- Pontiac T1000 (1985-1987)
- Pontiac J2000 Sunbird (1985)
- Pontiac Sunbird (1986-1991)
- Pontiac Parisienne (1985-1986)
- Pontiac LeMans (1988-1993)
- Pontiac Grand Prix (1986-1987)
- Pontiac Grand Am (1985-1989)
- Pontiac Firebird (1985-1995)
- Pontiac Fiero (1985-1988)
- Pontiac Bonneville (1986)
- Pontiac 6000 (1985-1986)
- Oldsmobile Silhouette (1990-1994)
- Oldsmobile Firenza (1985-1988)
- Oldsmobile Cutlass Ciera (1985-1986)
- Oldsmobile Calais (1985-1986)
- Oldsmobile Bravada (1991-1994)
- Geo Storm (1990-1993)
- GMC Yukon (1992-1995)
- GMC V3500 (1987-1991)
- GMC V2500 Suburban (1987-1991)
- GMC V2500 (1987)
- GMC V1500 Suburban (1987-1991)
- GMC V1500 (1987)
- GMC Safari (1985-1995)
- GMC Typhoon (1992-1993)
- GMC Syclone (1991)
- GMC Sonoma (1991-1995)
- GMC S15 (1985-1990)
- GMC S15 Jimmy (1985-1991)
- GMC R3500 (1987-1991)
- GMC R2500 Suburban (1987-1991)
- GMC R2500 (1987-1989)
- GMC R1500 Suburban (1987-1991)
- GMC R1500 (1987)
- GMC P3500 (1987-1997)
- GMC P2500 (1987-1989)
- GMC K3500 (1988-1995)
- GMC K2500 Suburban (1992-1995)
- GMC K2500 (1988-1995)
- GMC K1500 Suburban (1992-1995)
- GMC K1500 (1988-1995)
- GMC Jimmy (1987-1995)
- GMC G3500 (1987-1996)
- GMC G2500 (1987-1995)
- GMC G1500 (1987-1995)
- GMC Caballero (1985-1987)
- GMC C3500 (1988-1995)
- GMC C2500 Suburban (1992-1995)
- GMC C2500 (1988-1995)
- GMC C1500 Suburban (1992-1995)
- GMC C1500 (1988-1995)
- Chevrolet V3500 (1989-1991)
- Chevrolet V30 (1987-1988)
- Chevrolet V2500 Suburban (1989-1991)
- Chevrolet V20 (1987)
- Chevrolet V20 Suburban (1987-1988)
- Chevrolet V1500 Suburban (1989-1991)
- Chevrolet V10 Suburban (1987-1988)
- Chevrolet V10 (1987)
- Chevrolet Tahoe (1995)
- Chevrolet Spectrum (1987-1988)
- Chevrolet S10 (1985-1995)
- Chevrolet S10 Blazer (1985-1994)
- Chevrolet R3500 (1989-1991)
- Chevrolet R30 (1987-1988)
- Chevrolet R2500 (1989)
- Chevrolet R2500 Suburban (1989-1991)
- Chevrolet R20 Suburban (1987-1988)
- Chevrolet R20 (1987-1988)
- Chevrolet R1500 Suburban (1989-1991)
- Chevrolet R10 Suburban (1987-1988)
- Chevrolet R10 (1987)
- Chevrolet P30 (1987-1997)
- Chevrolet P20 (1987-1989)
- Chevrolet Monte Carlo (1985-1988)
- Chevrolet Lumina APV (1990-1995)
- Chevrolet LLV (1987-1993)
- Chevrolet K3500 (1988-1995)
- Chevrolet K2500 Suburban (1992-1995)
- Chevrolet K2500 (1988-1995)
- Chevrolet K1500 Suburban (1992-1995)
- Chevrolet K1500 (1988-1995)
- Chevrolet Impala (1985, 1994-1995)
- Chevrolet G30 (1987-1996)
- Chevrolet G20 (1987-1995)
- Chevrolet G10 (1987-1995)
- Chevrolet El Camino (1985-1987)
- Chevrolet Corvette (1992-1995)
- Chevrolet Citation II (1985)
- Chevrolet Chevette (1985-1987)
- Chevrolet Celebrity (1985-1986)
- Chevrolet Cavalier (1985-1986)
- Chevrolet Caprice (1985-1995)
- Chevrolet Camaro (1985-1995)
- Chevrolet C3500 (1988-1995)
- Chevrolet C2500 Suburban (1992-1995)
- Chevrolet C2500 (1988-1995)
- Chevrolet C1500 Suburban (1992-1995)
- Chevrolet C1500 (1988-1995)
- Chevrolet Blazer (1987-1995)
- Chevrolet Astro (1985-1995)
- Cadillac Commercial Chassis (1992-1995)
- Cadillac Brougham (1990-1992)
- Cadillac Fleetwood (1993-1995)
- Cadillac Cimarron (1985-1986)
- Buick Somerset Regal (1985)
- Buick Somerset (1986)
- Buick Skylark (1985-1986)
- Buick Skyhawk (1985-1988)
- Buick Commercial Chassis (1991-1995)
- Buick Roadmaster (1991-1995)
- Buick Century (1985-1986)
- Jeep Wagoneer (1985-1986)
- Jeep Comanche (1986)
- Jeep Cherokee (1985-1986)
- Isuzu Trooper (1989-1991)
- Isuzu Stylus (1991-1993)
- Isuzu Rodeo (1991-1992)
- Isuzu Pickup (1991-1994)
- Isuzu Impulse (1990-1992)
- Isuzu I-Mark (1987-1989)
