(888) 312-8812 Login SignupDELPHI HP10074 Fuel Pump Hanger Assembly
MSRP: $441.86
$28199
Save $159.87
Limited availability at this price!
In Stock
Get it by Thursday, Jul 9
DELPHI HP10074 Part Description
Manufacturer
Product Description

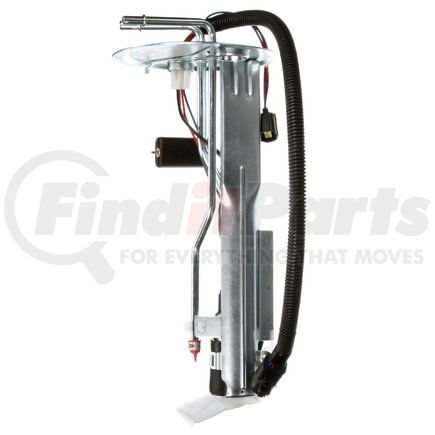

Fuel Pump Hanger Assembly
Features & Benefits
- Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
- Delphi pumps are designed to operate under extreme temperatures with quick engine starts
- Metal tubes in Delphi hangers are routed so as to not contact the tank at any point eliminating noise and vibration during vehicle operation
- Empty float height and float retention matches OE specifications and guarantees correct gas gauge reading
- Restores fast pressure performance and system integrity, translating to better pumping through less energy
- Lower failure rates due to its innovative design and durability
- Part is validated, tested and matched to the right vehicle application
- Lower amperage draws less load on vehicle's electrical system
- Always be sure to check and clean fuel tank to avoid unnecessary returns
DELPHI HP10074 Specifications
Product Attributes
| Package Contents | Fuel Pump Hanger Assembly w/Float Arm, Seal, (2) Retainer Clips, Instruction Sheet |
| Fuel Level Sender Assembly Included | Yes |
| Item Grade | Standard Replacement |
| System Pressure | 44 psi |
| Outlet Outside Diameter | 0.375 IN |
| Voltage | 12.0 2H |
| Fuel Type | Gas |
| Maximum Pressure | 73.0 PS |
| Terminal Type | Pin |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 7 |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick Connect |
| Outlet Quantity | 2 |
| In Tank or External | In Tank |
| Resistance Ohms Empty | 16.0 82 |
| Resistance Ohms Full | 160.0 82 |
| Internal Or External Strainer | External |
| Pump Type | Electric |
| Average Current Draw | 6.0 68 |
| Average Flow Rating | 24.0 GPH |
| Material | Metal |
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Mounting Hardware Included | No |
| Grade Type | Premium |
| Connector Shape | Round |
| Lock Ring Included | No |
| Connector Gender | Female |
| Inlet Quantity | 1 |
| Fuel Pump Included | Yes |
| Gasket Or Seal Material | Nitrile Rubber |
| Minimum Pressure | 44 PS |
| Pump Design | Turbine |
| Fuel Tank Pressure Sensor Included | No |
| Universal Or Specific Fit | Specific |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Harmonized Tariff Code (HTS) | 8413309030 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | MX |
| UPC | 00689604196946 |
| VMRS Code | 044003257 |
| UNSPSC | 40151532 |
DELPHI HP10074 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | EP2046H, EP2049H, EP2157H |
| AUTOBEST | F1209A |
| Airtex | E2201S, E2254, E2297S, E2471, E2253S |
| AutoZone | DHP10074 |
| Bosch | 67108, C67107, 67107, 67265, 69131, 69132 |
| CARTER FUEL PUMPS | P74811S, P74874S |
| Carquest | HS3496107 |
| Carter | P74811S, P74874S, P75048S, P74177 |
| DENSO Auto Parts | 951-0008, 953-4085, 953-4118 |
| EVO Driveline | RE0312S, AFS0312S, AFS0887P, AFS0992P, RE0887P, RE0992P |
| Ford | F75U 9H307-KD, F75U 9H307-MD, F75Z 9H307-KB, F75Z 9H307-KD, F75Z 9H307-KE, XL1U 9H307-AB, XL1Z 9H307-AB, XL1Z 9H307-AC, XL1Z 9H307-DC |
| GMB | 525-6450 |
| Motorcraft | PFS-101, PFS-50, PFS-97 |
| N/A | 9510008, 9534085, 9534118, E2158, E2226, E2255S, E2298S, E2741, F75U9H307KD, F75U9H307MD, F75Z9H307KD, F75Z9H307KE, XL1U9H307AB, XL1Z9H307AB, XL1Z9H307AC, XL1Z9H307DC, PFS101, PFS50, PFS97, USEP2201S, F1209A, C0054H, USEP2297S, C0086H, 4010116, 4010218, 4010220 |
| Pierce | P2540S, P452M |
| Precision Fuel | A30090, A30148, A30161, E16006, E16076 |
| Spectra Premium | SP2297H, SP1113, SP1235, SP2083H, SP2253H |
| TYC | 150256-A |
| VEMO | V99090002 |
DELPHI HP10074 Fits Vehicles
- Lincoln Navigator (1998-2002)
- Ford Expedition (1997-2002)
