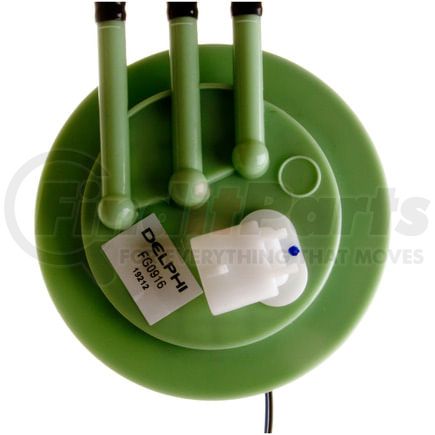

(888) 312-8812 Login SignupDELPHI FG0916 Fuel Pump Module Assembly
MSRP: $369.05
$23549
Save $133.56
Limited availability at this price!
In Stock
Get it by Thursday, Feb 19
DELPHI FG0916 Part Description
Manufacturer
Product Description
Fuel Pump Module Assembly
Features & Benefits
- Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
- Empty float height and float retention matches OE specifications and guarantees correct gas gauge reading
- Lower amperage draws less load on vehicle's electrical system
- Part is validated, tested and matched to the right vehicle application
- Always be sure to check and clean fuel tank to avoid unnecessary returns
- Lower failure rates due to its innovative design and durability
DELPHI FG0916 Specifications
Product Attributes
| Fuel Level Sender Assembly Included | Yes |
| Vapor Pressure Sensor | No |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Seal, Instruction Sheet |
| Item Grade | Standard Replacement |
| System Pressure | 40 psi |
| Outlet Outside Diameter | 0.375 IN |
| Voltage | 12 2H |
| Fuel Type | Gas |
| Regulator Included | No |
| Maximum Pressure | 80 PS |
| Terminal Type | Blade |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick Connect |
| Outlet Quantity | 3 |
| In Tank or External | In Tank |
| Resistance Ohms Empty | 678 82 |
| Resistance Ohms Full | 20 82 |
| Internal Or External Strainer | External |
| Pump Type | Electric |
| Average Current Draw | 5 68 |
| Average Flow Rating | 26 GPH |
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Mounting Hardware Included | No |
| Grade Type | Premium |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Housing Material | Plastic |
| Installation Warnings | No |
| Connector Gender | Female |
| Fuel Filter Included | No |
| Gasket Or Seal Material | Nitrile Rubber |
| Minimum Pressure | 40 PS |
| Wire Harness Included | No |
| Pump Design | Turbine |
| Fuel Tank Pressure Sensor Included | No |
| Universal Or Specific Fit | Specific |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Harmonized Tariff Code (HTS) | 8413309030 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TH |
| UPC | 00689604205716 |
| VMRS Code | 044003258 |
| UNSPSC | 25172409 |
DELPHI FG0916 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 21015152 |
| AUTOBEST | F2962A |
| Airtex | E3951M, E3545 |
| AutoZone | DFG0916 |
| Bosch | 67356, 67487, 69251 |
| CARTER FUEL PUMPS | P74838M |
| Carter | P74838M, P76540 |
| EVO Driveline | RE0436S, AFS0436S |
| GMB | 530-2291 |
| General Motors | 21015152 |
| N/A | USEP3951M, D0352M, 4010178 |
| Pierce | P447M |
| Precision Fuel | A30085, E16082 |
| Spectra Premium | SP3951M, SP1238 |
DELPHI FG0916 Fits Vehicles
- Saturn SW2 (1998-2001)
- Saturn SW1 (1998-1999)
- Saturn SL2 (1998-2002)
- Saturn SL1 (1998-2002)
- Saturn SL (1998-2002)
- Saturn SC2 (1998-2002)
- Saturn SC1 (1998-2002)
