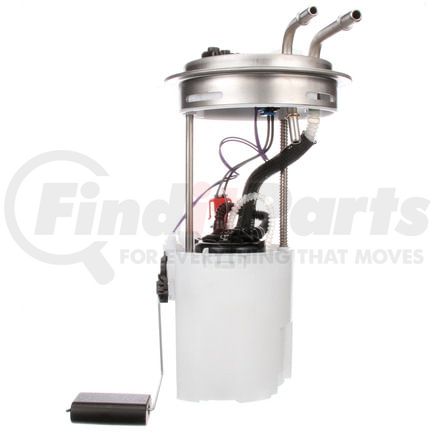

DELPHI FG0816 Fuel Pump Module Assembly

★★★★★ (0)

$335.99

Limited availability at this price!

In Stock

Get as soon as Monday, Nov 23
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details

DELPHI FG0816 Part Description

Manufacturer

DELPHI

Product Description

Fuel Pump Module Assembly

Features & Benefits

  • Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
  • Empty float height and float retention matches OE specifications and guarantees correct gas gauge reading
  • Lower amperage draws less load on vehicle's electrical system
  • Part is validated, tested and matched to the right vehicle application
  • Always be sure to check and clean fuel tank to avoid unnecessary returns
  • Lower failure rates due to its innovative design and durability

DELPHI FG0816 Specifications

Product Attributes

Fuel TypeFlex
Package ContentsFuel Pump Module Assembly w/Float Arm, Seal, Instruction Sheet
Fuel Level Sender Assembly IncludedYes
Item GradeStandard Replacement
System Pressure55 psi
Vapor Pressure SensorNo
Outlet Outside Diameter0.313 IN
Voltage12 2H
Regulator IncludedYes
Maximum Pressure62 PS
Terminal TypeBlade
Gasket Or Seal IncludedYes
Terminal Quantity4
Lock Ring IncludedNo
Terminal GenderMale
Strainer IncludedYes
Inlet TypeStrainer
Outlet TypeQuick Connect
Outlet Quantity2
In Tank or ExternalIn Tank
Resistance Ohms Empty250 82
Resistance Ohms Full40 82
Internal Or External StrainerInternal
Pump TypeElectric
Average Current Draw11 68
Average Flow Rating29 GPH
Fuel Sending Unit IncludedYes
Negative GroundNo
Fuel TypeFlex
Mounting Hardware IncludedNo
Grade TypePremium
Connector Quantity1
Connector ShapeOval
Housing MaterialPlastic
Installation WarningsNo
Connector GenderFemale
Fuel Filter IncludedYes
Gasket Or Seal MaterialNitrile Rubber
Minimum Pressure55 PS
Wire Harness IncludedNo
Pump DesignTurbine
Fuel Tank Pressure Sensor IncludedYes
Universal Or Specific FitSpecific

Additional Information

Harmonized Tariff Code (Schedule B)8413309000
Harmonized Tariff Code (HTS)8413309030
Warranty SpecialLimited
Warranty Special UOMLT
Country of Origin (Primary)TH
UPC00689604200513
VMRS Code044003258
UNSPSC25172409

DELPHI FG0816 Cross References

BrandPart Number
ACDelco88965802, M10158, MU1683
AUTOBESTF2716A
AirtexE3705M
AutoZoneCFG0816
Bosch67568
CONTINENTAL AGFP22040S
CarquestM2520857
CarterP76273M, P77007M
GMB530-2345
General Motors19168419, 19208961, 88965802, 19168418
Magneti Marelli1AMFP00093
N/A19208960, USEP3705M, F2716A, 4010523
Precision FuelA40000
Spectra PremiumSP6087M
TYC150285-A
UROGM0517281
VDOFP22040S

DELPHI FG0816 Fits Vehicles

  • Chevrolet Tahoe (2005-2007)
  • GMC Yukon (2005-2007)
