DELPHI FG0212 Part Description
Manufacturer
Product Description

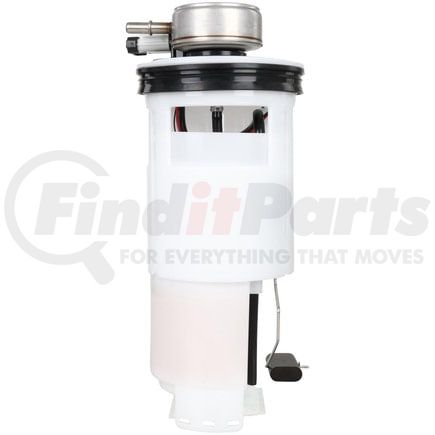

Fuel Pump Module Assembly
Features & Benefits
- Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
- Empty float height and float retention matches OE specifications and guarantees correct gas gauge reading
- Lower amperage draws less load on vehicle's electrical system
- Part is validated, tested and matched to the right vehicle application
- Always be sure to check and clean fuel tank to avoid unnecessary returns
- Lower failure rates due to its innovative design and durability
DELPHI FG0212 Specifications
Product Attributes
| Fuel Level Sender Assembly Included | Yes |
| Item Grade | Standard Replacement |
| System Pressure | 44 psi |
| Vapor Pressure Sensor | No |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Instruction Sheet |
| Outlet Outside Diameter | 0.375 IN |
| Voltage | 12 2H |
| Fuel Type | Gas |
| Regulator Included | Yes |
| Maximum Pressure | 80 PS |
| Terminal Type | Blade |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick Connect |
| Outlet Quantity | 2 |
| In Tank or External | In Tank |
| Resistance Ohms Empty | 113 82 |
| Resistance Ohms Full | 3 82 |
| Internal Or External Strainer | External |
| Pump Type | Electric |
| Average Current Draw | 5 68 |
| Average Flow Rating | 55 GPH |
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Mounting Hardware Included | No |
| Wire Quantity | 4 |
| Grade Type | Premium |
| Connector Quantity | 1 |
| Connector Shape | Rectangle |
| Housing Material | Plastic |
| Installation Warnings | No |
| Connector Gender | Female |
| Fuel Filter Included | Yes |
| Gasket Or Seal Material | Nitrile Rubber |
| Minimum Pressure | 44 PS |
| Wire Harness Included | Yes |
| Pump Design | Turbine |
| Fuel Tank Pressure Sensor Included | No |
| Universal Or Specific Fit | Specific |
Additional Information
| Harmonized Tariff Code (HTS) | 8413309030 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Country of Origin (Primary) | TH |
| UPC | 00689604061497 |
| VMRS Code | 044003258 |
| UNSPSC | 25172409 |
DELPHI FG0212 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | MU140 |
| AUTOBEST | F3004A, F3115A |
| Airtex | E7093M, E7104M |
| AutoZone | DFG0212 |
| Bosch | 67641 |
| CARTER FUEL PUMPS | P74710M |
| Carquest | M212890 |
| Carter | P74710M, P76658M |
| Chrysler | 4897426AA, 4897426AB, 52102047, 4798 822 , 4897 426AD, 4897 426AE, 4798 822 |
| DENSO | 953-3011 |
| DENSO Auto Parts | 953-3011 |
| DORMAN | 2630345 |
| EVO Driveline | AFS0303S, RE0303S |
| GMB | 520-2110 |
| General Motors | 25313289 |
| Kem | EFP7093M |
| MasterPro Fuel Pumps | MPA30030 |
| N/A | 9533011, 4798822, 4897426AD, P74699R, USEP7093M, F3004A, 402-P7093M, C0423M, P74703M, R74699M, C0424M, 4010082, 4010813 |
| Precision Fuel | A30413 |
| Spectra Premium | SP6140M, SP1126 |
| TruGrade | D5321026 |
| URO | DG0517332 |
DELPHI FG0212 Fits Vehicles
- Dodge Ram 3500 (1996-1997)
- Dodge Ram 2500 (1996-1997)
- Dodge Ram 1500 (1996-1997)
