(888) 312-8812 Login SignupDELPHI FG0151 Fuel Pump Module Assembly
MSRP: $587.95
$28799
Save $299.96
Limited availability at this price!
In Stock
Get it by Friday, Feb 20
DELPHI FG0151 Part Description
Manufacturer
Product Description

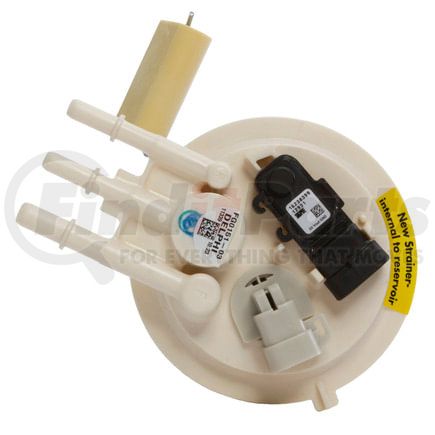

Fuel Pump Module Assembly
Features & Benefits
- Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
- Empty float height and float retention matches OE specifications and guarantees correct gas gauge reading
- Lower amperage draws less load on vehicle's electrical system
- Part is validated, tested and matched to the right vehicle application
- Always be sure to check and clean fuel tank to avoid unnecessary returns
- Lower failure rates due to its innovative design and durability
DELPHI FG0151 Specifications
Product Attributes
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Seal, Splices, Wire Harness, Instruction Sheet |
| System Pressure | 62 psi |
| Item Grade | Standard Replacement |
| Vapor Pressure Sensor | Yes |
| Fuel Level Sender Assembly Included | Yes |
| Outlet Outside Diameter | 0.375 IN |
| Voltage | 12 2H |
| Fuel Type | Gas |
| Regulator Included | No |
| Maximum Pressure | 109 PS |
| Terminal Type | Pin |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick Connect |
| Outlet Quantity | 3 |
| In Tank or External | In Tank |
| Resistance Ohms Empty | 40 82 |
| Resistance Ohms Full | 250 82 |
| Internal Or External Strainer | External |
| Pump Type | Electric |
| Average Current Draw | 9 68 |
| Average Flow Rating | 26 GPH |
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Mounting Hardware Included | No |
| Wire Quantity | 4 |
| Grade Type | Premium |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Housing Material | Plastic |
| Installation Warnings | No |
| Connector Gender | Female |
| Fuel Filter Included | No |
| Gasket Or Seal Material | Nitrile Rubber |
| Minimum Pressure | 62 PS |
| Wire Harness Included | Yes |
| Pump Design | Turbine |
| Fuel Tank Pressure Sensor Included | Yes |
| Universal Or Specific Fit | Specific |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Harmonized Tariff Code (HTS) | 9026102080 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TH |
| UPC | 00689604060889 |
| VMRS Code | 044003258 |
| UNSPSC | 25172409 |
DELPHI FG0151 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | MU1785, MU227, MU1727 |
| AUTOBEST | F2984A |
| Airtex | E3973M |
| AutoZone | DFG0151 |
| Bosch | 67369 |
| CARTER FUEL PUMPS | P74792M |
| Carter | P74793M, P74792M |
| DENSO | 953-5080 |
| DENSO Auto Parts | 953-5080 |
| DORMAN | 2630382, 2630011 |
| GMB | 530-2310 |
| General Motors | 19180096, 25323831, 19331279 |
| Magneti Marelli | 1AMFP00198 |
| Master Parts Division | E3973M |
| N/A | 9535080, USEP3973M, 4010159 |
| Precision Fuel | A33006 |
| Spectra Premium | SP6227M |
DELPHI FG0151 Fits Vehicles
- Pontiac Grand Prix (1998-2000)
- Pontiac Bonneville (1998)
- Buick Regal (1998-1999)
